SELECT A DIAGRAM

Diagram for Cabinet Parts
Cabinet Parts

Diagram for Cabinet Trim Parts
Cabinet Trim Parts

Diagram for Freezer Door Parts
Freezer Door Parts

Diagram for Freezer Liner And Icemaker Parts
Freezer Liner And Icemaker Parts

Diagram for Freezer Shelf Parts
Freezer Shelf Parts

Diagram for Lower Unit And Tube Parts
Lower Unit And Tube Parts

No Diagram Image Available
Optional Parts (not Included)

Diagram for Refrigerator Door Parts
Refrigerator Door Parts

Diagram for Refrigerator Liner And Control Parts
Refrigerator Liner And Control Parts

Diagram for Refrigerator Shelf Parts
Refrigerator Shelf Parts

Diagram for Top Grille And Unit Cover Parts
Top Grille And Unit Cover Parts

Diagram for Upper Unit Parts
Upper Unit Parts


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARIF06CCFE9BD0F0FDB975806FEDA58D816 Cabinet (not Serviced) Appelez-nous -
2 W11490590 Cover, Fill Tube Appelez-nous -
3 2318189 Tray, Filter Drip Special Order $ 133.86

4 WPW10138054 Roller Assembly   (Replaces: W10138054) Special Order $ 40.81

5 W10860229 Base Assembly, Support (fc, Left Hand)   (Replaces: W10279275) Special Order $ 343.65

6 W11238395 Cap, Water Filter (black)   (Replaces: W10797527) In-Stock Immediately $ 45.61

7 W10839844 Bracket, Grill Mounting   (Replaces: 2307640) Special Order $ 38.93

8 W11830729 Trim, Grille Top   (Replaces: W11788319) Special Order $ 132.84

9 WPW10121140 Housing, Water Filter   (Replaces: W10121140) In-Stock Immediately $ 243.77

10 2307584 Grommet, Crossover Tube Special Order $ 21.06

11 W11474472 Screw   (Replaces: W10162602) In-Stock Immediately $ 7.77

12 W10121145 Filter, Water Appelez-nous -
13 W11225845 Valve, Solenoid   (Replaces: W10574769) In-Stock Immediately $ 178.99

14 2006841 Ring, Retainer Special Order $ 83.39

15 W11826025 Top Hinge Assembly (left Hand)   (Replaces: W11788257) Appelez-nous -
16 W11755873 Bracket, Filter   (Replaces: W11695780) Special Order $ 72.30

17 WP489464 Screw   (Replaces: W10001250) In-Stock Immediately $ 7.54

18 W11830704 Cabinet Trim (silver, Left Side)   (Replaces: W11788283) Appelez-nous -
19 W11830705 Cabinet Trim (silver, Right Side)   (Replaces: W11788285) Appelez-nous -
20 W10619291 Shield, Valve Electrical Appelez-nous -
21 W10004860 Screw In-Stock Immediately $ 13.95

22 W11830698 Wire Assembly, Water Valve   (Replaces: W11787782) Appelez-nous -
23 2215612 Cover, Air Duct Appelez-nous -
24 W11830700 Valve Bracket   (Replaces: W11782184) Appelez-nous -
25 W10691533 Bottom Hinge Assembly (left Hand) Special Order $ 562.46

26 2320559 Support, Valve Special Order $ 79.91

27 W11721628 Screw   (Replaces: W11370632) In-Stock Immediately $ 13.30

28 W10859915 Skirt, Bottom Grille   (Replaces: W10188551) Special Order $ 224.36

29 00487294 Screw   (Replaces: 487294) Special Order $ 157.58

30 W11739148 Grille, Bottom (black)   (Replaces: W11695788) Special Order $ 193.13

31 W10663352 Clip Special Order $ 19.72

32 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 10.68

33 WP1163283 Screw   (Replaces: 1163283) Special Order $ 6.80

34 2006617 Bracket, Base Support (rear) Appelez-nous -
35 W11826028 Switch Cover (left/right)   (Replaces: W11813708) Appelez-nous -
36 W10635851 Tube, Filter Outlet Special Order $ 79.71

37 W10780213 Wire Assembly, Switch Special Order $ 117.82

38 WP2260503B Button, Water Filter (black)   (Replaces: 2260503B) Special Order $ 68.78

39 W11826027 Rocker Switch   (Replaces: W11790436) Appelez-nous -
40 W11678575 Locking Ring (5/16)   (Replaces: W11175631) Special Order $ 13.41

41 W11826104 Installation Block   (Replaces: W11805383) Appelez-nous -
42 2005032 Leveler, Adjustable In-Stock Immediately $ 180.06

43 2005433 Spacer, Door Skin (top) Special Order $ 21.00

44 W11624204 Screw   (Replaces: 486194) Special Order $ 13.25

45 W11798413 Heater, Fill Tube   (Replaces: W11771383) Appelez-nous -
46 W11830701 Waterline, Customer Connect   (Replaces: W11783381) Appelez-nous -
47 W11662302 Assembly, Water Inlet Tube   (Replaces: 2314049) Appelez-nous -
48 WP1106508 Gasket, Seal   (Replaces: 1106508) In-Stock Immediately $ 9.39

49 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 7.56

50 W11826102 Door Arm Insert (top)   (Replaces: W11788316) Appelez-nous -
W11826024 Top Hinge Assembly (right Hand)   (Replaces: W11788258) Special Order $ 458.56

W11845359 Template Panels Bir Sxs 48   (Replaces: W11807115) Appelez-nous -
W11826101 Panel Installation Kit   (Replaces: W11797883) Appelez-nous -
ARI7C4B781E09F4C135E8A56A812FBF5A4D Following Parts Not Illustrated Appelez-nous -
W10860448 Base Assembly, Support (rc, Right Hand)   (Replaces: W10138423) In-Stock Immediately $ 344.70

W11830706 Rocker Switch   (Replaces: W11803611) Appelez-nous -
W10691534 Bottom Hinge Assembly (right Hand) In-Stock Immediately $ 589.72

ARI744A39619562C01DE39E694D1CE8F7D9 (freezer) Appelez-nous -
ARIC467EA2065EBD6EE51D04A55E53CAB77 (refrigerator) Appelez-nous -
W11676611 Locking Ring (1/4)   (Replaces: W11175632) Special Order $ 13.40

W11845356 Template Grille Bir   (Replaces: W11807111) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

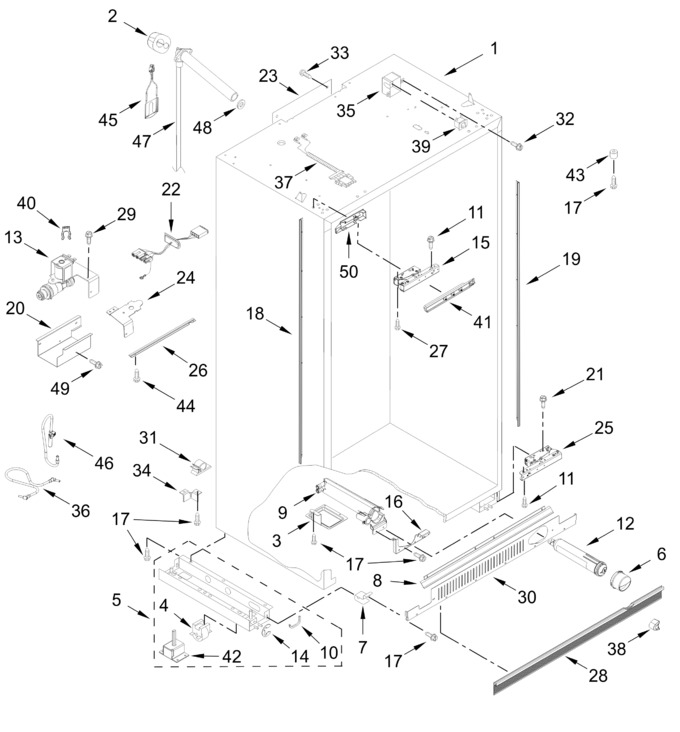

Diagram for KBSN748TPA00
