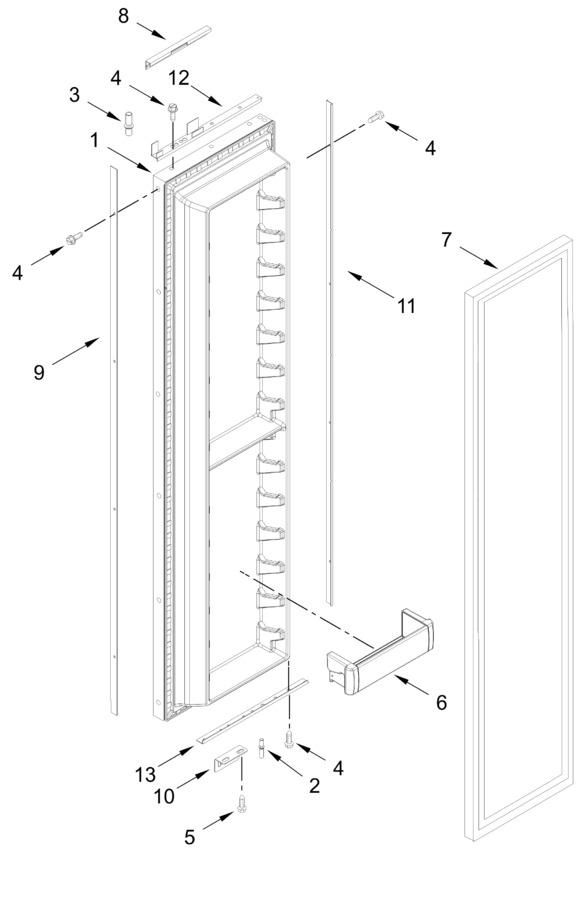

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11788280		Freezer Door Assembly		Appelez-nous	-
2	W11337869		Pin, Bottom Door				$ 64.91
3	W10234194		Pin, Top Door				$ 17.66
4	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
5	WPW10142233		Screw   (Replaces: W10142233)				$ 8.93
6	W11627399		Bin, Shallow Door   (Replaces: W11408940)				$ 183.24
7	W11625072		Gasket, Door (grey)   (Replaces: W10760884)				$ 388.83
8	W11830728		Door Cover, Top (left Hand)   (Replaces: W11788363)		Appelez-nous	-
9	W11830726		Door Trim (fc Handle Side)   (Replaces: W11788361)		Appelez-nous	-
10	W11826030		Panel Mounting Bracket   (Replaces: W11788355)		Appelez-nous	-
11	W11830722		Door Trim (hinge Side)   (Replaces: W11788364)		Appelez-nous	-
12	W11830724		Door Trim, Fc (top)   (Replaces: W11788353)		Appelez-nous	-
13	W11830725		Door Trim, Fc (bottom)   (Replaces: W11788352)		Appelez-nous	-
