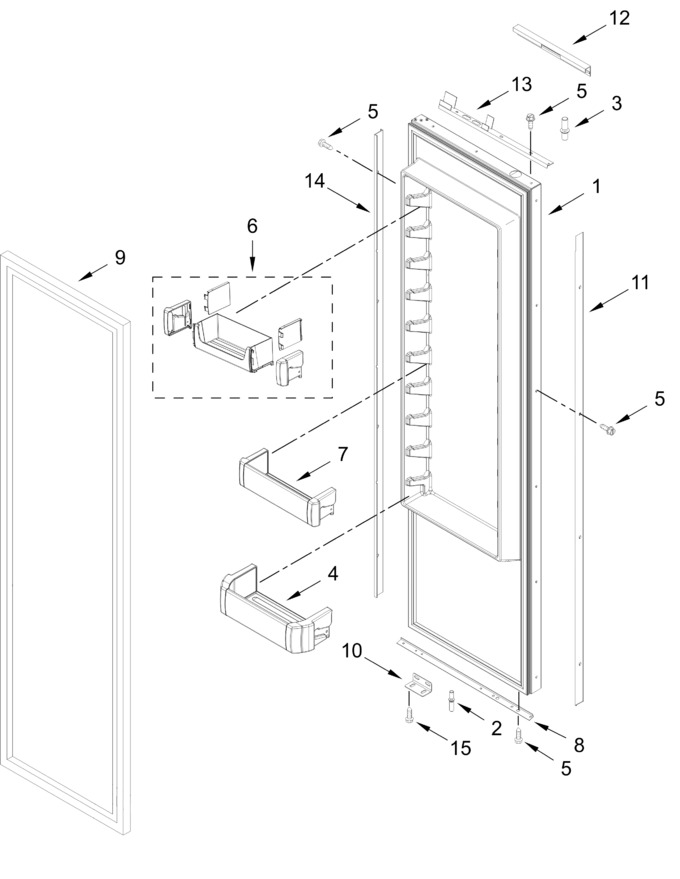

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11788281		Refrigerator Door Assembly		Appelez-nous	-
2	W11337869		Pin, Bottom Door				$ 64.91
3	W10234194		Pin, Top Door				$ 17.66
4	W11627397		Bin, Gallon Door   (Replaces: W11408930)				$ 185.59
5	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
6	W11627396		Bin Assembly, Top Door   (Replaces: W11610618)				$ 185.14
7	W11627398		Bin, Shallow Door   (Replaces: W11408938)				$ 184.01
8	W11830720		Door Trim, Rc (bottom)   (Replaces: W11788351)		Appelez-nous	-
9	W11625077		Gasket, Door (grey)   (Replaces: W10760886)				$ 385.91
10	W11826030		Panel Mounting Bracket   (Replaces: W11788355)		Appelez-nous	-
11	W11830721		Door Trim, (rc Handle Side)   (Replaces: W11788354)		Appelez-nous	-
12	W11830723		Door Cover, Top (right Hand)   (Replaces: W11788359)		Appelez-nous	-
13	W11830719		Door Trim, Rc (top)   (Replaces: W11788362)		Appelez-nous	-
14	W11830722		Door Trim (hinge Side)   (Replaces: W11788364)		Appelez-nous	-
15	WPW10142233		Screw   (Replaces: W10142233)				$ 8.93
