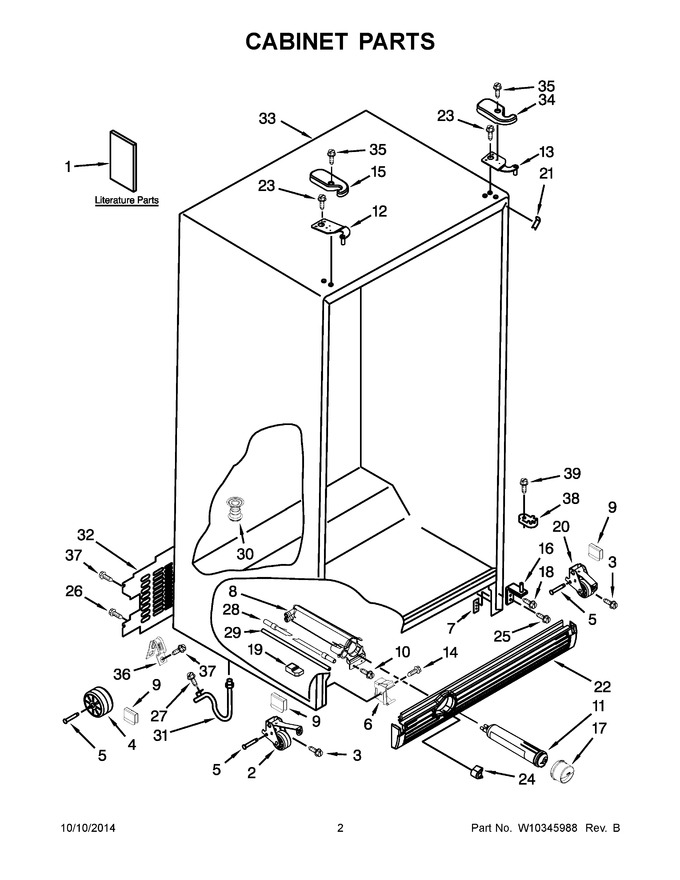

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10213155 | Use And Care Guide |
|
- | |||||
| 2 | WPW10304660 | Roller, Front (left) (Replaces: W10304660) |
|
Immediately | $ 73.90 | ||||
| 3 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 4 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: 2262072) |
|
Immediately | $ 19.12 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP2304249 | Plate, Screw (Replaces: 2304249) |
|
$ 14.94 | |||||
| 8 | WPW10121138 | Housing, Water Filter (Replaces: W10121138) |
|
Immediately | $ 114.61 | ||||
| 9 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 11.53 | |||||
| 10 | WP489500 | Screw (Replaces: 489500) |
|
$ 8.17 | |||||
| 11 | EDR3RXD1B | Filter, Water (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 12 | W10287685 | Assembly, Top Hinge (freezer) |
|
$ 63.39 | |||||
| 13 | W10287684 | Assembly, Top Hinge (refrigerator) |
|
$ 46.69 | |||||
| 14 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 15 | WP2203407B | Cover, Hinge (freezer) (black) (Replaces: 2203407B) |
|
$ 20.50 | |||||
| 16 | W10251408 | Hinge, Bottom |
|
$ 59.74 | |||||
| 17 | WP2260518B | Cap, Water Filter (black) (Replaces: 2260502B) |
|
Immediately | $ 33.95 | ||||
| 18 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 19 | 2260519 | Block, Housing Support |
|
- | |||||
| 20 | WPW10304659 | Roller, Front (right) (Replaces: W10304659) |
|
Immediately | $ 73.90 | ||||
| 21 | W11252732 | Filler, Corner (black) (Replaces: W10283960) |
|
$ 13.07 | |||||
| 22 | W10283953 | Grille (black) |
|
$ 57.40 | |||||
| 23 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 24 | WP2260503B | Button, Water Filter (black) (Replaces: 2260503B) |
|
$ 76.42 | |||||
| 25 | W10856122 | Screw (Replaces: 3400103) |
|
$ 8.27 | |||||
| 26 | WP488488 | Screw (Replaces: 489290) |
|
$ 8.52 | |||||
| 27 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 28 | W10274362 | Tube, Filter Inlet |
|
- | |||||
| 29 | WPW10350006 | Tube, Filter Outlet (Replaces: 2255012) |
|
$ 121.32 | |||||
| 30 | W11566763 | Fitting, Drain (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 31 | W11512417 | Extension, Drain Fitting (Replaces: W10153550) |
|
$ 36.53 | |||||
| 32 | WP2188756 | Cover, Unit (Replaces: 2188734) |
|
$ 148.75 | |||||
| 33 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 34 | WP2203408B | Cover, Hinge (refrigerator) (black) (Replaces: 2203408B) |
|
$ 19.56 | |||||
| 35 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.96 | |||||
| 36 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 37 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 38 | WPW10329686 | Closer, Door (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 39 | WP489483 | Screw (Replaces: 489483) |
|
$ 11.41 | |||||
| 1A | W10158908 | Service And Wiring Sheet |
|
- | |||||
| 1B | W10130282 | Energy Guide |
|
- | |||||
| 1C | 2261037 | Door Removal Instruction Sheet |
|
- | |||||
| 1D | 628370 | Icemaker Service Sheet |
|
- |
