Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Housing, Dispenser (not Serviced) Appelez-nous -
2 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

3 WP2194719 Spring, Lever   (Replaces: 2194719) In-Stock Immediately $ 11.12

4 WPW10224328 Spring, Torsion   (Replaces: 2304772) Special Order $ 78.66

5 WP2196195 Pin   (Replaces: 2196195) Special Order $ 13.78

6 WP2180353 Door, Ice   (Replaces: 2180353) In-Stock Immediately $ 24.15

7 2304355 Support, Ice Door Appelez-nous -
8 2205686 Dashpot, Dispenser Appelez-nous -
9 WP2206671B Grille, Dispenser (black)   (Replaces: 2206671B) Special Order $ 65.25

10 8201537 Assembly, Water Fitting   (Replaces: W10133007) Special Order $ 126.76

11 WPW10152854 Lever, Ice Dispenser (black)   (Replaces: W10152854) Special Order $ 98.10

12 WP2180224 Guide, Ice   (Replaces: 2180224) In-Stock Immediately $ 27.02

13 2180200 Socket, Light Special Order $ 93.23

14 WP2162361 Switch   (Replaces: 2162361) In-Stock Immediately $ 25.84

15 WP2180226 Bracket, Control   (Replaces: W10282667) In-Stock Immediately $ 24.27

16 WP22002263 Bulb, Light   (Replaces: 3406124) In-Stock Immediately $ 13.37

17 WPW10152859 Lever, Water Dispenser (black)   (Replaces: W10152859) In-Stock Immediately $ 92.54

18 WP2180236 Assembly, Switch   (Replaces: 2180236) Special Order $ 259.20

19 N/P Overlay, Front Cover (not Available Order #23) Appelez-nous -
20 W10281339 Assembly, Wire Special Order $ 132.58

21 N/P Cover, Housing Front (not Available, Order #23) Appelez-nous -
22 WP3400906 Screw   (Replaces: 489000) Special Order $ 8.15

23 W10153724 Assembly, Front Cover Special Order $ 139.26

24 625834 Spacer, Holding Switch Special Order $ 7.99

25 WP2195051 Relief, Strain   (Replaces: 2195051) Special Order $ 11.29

26 WP2304673 Bracket, Water Tube   (Replaces: 2304673) Special Order $ 14.74

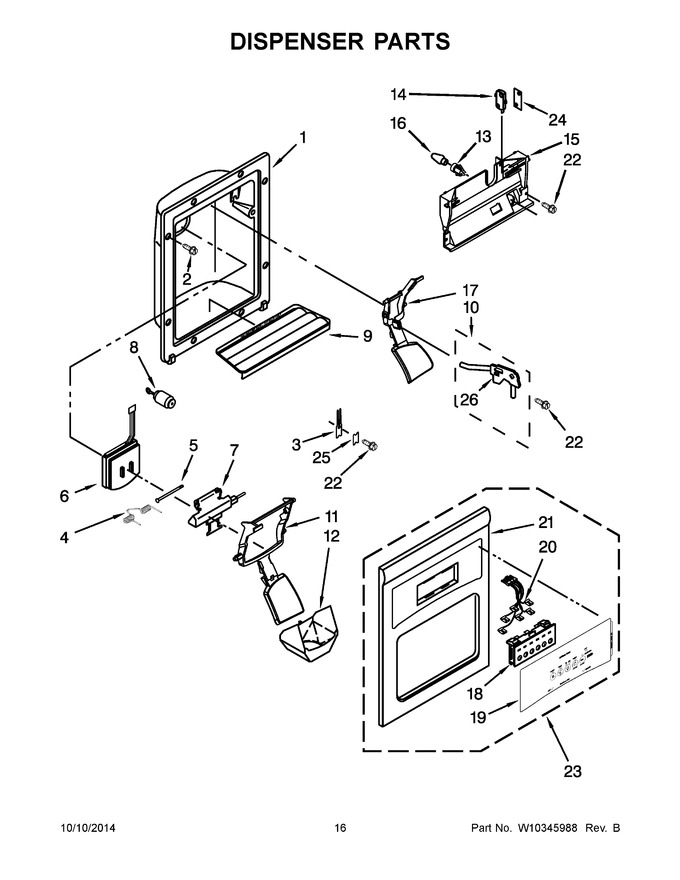

    View Diagram in Separate Window     Print Icon   Print Part List
