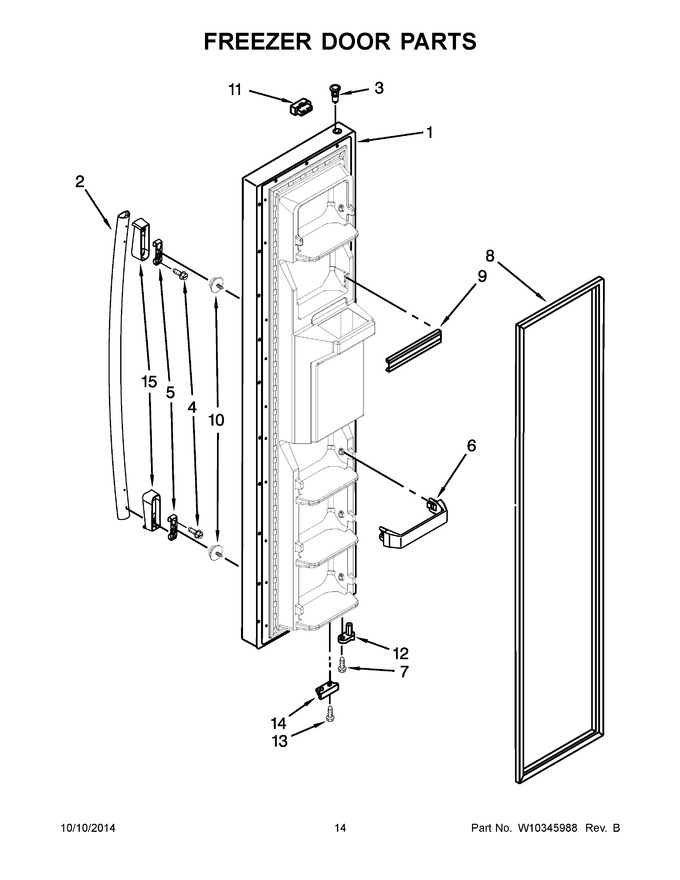

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10272030 | Door, Freezer (includes Item 8 And Dispenser Front Parts) |
|
- | |||||
| 2 | WPW10257118K | Handle, Door (stainless) (Replaces: W10257118) |
|
$ 196.99 | |||||
| 3 | WP2182181 | Thimble (Replaces: 2182181) |
|
$ 8.15 | |||||
| 4 | W10267047 | Screw (Replaces: W10201588) |
|
$ 13.47 | |||||
| 5 | WP2255411 | Clip, Handle Mount (Replaces: 2255411) |
|
$ 36.55 | |||||
| 6 | WP2309717 | Trim, Door (Replaces: 2309717) |
|
$ 58.64 | |||||
| 7 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 8 | 2159080 | Gasket, Door (black) (Replaces: 2309654) |
|
$ 325.91 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307489) |
|
Immediately | $ 24.27 | ||||
| 10 | WPW10288153 | Screw (Replaces: W10129563) |
|
Immediately | $ 9.65 | ||||
| 11 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 24.83 | |||||
| 12 | WP2182179 | Closer, Upper Cam Door (Replaces: 2182179) |
|
Immediately | $ 7.20 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 14 | W10185567 | Bracket, Door Stop (black) |
|
- | |||||
| 15 | W10127772 | Endcap, Handle (grey) |
|
$ 49.75 |
