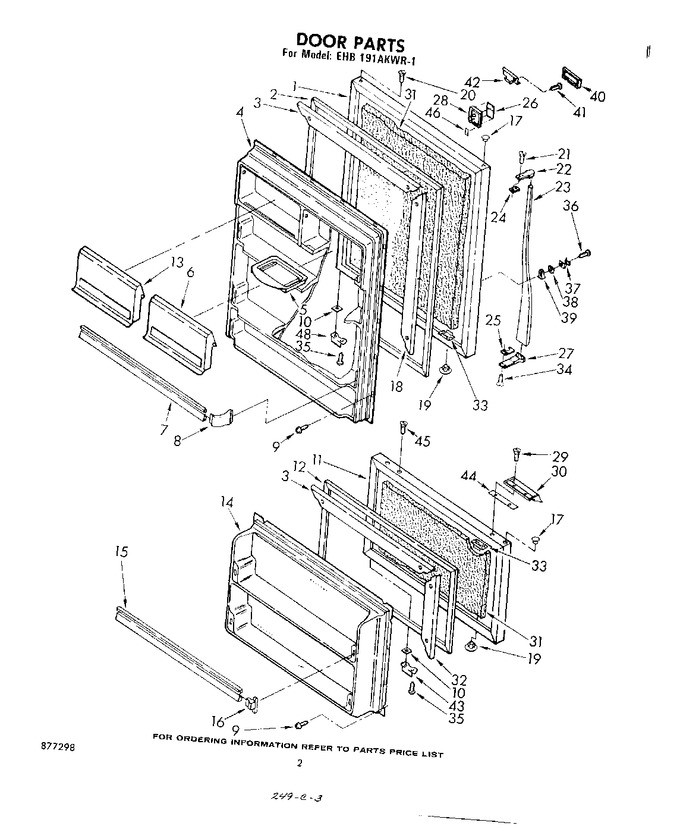

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	940363		Door, Refrigerator (also Order Item 31) (white)		Appelez-nous	-
1	940364		Door, Refrigerator (also Order Item 31) (coffee)		Appelez-nous	-
1	940366		Door, Refrigerator (also Order Item 31) (new Avocado)		Appelez-nous	-
1	940365		Door, Refrigerator (also Order Item 31) (golden Harvest)		Appelez-nous	-
1	940367		Door, Refrigerator (also Order Item 31) (almond)		Appelez-nous	-
2	986009		Gasket, Refrigerator Door		Appelez-nous	-
3	836118		Retainer, Gasket Top & Bottom		Appelez-nous	-
4	935289		Panel, Interior Door		Appelez-nous	-
5	520747		Tray, Butter		Appelez-nous	-
6	935228		Door, Butter		Appelez-nous	-
7	936889		Trim, Door Shelf (3)		Appelez-nous	-
8	WP849996		Retainer, Door Shelf Trim (6)   (Replaces: 849685)				$ 7.16
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.62
9	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
10	941017		Shim		Appelez-nous	-
11	940374		Door, Freezer (also Order Item 31) (new Avocado)		Appelez-nous	-
11	940371		Door, Freezer (also Order Item 31) (white)		Appelez-nous	-
11	940372		Door, Freezer (also Order Item 31) (coffee)		Appelez-nous	-
11	940373		Door, Freezer (also Order Item 31) (golden Harvest)		Appelez-nous	-
11	940375		Door, Freezer (also Order Item 31) (almond)		Appelez-nous	-
12	986016		Gasket, Freezer Door		Appelez-nous	-
13	935143		Door, Utility		Appelez-nous	-
14	992590		Panel, Interior Door		Appelez-nous	-
15	991317		Trim, Door Shelf (2)		Appelez-nous	-
16	982123		Retainer, Door Shelf Trim (4)		Appelez-nous	-
17	989196		Plug, Hole (almond)		Appelez-nous	-
17	WP2212648		Plug, Hole (white)   (Replaces: 844478)			Immediately	$ 7.37
17	989892		Plug, Hole (coffee)		Appelez-nous	-
17	989894		Plug, Hole (new Avocado)		Appelez-nous	-
17	WP2212648		Plug, Hole (golden Harvest)   (Replaces: 989893)			Immediately	$ 7.37
18	986008		Retainer Gasket, Side (2)		Appelez-nous	-
19	989879		Plug, Hole (2) (golden Harvest)		Appelez-nous	-
19	989880		Plug, Hole (2) (new Avocado)		Appelez-nous	-
19	534927		Plug, Hole (2) (white)		Appelez-nous	-
19	989197		Plug, Hole (2) (almond)		Appelez-nous	-
19	989878		Plug, Hole (2) (coffee)		Appelez-nous	-
20	488915		Screw, 6-32 X 1/2		Appelez-nous	-
20	488925		Screw (repair)		Appelez-nous	-
21	488927		Screw (repair)		Appelez-nous	-
21	WP488920		Screw, 6-32 X 5/8   (Replaces: 488926)				$ 7.18
22	983544		Cap, Handle (top)		Appelez-nous	-
23	988414		Handle (center)		Appelez-nous	-
24	848338		Shim, Handle		Appelez-nous	-
25	987867		Spacer, Handle		Appelez-nous	-
26	848308		Insert, Nameplate		Appelez-nous	-
27	983543		Cap, Handle (bottom)		Appelez-nous	-
28	849310		Escutcheon, Nameplate		Appelez-nous	-
29	488933		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
29	488934		Screw (repair)		Appelez-nous	-
30	657077		Door Handle		Appelez-nous	-
31	876029		Kit, Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
32	986015		Retainer, Gasket (side) (2)		Appelez-nous	-
33	940231		Plate, Tap (2)		Appelez-nous	-
34	WP488920		Screw, 8 X 5/8 (2)   (Replaces: 488920)				$ 7.18
34	488923		Screw (repair)		Appelez-nous	-
35	488930		Screw (repair)		Appelez-nous	-
35	WP488921		Screw, 8 X 1/2 (2)   (Replaces: 488921)			Immediately	$ 7.42
36	488919		Screw, 8-32 X 3/4		Appelez-nous	-
37	987996		Retainer, Handle Center		Appelez-nous	-
38	987995		Locator		Appelez-nous	-
39	987997		Spacer, Handle Center		Appelez-nous	-
40	989901		Medallion (coffee)		Appelez-nous	-
40	989904		Medallion (almond)		Appelez-nous	-
40	989903		Medallion (golden Harvest)		Appelez-nous	-
40	989902		Medallion (new Avocado)		Appelez-nous	-
40	848382		Medallion (white)		Appelez-nous	-
41	488844		Screw, 8-32 X 1/2		Appelez-nous	-
42	843213		Clip, Medallion		Appelez-nous	-
43	940217		Bracket, Door Stop		Appelez-nous	-
44	989711		Shim, Handle		Appelez-nous	-
45	488935		Screw, 10-32 X 1/2		Appelez-nous	-
46	991259		Tape		Appelez-nous	-
48	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 86.78
48	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
48	877298		List, Parts		Appelez-nous	-
48	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
48	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
48	935293		Use & Care Guide		Appelez-nous	-
48	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
48	939422		Energy Guide		Appelez-nous	-
48	940216		Bracket, Door Stop		Appelez-nous	-
48	833938		Kit, Terminal Connector				$ 7.62
48	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
48	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
48	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
48	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
48	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
48	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
48	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
48	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
48	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
48	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
48	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
48	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
48	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
48	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
48	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
48	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
48	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
48	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
48	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	350942		Primer White (13 Oz. Spray Can)				$ 84.73
	511881		Xlacquer, Aluminum (13 Oz. Spray Can)				$ 278.35
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
