SELECT A DIAGRAM

02 - Door , Lit/optional


03 - Cabinet


04 - Liner


05 - Interior


06 - Breaker And Control


07 - Unit

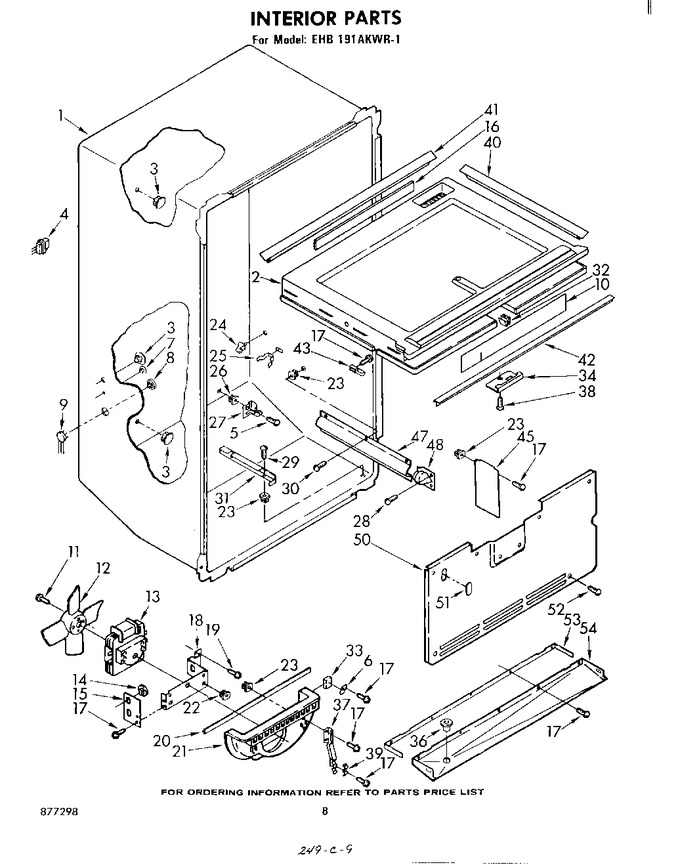

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	939114		Separator Compartment		Appelez-nous	-
3	519890		Plug, Hole (4)		Appelez-nous	-
4	481782		Wiring, Liner (defrost Timer)		Appelez-nous	-
5	WP681414		Screw, 10-12 X 3/8 (2)   (Replaces: 488552)			Immediately	$ 7.62
6	538533		Support Clip (2)		Appelez-nous	-
7	659598		Plug, Hole (2)		Appelez-nous	-
8	850738		Cap, Receptacle		Appelez-nous	-
9	481658		Wiring, Liner (ice Maker)		Appelez-nous	-
10	939142		Wiring Shield		Appelez-nous	-
11	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 220.32
12	839859		Blade, Fan		Appelez-nous	-
13	SM999		Motor, Evaporator Fan   (Replaces: 987369)			Immediately	$ 27.23
14	548268		Grommet, Fan Mounting (3)		Appelez-nous	-
15	548263		Bracket, Fan Mounting (double)		Appelez-nous	-
16	939115		Gasket, Sealing		Appelez-nous	-
17	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
18	548264		Bracket, Fan Mounting (single)		Appelez-nous	-
19	WP489069		Screw, 8 X 1/2 (2)   (Replaces: 488772)			Immediately	$ 7.56
20	986018		Gasket, Sealing		Appelez-nous	-
21	986017		Scroll Fan		Appelez-nous	-
22	538449		Grommet, Screw (2)		Appelez-nous	-
23	842339		Grommet		Appelez-nous	-
24	839213		Stud, Support (2)				$ 265.64
25	533998		Speed Clip, Light Lens (3)		Appelez-nous	-
26	514357		Grommet, Screw (2)		Appelez-nous	-
27	842436		Support, Evaporator (2)		Appelez-nous	-
28	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 488783)			Immediately	$ 7.45
29	W11693756		Screw, 8-15 X 5/8 (4)   (Replaces: 487042)			Immediately	$ 13.28
30	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 487909)			Immediately	$ 7.45
31	986383		Slide, Basket (left Side)		Appelez-nous	-
31	986382		Slide, Basket (r.s)		Appelez-nous	-
32	537095		Expansion Clip		Appelez-nous	-
33	987137		Pad, Scroll (2)		Appelez-nous	-
34	939116		Light Switch Cover		Appelez-nous	-
36	986661		Fitting, Drain Pan		Appelez-nous	-
37	851760		Support, Fan Scroll (2)		Appelez-nous	-
38	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.45
39	851850		Clamp, Fan Scroll Bracket (2)		Appelez-nous	-
40	939117		Gasket, Side (2)		Appelez-nous	-
41	939119		Gasket, Rear		Appelez-nous	-
42	939120		Gasket, Front		Appelez-nous	-
43	939121		Hold Down		Appelez-nous	-
45	851763		Baffle, Air Evaporator		Appelez-nous	-
47	981085		Cover, Tube		Appelez-nous	-
48	839826		Cover, Tub Entry		Appelez-nous	-
50	986020		Cover, Evaporator		Appelez-nous	-
51	659776		Plug, Hole		Appelez-nous	-
52	WP488729		Screw, 8 X 1/2 (6)   (Replaces: 488992)			Immediately	$ 7.45
53	986660		Gasket, Drain Pan		Appelez-nous	-
54	986659		Pan, Drain		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
