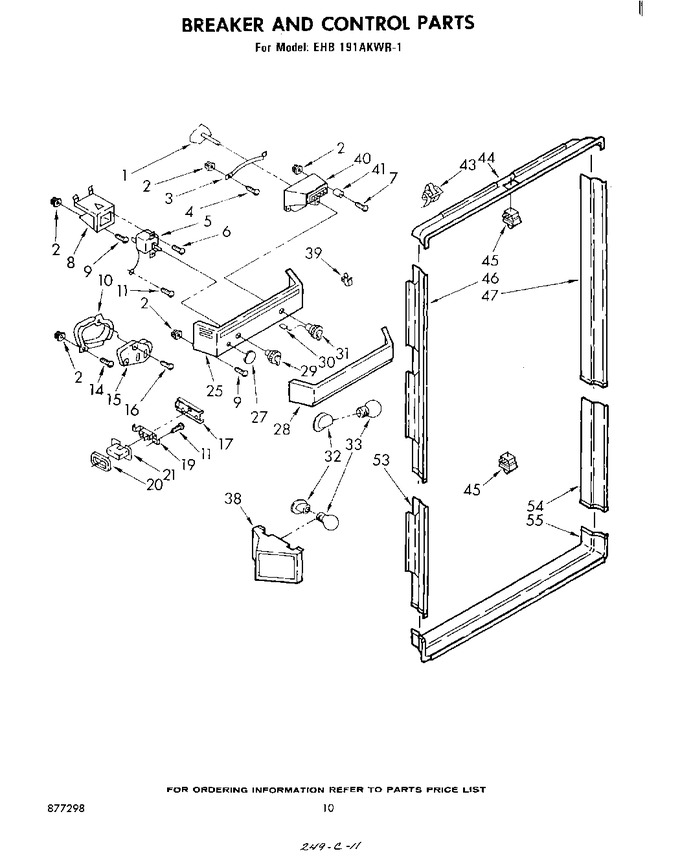

02 - Door , Lit/optional
03 - Cabinet
04 - Liner
05 - Interior
06 - Breaker And Control
07 - Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 984658 | Damper, Air |
|
$ 8.39 | |||||
| 2 | 842339 | Grommet |
|
- | |||||
| 3 | 836493 | Retainer, Air Damper |
|
- | |||||
| 4 | 488624 | Screw, 8 X 3/8 |
|
- | |||||
| 5 | WP4317800 | Thermostat (Replaces: 987237) |
|
Immediately | $ 250.81 | ||||
| 6 | WP965173 | Screw, 8-15 X 3/8 (2) (Replaces: 487584) |
|
Immediately | $ 10.68 | ||||
| 7 | 488357 | Screw, 8 X 1-1/4 |
|
- | |||||
| 8 | 848446 | Bracket, Thermostat Mounting |
|
- | |||||
| 9 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 13.25 | |||||
| 10 | 983079 | Container, Defrost Timer |
|
- | |||||
| 11 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 10.26 | |||||
| 14 | WP489069 | Screw, 8 X 1/2 (2) (Replaces: 488772) |
|
Immediately | $ 7.56 | ||||
| 15 | 851161 | Timer, Defrost |
|
- | |||||
| 16 | 488678 | Screw, 8 X 1-3/8 (2) |
|
- | |||||
| 17 | 936965 | Escutcheon, Power Saver Switch |
|
- | |||||
| 19 | 845049 | Switch, Power Saver |
|
- | |||||
| 20 | 845052 | Gasket, Container |
|
- | |||||
| 21 | 845051 | Container, Power Saver Switch |
|
- | |||||
| 25 | 983908 | Panel, Control |
|
- | |||||
| 27 | 534927 | Plug, Hole |
|
- | |||||
| 28 | 983910 | Shield, Light |
|
- | |||||
| 29 | 836482 | Knob, Thermostat |
|
- | |||||
| 30 | 837444 | Knob, Retainer |
|
- | |||||
| 31 | 837445 | Knob, Air Diffuser (includes Illus. 30) |
|
- | |||||
| 32 | 4387478 | Socket, Light (2) (Replaces: 851067) |
|
Immediately | $ 104.10 | ||||
| 33 | 8009 | Bulb, Light (2) (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 38 | 848158 | Shield, Light (freezer Compartment) |
|
- | |||||
| 39 | 851039 | Fastener, Wire |
|
- | |||||
| 40 | 986021 | Diffuser Assembly, Air |
|
- | |||||
| 41 | 836667 | Spacer (2) |
|
- | |||||
| 43 | 849479 | Clip, Breaker Retainer (2) |
|
- | |||||
| 44 | 940919 | Breaker, Refrigerator Trim (top) |
|
- | |||||
| 45 | W11384469 | Switch, Rocker Arm (2) (Replaces: 549702) |
|
Immediately | $ 35.18 | ||||
| 46 | 939123 | Breaker, Refrigerator Trim (l.s.) |
|
- | |||||
| 47 | 939122 | Breaker, Refrigerator Trim (r.s.) |
|
- | |||||
| 53 | 939125 | Breaker, Freezer Trim (l.s.) |
|
- | |||||
| 54 | 939126 | Breaker, Freezer Trim (r.s.) |
|
- | |||||
| 55 | 839829 | Breaker, Freezer Trim (bottom) |
|
- |
