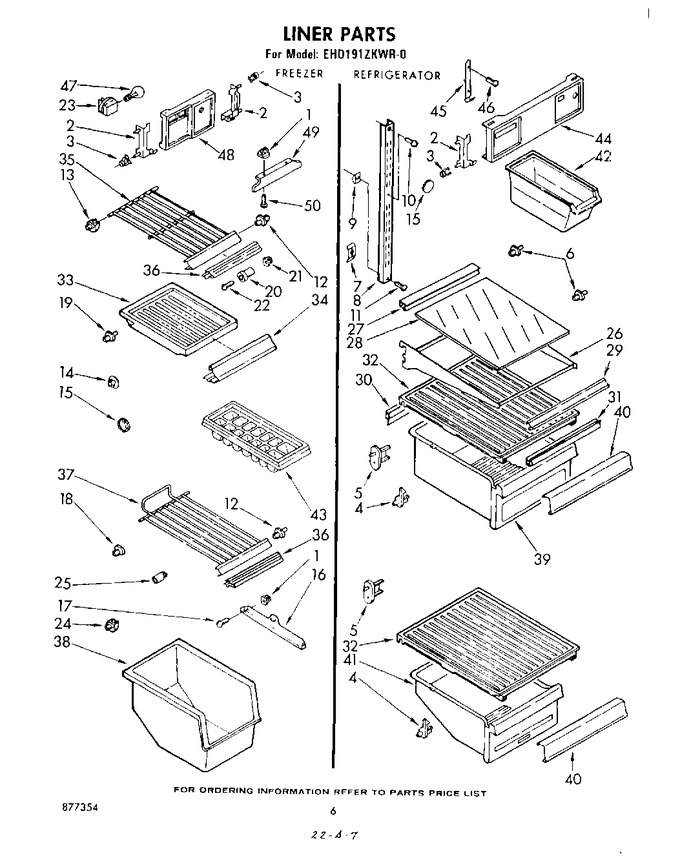

04 - Liner
05 - Door
06 - Unit
07 - Cabinet
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 842339 | Grommet |
|
- | |||||
| 2 | 842356 | Support, Light Lens (l.s.) |
|
- | |||||
| 2 | 842355 | Support, Light Lens (r.s.) |
|
- | |||||
| 3 | 843945 | Clip, Tubular (6) |
|
- | |||||
| 4 | 652675 | Shelf Stud (2) |
|
- | |||||
| 5 | 845986 | Shelf Stud (2) |
|
- | |||||
| 6 | 536475 | Shelf, Stud (4) |
|
$ 7.28 | |||||
| 7 | 983604 | Screw Anchor (4) |
|
- | |||||
| 8 | 934264 | Shelfladder (2) |
|
- | |||||
| 9 | 520965 | Ladder, Support (6) |
|
$ 28.22 | |||||
| 10 | 488357 | Screw, 8 X 1-1/4 (4) |
|
- | |||||
| 11 | 488960 | Screw, 8-32 X 1-1/4 |
|
- | |||||
| 11 | 488980 | Screw (repair) |
|
- | |||||
| 12 | 529758 | Shelf, Stud |
|
- | |||||
| 13 | 523264 | Shelf, Saddle L.s. |
|
- | |||||
| 13 | 523263 | Shelf, Saddle R.s. |
|
- | |||||
| 14 | 659598 | Hole Plug (2) |
|
- | |||||
| 15 | 519890 | Hole Plug (6) |
|
- | |||||
| 16 | 982321 | Slide, Freezer Bin |
|
- | |||||
| 17 | 487979 | Screw, 8 X 1 (4) |
|
- | |||||
| 18 | 512900 | Stud, Retainer (2) |
|
- | |||||
| 19 | 521878 | Shelf Stud |
|
- | |||||
| 20 | 658944 | Stud, Shelf |
|
- | |||||
| 21 | 538449 | Grommet |
|
- | |||||
| 22 | 487559 | Screw, 8-15 X 1-1/4 |
|
- | |||||
| 23 | 4387478 | Socket (Replaces: 851067) |
|
Immediately | $ 104.10 | ||||
| 24 | 210518 | Shelf, Support (2) |
|
- | |||||
| 25 | 533881 | Grommet |
|
- | |||||
| 26 | 936796 | Shelf Cantilever |
|
- | |||||
| 27 | 942189 | Retainer, Glass Shelf |
|
- | |||||
| 28 | 942188 | Glass, Cantilever Shelf |
|
- | |||||
| 29 | 935337 | Trim, Shelf Front |
|
- | |||||
| 30 | 987420 | Crisper Gasket Rear |
|
- | |||||
| 31 | 987419 | Crisper Gasket Front |
|
- | |||||
| 32 | 936584 | Pan Slide & Cover |
|
- | |||||
| 33 | 837202 | Solid Shelf |
|
- | |||||
| 34 | 841025 | Trim Solid Shelf |
|
- | |||||
| 35 | 992342 | Wire, Shelf F.c. |
|
- | |||||
| 36 | 849263 | Trim, Shelf Front |
|
- | |||||
| 37 | 992343 | Shelf, Ice Cube Pan |
|
- | |||||
| 38 | 940719 | Freezer Bin, Plastic |
|
- | |||||
| 39 | 940716 | Pan, Crisper |
|
- | |||||
| 40 | 988255 | Overlay, Pan |
|
- | |||||
| 41 | 940718 | Meat Pan |
|
- | |||||
| 42 | WP982704 | Container, Utility (Replaces: 940661) |
|
$ 29.30 | |||||
| 43 | WP841180A | Ice Tray (Replaces: 841180) |
|
Immediately | $ 43.06 | ||||
| 44 | 936966 | Light Lens, R.c. |
|
- | |||||
| 45 | 984552 | Support, Light Lens |
|
- | |||||
| 46 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 13.25 | |||||
| 47 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 17.51 | ||||
| 48 | 985456 | Light Lens, F.c. |
|
- | |||||
| 49 | 836216 | Baffle, Liner Top |
|
- | |||||
| 50 | WP489069 | Screw, 8 X 1/2 (2) (Replaces: 488772) |
|
Immediately | $ 7.56 |
