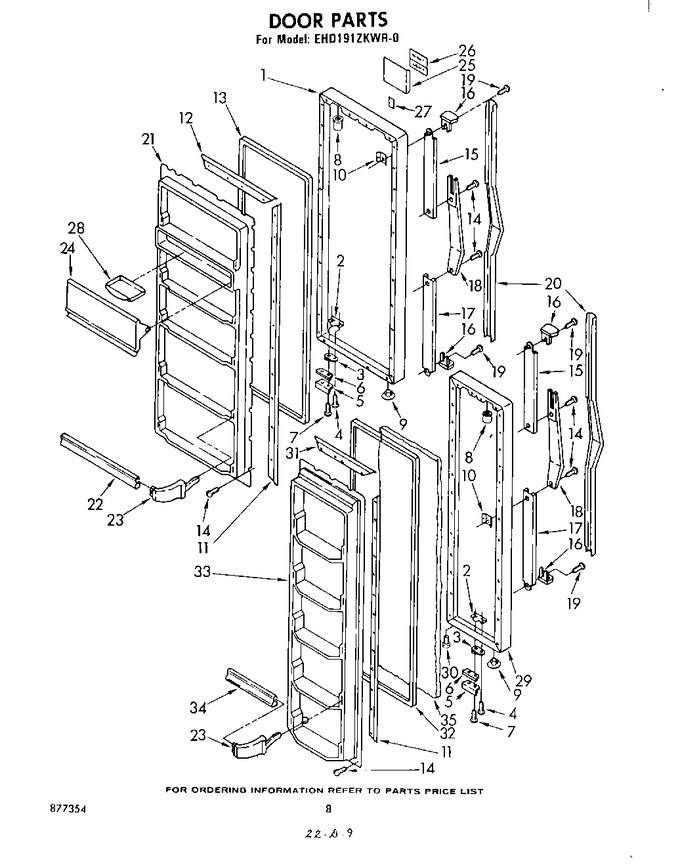

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 936632 | Refrigerator, Door Panel (white) |
|
- | |||||
| 1 | 936633 | Refrigerator, Door Panel (coffee) |
|
- | |||||
| 1 | 936634 | Refrigerator, Door Panel (golden Harvest) |
|
- | |||||
| 1 | 936635 | Refrigerator, Door Panel (new Avocado) |
|
- | |||||
| 1 | 936636 | Refrigerator, Door Panel (almond) |
|
- | |||||
| 2 | 988402 | Tap Plate |
|
- | |||||
| 3 | 4318165 | Door Closer, Cam (Replaces: 986758) |
|
Immediately | $ 26.77 | ||||
| 4 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 7.56 | ||||
| 5 | 988420 | Bracket, Door Stop |
|
- | |||||
| 6 | 988421 | Shim |
|
- | |||||
| 7 | 488549 | Screw, 8 X 5/8 (2) |
|
- | |||||
| 8 | 509929 | Cap, Hinge Sleeve |
|
- | |||||
| 9 | 989878 | Hole, Plug (coffee) |
|
- | |||||
| 9 | 989197 | Hole Plug (almond) |
|
- | |||||
| 9 | 989880 | Hole Plug (new Avocado) |
|
- | |||||
| 9 | 989879 | Hole Plug (golden Harvest) |
|
- | |||||
| 9 | 534927 | Hole Plug (white) |
|
- | |||||
| 10 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.09 | |||||
| 11 | 836120 | Retainer, Gasket (side) (2) |
|
- | |||||
| 12 | 836121 | Retainer, Gasket Top & Bottom (2) |
|
- | |||||
| 13 | 2188404A | Door Gasket, Magnetic (Replaces: 986706) |
|
$ 242.33 | |||||
| 14 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 13.25 | |||||
| 14 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 7.62 | ||||
| 15 | 987008 | Retainer, Top |
|
- | |||||
| 16 | 987006 | End Cap |
|
- | |||||
| 17 | 987010 | Retainer, Botom |
|
- | |||||
| 18 | 987009 | Handle |
|
- | |||||
| 19 | 488928 | Screw, 10-32 X 5/8 (2) |
|
- | |||||
| 20 | 848330 | Insert |
|
- | |||||
| 21 | 981428 | Panel, Interior |
|
- | |||||
| 22 | 985494 | Trim, Shelf (5) |
|
- | |||||
| 23 | WP849996 | Support Trim End (Replaces: 849996) |
|
$ 7.16 | |||||
| 24 | 942170 | Com\pa\rtment\ Do\or, Utility |
|
- | |||||
| 25 | 849310 | Escutcheon, Nameplate |
|
- | |||||
| 26 | 848308 | Insert, Nameplate |
|
- | |||||
| 27 | 991259 | Tape Strip |
|
- | |||||
| 28 | 520747 | Tray, Butter |
|
- | |||||
| 29 | 936643 | Freezer, Door Panel (almond) |
|
- | |||||
| 29 | 936639 | Freezer, Door Panel (white) |
|
- | |||||
| 29 | 936640 | Freezer, Door Panel (coffee) |
|
- | |||||
| 29 | 936641 | Freezer, Door Panel (golden Harvest) |
|
- | |||||
| 29 | 936642 | Freezer, Door Panel (new Avocado) |
|
- | |||||
| 30 | 849391 | Hole Plug |
|
- | |||||
| 31 | 836122 | Retainer Gasket Top & Bottom |
|
- | |||||
| 32 | 2188405A | Door Gasket, Magnetic (Replaces: 836228) |
|
$ 331.77 | |||||
| 33 | 937457 | Panel, Interior F.c. |
|
- | |||||
| 34 | 935361 | Trim Interior Door Shelf |
|
- | |||||
| 35 | 876029 | Kit, Foam Slab (required When Replacing Exterior Door Panel) |
|
- |
