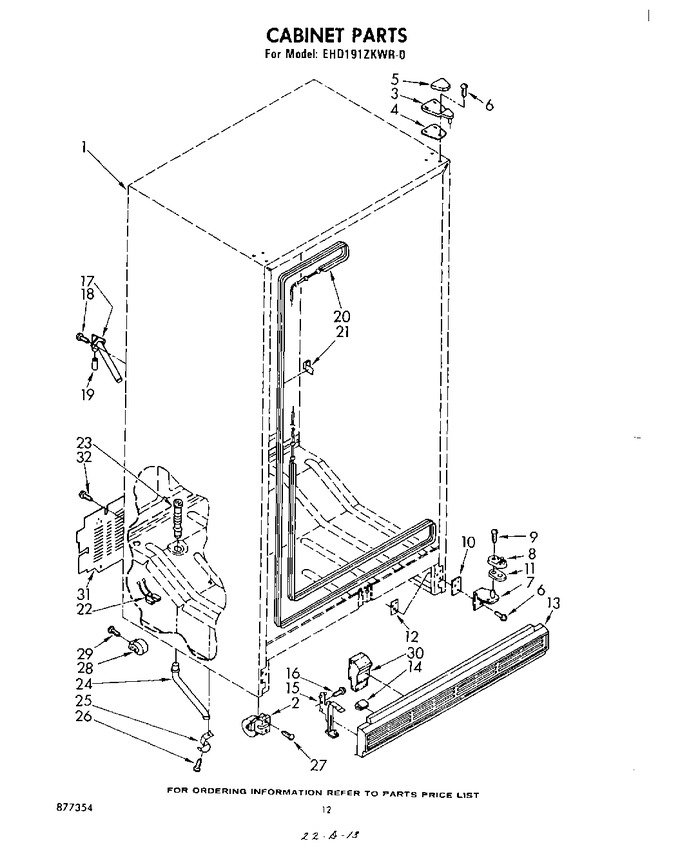

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 981127 | Roller, Front (2) |
|
- | |||||
| 3 | 842039 | Hinge, Top |
|
- | |||||
| 4 | 836151 | Shim, Hinge Top |
|
- | |||||
| 5 | 989895 | Hinge, Cover (coffee) |
|
- | |||||
| 5 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 5 | 989897 | Hinge Cover (new Avocado) |
|
- | |||||
| 5 | 989896 | Hinge Cover (golden Harvest) |
|
- | |||||
| 5 | 842010 | Hinge Cover (white) |
|
- | |||||
| 6 | 488949 | Screw (repair) |
|
- | |||||
| 6 | WP999367 | Screw, 10-32 X 3/4 (6) (Replaces: 488948) |
|
$ 7.70 | |||||
| 7 | 986763 | Hinge Bottom (r.h) |
|
- | |||||
| 7 | 986764 | Hinge Bottom (l.h) |
|
- | |||||
| 8 | WPW10329686 | Door Closer (lower Cam) (Replaces: 986759) |
|
Immediately | $ 5.31 | ||||
| 9 | WP486579 | Screw, 8-32 X 1/4 (Replaces: 487983) |
|
$ 7.10 | |||||
| 9 | 488913 | Screw (repair) |
|
- | |||||
| 10 | 836196 | Shim, Bottom Hinge |
|
- | |||||
| 11 | 987179 | Shim, Door Closer |
|
- | |||||
| 12 | 836162 | Tap Plate |
|
- | |||||
| 13 | 989943 | Grille, Exterior (new Avocado) |
|
- | |||||
| 13 | 989947 | Grille, Exterior (almond) |
|
- | |||||
| 13 | 989945 | Grille, Exterior (golden Harvest) |
|
- | |||||
| 13 | 841670 | Grille, Exterior (white) |
|
- | |||||
| 13 | 989941 | Grille, Exterior (coffee) |
|
- | |||||
| 14 | 546131 | Bumper, Grille (2) |
|
- | |||||
| 15 | 844614 | Grille, Support (2) |
|
- | |||||
| 16 | W11624204 | Screw, 8 X 1/2 (2) (Replaces: 486194) |
|
$ 13.25 | |||||
| 17 | 653113 | Fitting, Water Tube |
|
- | |||||
| 18 | WP98165 | Screw, 8 X 5/8 (2) (Replaces: 488401) |
|
$ 7.71 | |||||
| 19 | WP487996 | Cap, Plastic (Replaces: 487996) |
|
$ 7.80 | |||||
| 20 | 934447 | Heater, Stile |
|
- | |||||
| 21 | 935663 | Clip, Stile Heater |
|
- | |||||
| 22 | 548734 | Wire, Water Valve |
|
- | |||||
| 23 | 836068 | Drain Fitting, Liner |
|
- | |||||
| 24 | 841646 | Extension Fitting |
|
- | |||||
| 25 | 841648 | Clip, Extension |
|
- | |||||
| 26 | 488978 | Screw, 8-15 X 3/8 |
|
- | |||||
| 27 | 488681 | Screw, 5/16-24 X 1 |
|
- | |||||
| 28 | WPW10250570 | Roller, Rear (Replaces: 981122) |
|
$ 37.96 | |||||
| 29 | 488454 | Screw, 1/4-28 X 1/2 |
|
- | |||||
| 30 | 836372 | Insert, Baffle |
|
- | |||||
| 31 | 850457 | Cover, Compartment |
|
- | |||||
| 32 | WPW10141645 | Screw, 8 X 1/2 (6) (Replaces: 489084) |
|
$ 7.25 |
