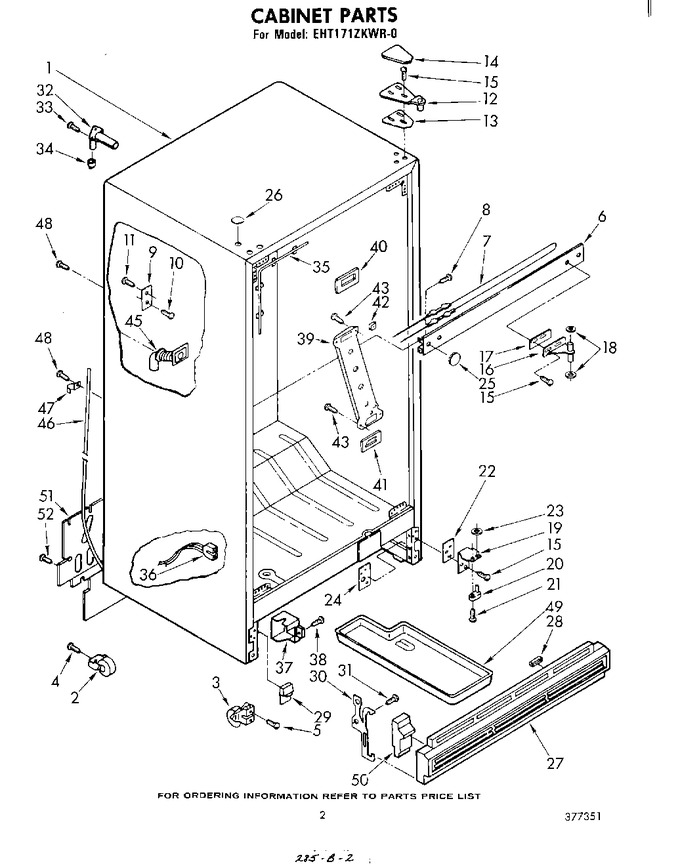

02 - Cabinet
03 - Liner
04 - Shelf
05 - Breaker And Partition
06 - Unit
07 - Door , Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | WPW10250570 | Roller, Rear (2) (Replaces: 981122) |
|
$ 37.96 | |||||
| 3 | 981127 | Roller, Front (2) |
|
- | |||||
| 4 | 488681 | Screw, 5/16-24 X 1 |
|
- | |||||
| 5 | 488454 | Screw, 1/4-28 X 1/2 (4) |
|
- | |||||
| 6 | 836067 | Center Rail (white) |
|
- | |||||
| 6 | 989908 | Center Rail (coffee) |
|
- | |||||
| 6 | 989909 | Center Rail (golden Harvest) |
|
- | |||||
| 6 | 989910 | Center Rail (new Avocado) |
|
- | |||||
| 6 | 989911 | Center Rail (almond) |
|
- | |||||
| 7 | 989256 | Heater, Mullion |
|
- | |||||
| 8 | 487470 | Screw (repair) |
|
- | |||||
| 8 | 488624 | Screw, 8 X 3/8 (4) |
|
- | |||||
| 9 | 547603 | Strap, Ground |
|
- | |||||
| 10 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 10.26 | |||||
| 11 | 488684 | Screw, 8-32 X 1-1/2 |
|
- | |||||
| 12 | 842039 | Hinge, Top |
|
- | |||||
| 13 | 836151 | Shim, Hinge Top |
|
- | |||||
| 14 | 842010 | Hinge Cover (white) |
|
- | |||||
| 14 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 14 | 989897 | Hinge Cover (new Avocado) |
|
- | |||||
| 14 | 989896 | Hinge Cover (golden Harvest) |
|
- | |||||
| 14 | 989895 | Hinge, Cover (coffee) |
|
- | |||||
| 15 | 488949 | Screw (repair) |
|
- | |||||
| 15 | WP999367 | Screw, 10-32 X 3/4 (3) (Replaces: 488948) |
|
$ 7.70 | |||||
| 16 | 836153 | Hinge, Center |
|
- | |||||
| 17 | 836155 | Shim, Hinge Center |
|
- | |||||
| 18 | WP488296 | Washer, 11/64 (Replaces: 488296) |
|
Immediately | $ 6.80 | ||||
| 19 | 836159 | Hinge, Bottom |
|
- | |||||
| 20 | 654366 | Hinge Pin, Bottom |
|
$ 27.15 | |||||
| 21 | 488714 | Screw 10-32 X 5/16 |
|
$ 5.48 | |||||
| 22 | 836196 | Shim, Bottom Hinge |
|
- | |||||
| 23 | WP487802 | Washer (Replaces: 488184) |
|
Immediately | $ 7.12 | ||||
| 24 | 836162 | Tap Plate |
|
- | |||||
| 25 | 989881 | Hole Plug (coffee) |
|
- | |||||
| 25 | 989882 | Hole Plug (golden Harvest) |
|
- | |||||
| 25 | 989883 | Hole Plug (new Avocado) |
|
- | |||||
| 25 | 989193 | Hole, Plug (almond) |
|
- | |||||
| 25 | 835974 | Hole, Plug (white) |
|
- | |||||
| 26 | 989875 | Hole Plug (coffee) |
|
- | |||||
| 26 | 989876 | Hole Plug (golden Harvest) |
|
- | |||||
| 26 | 989877 | Hole Plug (new Avocado) |
|
- | |||||
| 26 | 989195 | Hole Plug (almond) |
|
- | |||||
| 26 | 842031 | Hole Plug (white) |
|
- | |||||
| 27 | 989945 | Exterior Grille (golden Harvest) |
|
- | |||||
| 27 | 841670 | Exterior Grille (white) |
|
- | |||||
| 27 | 989941 | Exterior Grille (coffee) |
|
- | |||||
| 27 | 989943 | Exterior Grille (new Avocado) |
|
- | |||||
| 27 | 989947 | Exterior Grille (almond) |
|
- | |||||
| 28 | 546131 | Bumper, Grille |
|
- | |||||
| 29 | 989930 | Corner, Filler (new Avocado) |
|
- | |||||
| 29 | 838535 | Corner, Filler (white) |
|
- | |||||
| 29 | 989931 | Corner, Filler (almond) |
|
- | |||||
| 29 | 989928 | Corner, Filler (coffee) |
|
- | |||||
| 29 | 989929 | Corner, Filler (golden Harvest) |
|
- | |||||
| 30 | 844614 | Grille, Support |
|
- | |||||
| 31 | W11624204 | Screw, 8 X 1/2 (2) (Replaces: 486194) |
|
$ 13.25 | |||||
| 32 | WP2196157 | Fitting, Water Tube (Replaces: 836489) |
|
Immediately | $ 11.33 | ||||
| 33 | WP98165 | Screw, 8 X 5/8 (Replaces: 488401) |
|
$ 7.71 | |||||
| 34 | WP487996 | Cap, Plastic (Replaces: 487996) |
|
$ 7.80 | |||||
| 35 | 531670 | Stile, Heater |
|
- | |||||
| 36 | 548734 | Wiring, Water Valve |
|
- | |||||
| 37 | 549947 | Box, Junction |
|
- | |||||
| 38 | WP488729 | Screw, 8 X 1/2 (Replaces: 486993) |
|
Immediately | $ 7.45 | ||||
| 39 | 934057 | Duct, Air |
|
- | |||||
| 40 | 836565 | Gasket Inlet |
|
- | |||||
| 41 | 934058 | Gasket Outlet |
|
- | |||||
| 42 | 488564 | Speed Nut |
|
- | |||||
| 43 | WP98165 | Screw, 8 X 5/8 (2) (Replaces: 488401) |
|
$ 7.71 | |||||
| 45 | 836096 | Drain Fitting |
|
- | |||||
| 46 | 8316810 | Tube, Drain (Replaces: 509638) |
|
$ 113.15 | |||||
| 47 | 836077 | Tube Clamp |
|
- | |||||
| 48 | WP489069 | Screw, 8 X 1/2 (Replaces: 488645) |
|
Immediately | $ 7.56 | ||||
| 49 | 842041 | Tray, Evaporating |
|
$ 64.92 | |||||
| 50 | 836372 | Insert, Air Baffle |
|
- | |||||
| 51 | 850459 | Cover, Unit Compartment |
|
- | |||||
| 52 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 7.25 |
