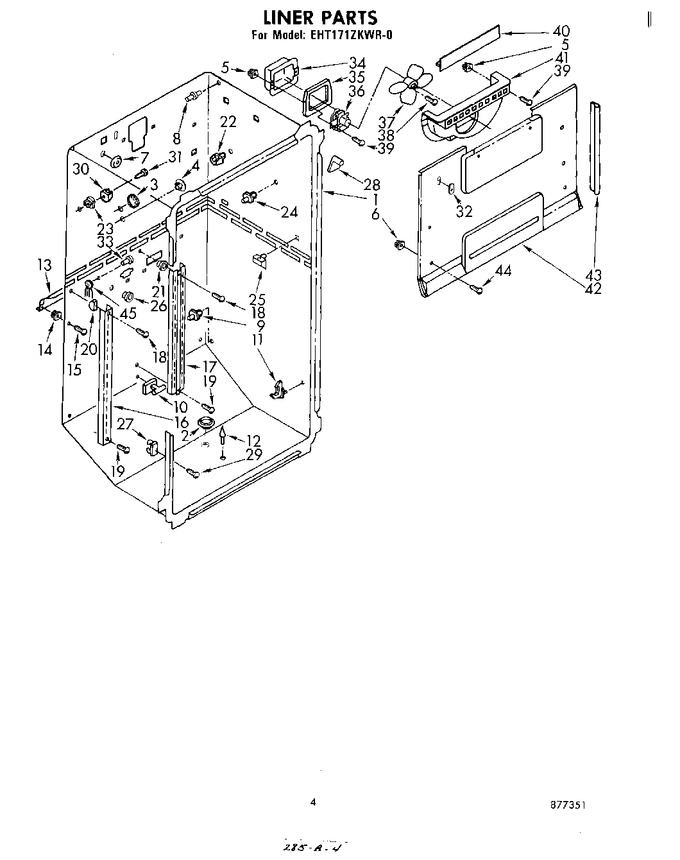

03 - Liner


04 - Shelf


05 - Breaker And Partition


06 - Unit


07 - Door , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	835370		Drain Hole Cover		Appelez-nous	-
3	519890		Hole, Plug		Appelez-nous	-
4	659598		Hole, Plug		Appelez-nous	-
5	482339		Grommet		Appelez-nous	-
6	848445		Grommet (4)		Appelez-nous	-
7	534348		Grommet, Water Inlet		Appelez-nous	-
8	526383		Stud		Appelez-nous	-
9	536475		Shelf Stud (2)				$ 7.28
10	836412		Stud, Support Rear		Appelez-nous	-
11	836423		Shelf, Stud		Appelez-nous	-
12	836409		Grommet, Post		Appelez-nous	-
13	984146		Shelf, Reinforcement		Appelez-nous	-
14	509812		Screw Grommet		Appelez-nous	-
15	WP98165		Screw, 8 X 5/8 (2)   (Replaces: 488401)				$ 7.71
16	934267		Shelf, Ladder (2)		Appelez-nous	-
17	936230		Shelf, Center Ladder		Appelez-nous	-
18	488357		Screw, 8 X 1-1/4 (3)		Appelez-nous	-
19	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
19	488980		Screw (repair)		Appelez-nous	-
20	520965		Screw, Support (4)				$ 28.22
21	520959		Screw, Support Center (2)		Appelez-nous	-
22	523263		Shelf, Saddle R.s.		Appelez-nous	-
23	538449		Screw Grommet		Appelez-nous	-
24	521878		Shelf Stud (2)		Appelez-nous	-
25	836374		Retainer, Stud		Appelez-nous	-
26	851020		Grommet, Wiring		Appelez-nous	-
27	539760		Insulation, Spacer		Appelez-nous	-
28	836040		Insulation, Spacer		Appelez-nous	-
29	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 7.13
30	836492		Shelf, Saddle L.s.		Appelez-nous	-
31	WP488729		Screw, 8-15 X 1/2   (Replaces: 487109)			Immediately	$ 7.45
32	659776		Hole Plug, Evaporator		Appelez-nous	-
33	850738		Receptacle Cap		Appelez-nous	-
34	836474		Fan, Cover		Appelez-nous	-
35	836475		Gasket, Cover		Appelez-nous	-
36	482731		Motor, Fan   (Replaces: 548697)			Immediately	$ 83.12
37	WP1100938		Blade, Fan   (Replaces: 548041)				$ 83.03
38	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 220.32
39	W11624204		Screw, 8 X 1/2 (2)   (Replaces: 486194)				$ 13.25
40	935068		Gasket, Sealing		Appelez-nous	-
41	935067		Scroll, Fan		Appelez-nous	-
42	986628		Cover, Evaporator		Appelez-nous	-
43	981749		Gasket, Evaporator		Appelez-nous	-
44	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 7.45
45	481658		Wiring, Ice Maker		Appelez-nous	-
