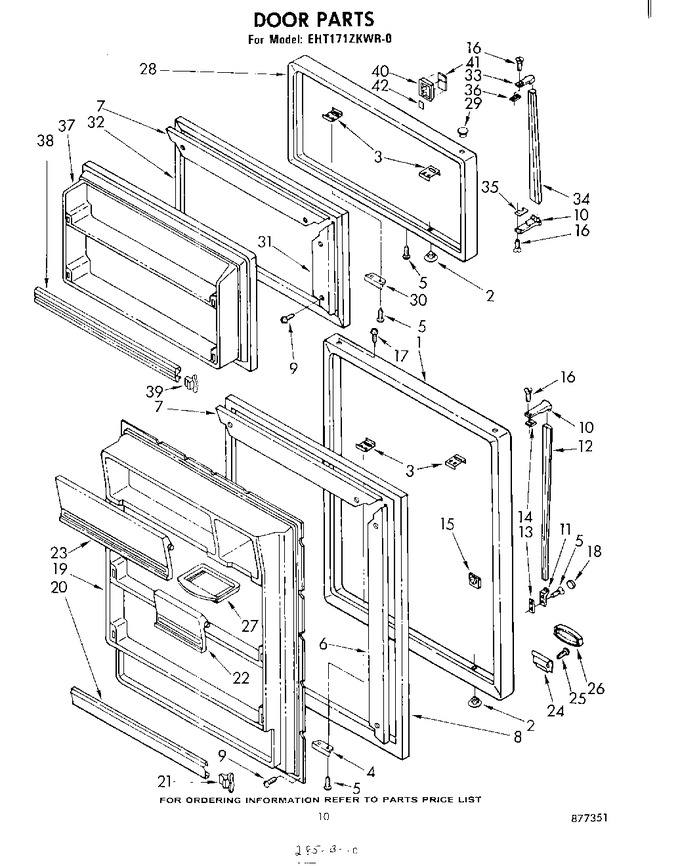

1	940300		Refrigerator, Door Panel (golden Harvest)		Appelez-nous	-
1	940301		Refrigerator, Door Panel (new Avocado)		Appelez-nous	-
1	940302		Refrigerator, Door Panel (almond)		Appelez-nous	-
1	940298		Refrigerator, Door Panel (white)		Appelez-nous	-
1	940299		Refrigerator, Door Panel (coffee)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989878		Hole Plug (2) (coffee)		Appelez-nous	-
2	989879		Hole Plug (2) (golden Harvest)		Appelez-nous	-
2	989880		Hole Plug (2) (new Avocado)		Appelez-nous	-
3	940231		Tap Plate (2)		Appelez-nous	-
4	940217		Bracket, Door Stop		Appelez-nous	-
5	488930		Screw (repair)		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2 (2)   (Replaces: 488921)			Immediately	$ 7.42
6	836117		Retainer, Gasket Side (2)		Appelez-nous	-
7	836118		Retainer, Gasket Top & Bottom (2)		Appelez-nous	-
8	2188450A		Door, Gasket Magnetic   (Replaces: 986702)				$ 255.68
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.62
9	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
10	983543		Handle End		Appelez-nous	-
11	WP2183139		Handle, End   (Replaces: 983542)			Immediately	$ 46.78
12	982946		Handle, Center		Appelez-nous	-
13	992872		Shim, Handle End		Appelez-nous	-
14	845298		Spacer, Handle		Appelez-nous	-
15	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.09
16	488923		Screw (repair)		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8 (2)   (Replaces: 488920)				$ 7.18
17	WP488729		Screw, 8 X 1/2   (Replaces: 487875)			Immediately	$ 7.45
18	WP1101634		Screw Cover   (Replaces: 981182)				$ 8.71
19	482374		Interior, Door Panel		Appelez-nous	-
20	936881		Trim, Door Shelf		Appelez-nous	-
21	839904		Retainer, Door Trim				$ 5.65
22	942156		Butter, Door		Appelez-nous	-
23	942157		Utility, Door		Appelez-nous	-
24	843213		Clip, Medallion		Appelez-nous	-
25	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.45
26	989903		Medallion (golden Harvest)		Appelez-nous	-
26	848382		Medallion (white)		Appelez-nous	-
26	989904		Medallion (almond)		Appelez-nous	-
26	989901		Medallion (coffee)		Appelez-nous	-
26	989902		Medallion (new Avocado)		Appelez-nous	-
27	520747		Tray, Butter		Appelez-nous	-
28	939369		Freezer Door Panel (white)		Appelez-nous	-
28	939370		Freezer Door Panel (coffee)		Appelez-nous	-
28	939371		Freezer Door Panel (golden Harvest)		Appelez-nous	-
28	939372		Freezer Door Panel (new Avocado)		Appelez-nous	-
28	939373		Freezer Door Panel (almond)		Appelez-nous	-
29	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
29	989196		Hole Plug (almond)		Appelez-nous	-
29	989894		Hole Plug (new Avocado)		Appelez-nous	-
29	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 7.37
29	989892		Hole Plug (coffee)		Appelez-nous	-
30	940216		Bracket, Door Stop		Appelez-nous	-
31	836119		Retainer Gasket Side		Appelez-nous	-
32	2188460A		Door Gasket, Magnetic   (Replaces: 986703)				$ 208.36
33	983544		Handle End		Appelez-nous	-
34	982944		Handle, Center		Appelez-nous	-
35	987867		Spacer		Appelez-nous	-
36	848338		Shim, Spacer		Appelez-nous	-
37	481966		Interior Door Panel		Appelez-nous	-
38	837789		Door Shelf Trim		Appelez-nous	-
39	839975		Retainer, Door Trim				$ 5.84
40	849310		Escutcheon, Nameplate		Appelez-nous	-
41	848308		Insert, Nameplate		Appelez-nous	-
42	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
42	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
42	942160		Energy Guide		Appelez-nous	-
42	934325		Service & Wiring Sheet		Appelez-nous	-
42	935170		Guide, Use & Care		Appelez-nous	-
42	877351		List, Parts		Appelez-nous	-
42	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
42	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
42	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
42	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
42	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
42	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
42	942159		Consumer Buy Guide		Appelez-nous	-
42	991259		Tape Strip		Appelez-nous	-
42	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
42	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
42	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
42	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
42	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
42	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
42	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
42	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
42	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
42	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
42	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
42	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
42	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
42	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
42	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
42	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 86.78
42	479502		Tape, Vinyl (1/4`` X 108``)				$ 66.77
	511881		Xlacquer, Aluminum (13 Oz. Spray Can)				$ 278.35
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 84.73
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
