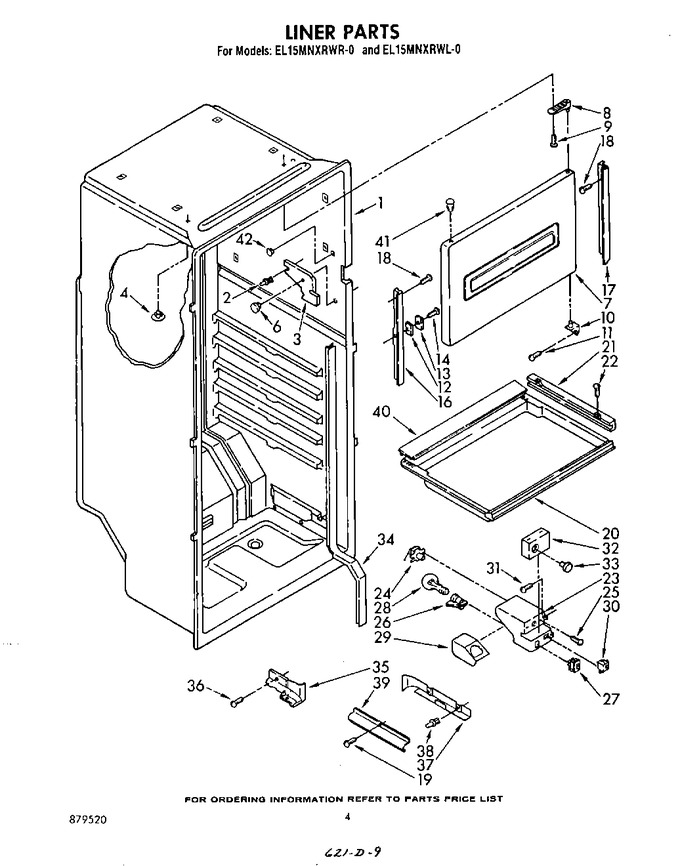

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	939962		Rivet-plastic				$ 12.42
3	944815		Shield, Electrical		Appelez-nous	-
4	845294		Hole Plug		Appelez-nous	-
6	944818		Grommet, Wiring		Appelez-nous	-
7	943605		Door, Evaporator		Appelez-nous	-
8	992778		Hinge, Evaporator Door		Appelez-nous	-
9	W11693756		Screw, 8 X 5/8   (Replaces: 487582)			Immediately	$ 14.76
10	1103729		Support, Evaporator Door		Appelez-nous	-
11	W11693756		Screw, 8-15 X 5/8   (Replaces: 487042)			Immediately	$ 14.76
12	839328		Plate, Magnet (2)		Appelez-nous	-
13	944829		Magnet		Appelez-nous	-
14	488740		Screw, 8 X 1-9/16		Appelez-nous	-
16	943609		Evaporator Door, Baffle Magnet		Appelez-nous	-
17	943610		Evaporator Door, Baffle Side		Appelez-nous	-
18	W11693756		Screw, 8-15 X 5/8   (Replaces: 487042)			Immediately	$ 14.76
19	486214		Screw 8-15 X 1/2		Appelez-nous	-
20	943611		Chiller Tray Assembly		Appelez-nous	-
21	943615		Chiller Slide (2)		Appelez-nous	-
22	WP488163		Screw, 8 X 13/16 (4)   (Replaces: 488208)				$ 7.92
23	943628		Box, Control		Appelez-nous	-
24	944822		Thermostat & Barrier Assembly		Appelez-nous	-
25	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 11.40
26	4387478		Socket   (Replaces: 851067)			Immediately	$ 115.67
27	938049		Switch, Toggle		Appelez-nous	-
28	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 11.30
29	937230		Light Shield		Appelez-nous	-
30	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
31	WP489069		Screw, 8 X 1/2   (Replaces: 488874)			Immediately	$ 8.40
32	944840		Cover, Control Box		Appelez-nous	-
33	845233		Knob, Control		Appelez-nous	-
34	937032		Cover, Tube (rear)		Appelez-nous	-
35	941776		Cover Tube, Bottom		Appelez-nous	-
36	W11693756		Screw, 8-15 X 5/8   (Replaces: 487042)			Immediately	$ 14.76
36	488706		Screw (repair)		Appelez-nous	-
37	939957		Wire Cover (rear)		Appelez-nous	-
38	939961		Rivet, Plastic (2)		Appelez-nous	-
39	939960		Wire Cover (front)		Appelez-nous	-
40	943614		Damper, Chiller		Appelez-nous	-
41	983735		Hole Plug (2)		Appelez-nous	-
42	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
42	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
42	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
42	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
42	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
42	845646		Hole Plug		Appelez-nous	-
42	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
42	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
42	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
42	876370		Fiberglass Insulation (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
42	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
42	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
42	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
42	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
42	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
42	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
42	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
42	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
42	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
42	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
42	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
42	479502		Tape, Vinyl (1/4`` X 108``)				$ 66.77
42	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
42	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
42	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	LIT879520		Parts List		Appelez-nous	-
	LIT943633		Service & Wiring Sheet		Appelez-nous	-
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
