SELECT A DIAGRAM

02 - Cabinet


03 - Liner , Lit/optional


04 - Door

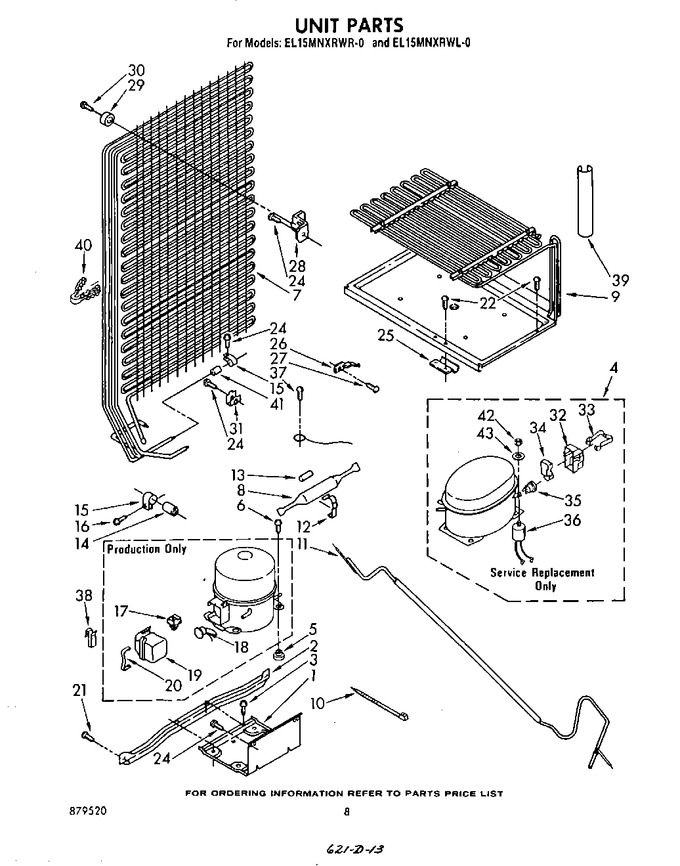

05 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	942860		Unit Mounting Plate		Appelez-nous	-
2	945448		Unit Mounting Rail		Appelez-nous	-
3	WP965173		Screw   (Replaces: 487248)			Immediately	$ 11.87
4	482980		Compressor (includes Items 32, 33, 34, 35, 36, 42, & 43) (also Order 876765 Tube Kit)		Appelez-nous	-
5	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
6	876811		Screw, 1/4-28 X 1   (Replaces: 489116)				$ 7.79
7	943635		Condenser & Precooler Assembly (formed)		Appelez-nous	-
8	W10843121		Drier   (Replaces: 943309)			Immediately	$ 57.13
9	943640		Evaporator Assembly		Appelez-nous	-
10	851095		Strap		Appelez-nous	-
11	943652		Heat Exchanger		Appelez-nous	-
12	547637		Drier Clamp		Appelez-nous	-
13	510446		Restrictor Sleeve		Appelez-nous	-
14	1108064		Dampener		Appelez-nous	-
15	510716		Clamp Tube		Appelez-nous	-
16	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 22.22
17	938385		Relay		Appelez-nous	-
18	941605		Overload		Appelez-nous	-
19	1108144		Terminal Cover		Appelez-nous	-
20	938384		Strap, Cover		Appelez-nous	-
21	489340		Screw, 5/16-18 X 5/8   (Replaces: 488683)		Appelez-nous	-
22	488839		Screw (repair)		Appelez-nous	-
22	486214		Screw, 8-15 X 1/2 (4)		Appelez-nous	-
24	WP489069		Screw,8x1/2 (2)   (Replaces: 488480)			Immediately	$ 8.40
25	944817		Clamp, Capillary Tube		Appelez-nous	-
26	944839		Hold Down Heat Exchanger		Appelez-nous	-
27	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
28	510721		Condenser Bracket (top)		Appelez-nous	-
29	204349		Bumper, Rubber		Appelez-nous	-
30	487888		Screw, 8 X 7/8		Appelez-nous	-
31	4386951		Clip, Condenser   (Replaces: 942852)		Appelez-nous	-
32	1105015		Cover, Terminal		Appelez-nous	-
33	938384		Strap		Appelez-nous	-
34	1100806		Relay		Appelez-nous	-
35	1100807		Overload		Appelez-nous	-
36	482996		Capacitor		Appelez-nous	-
37	303776		Screw, Ground   (Replaces: 488879)		Appelez-nous	-
38	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
39	946459		Cover, Connecting Lines		Appelez-nous	-
40	942739		Clip Tube (2)		Appelez-nous	-
41	945593		Dampener		Appelez-nous	-
42	489142		Nut		Appelez-nous	-
43	876764		Valve, Access(3/16``)			Immediately	$ 95.92
43	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
43	978028		Valve, Access (1/2)		Appelez-nous	-
43	978029		Valve Access (5/8``)				$ 93.85
43	978030		Valve, Access (3/4``)				$ 137.25
43	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
43	489143		Washer		Appelez-nous	-
43	978026		Valve, Access (5/16``)			Immediately	$ 134.49

    View Diagram in Separate Window       Print Part List
