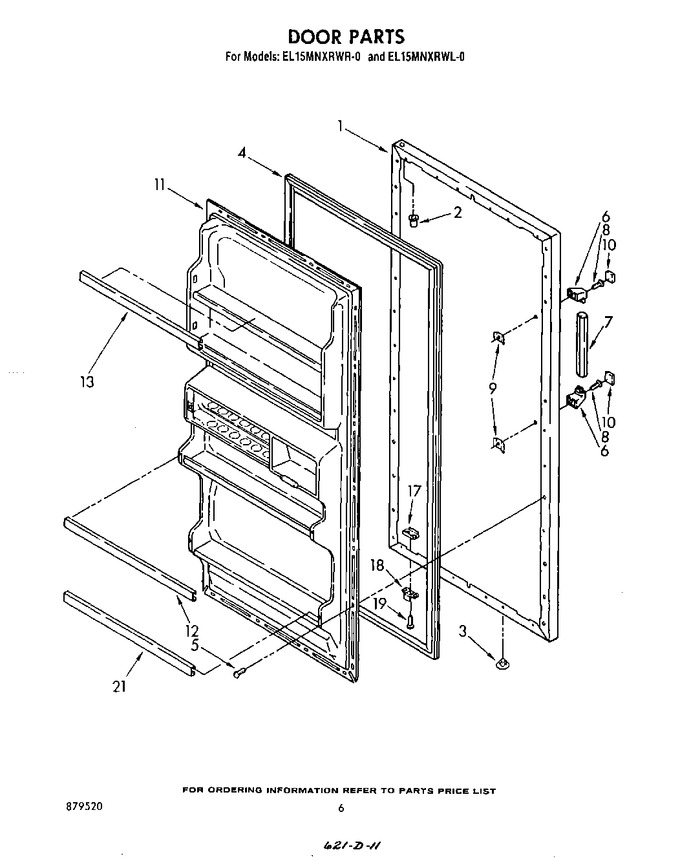

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	946373		Refrigerator Door Panel R.h. (coffee)		Appelez-nous	-
1	1100695		Refrigerator Door Panel R.h. (platinum)		Appelez-nous	-
1	1100693		Refrigerator Door Panel R.h. (platinum)		Appelez-nous	-
1	943620		Refrigerator Door Panel R.h. (white)		Appelez-nous	-
1	1100696		Refrigerator Door Panel R.h. (toast)		Appelez-nous	-
1	946376		Refrigerator Door Panel R.h. (almond)		Appelez-nous	-
1	946375		Refrigerator Door Panel R.h. (golden Harvest)		Appelez-nous	-
1	943618		Refrigerator Door Panel R.h. (white)		Appelez-nous	-
1	946369		Refrigerator Door Panel R.h. (coffee)		Appelez-nous	-
1	946371		Refrigerator Door Panel R.h. (golden Harvest)		Appelez-nous	-
1	946372		Refrigerator Door Panel R.h. (almond)		Appelez-nous	-
1	1100694		Refrigerator Door Panel R.h. (toast)		Appelez-nous	-
2	509929		Cap, Hinge Sleeve (2)		Appelez-nous	-
3	534927		Hole Plug (2)		Appelez-nous	-
4	2188436A		Door, Gasket Magnetic   (Replaces: 1100691)				$ 362.29
5	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
5	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
6	1110068		End, Door Handle		Appelez-nous	-
7	1110069		Door Handle, Center		Appelez-nous	-
8	488987		Screw, 8-15 X 1-5/8		Appelez-nous	-
9	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
10	1110070		End Cover, Door Handle (2)		Appelez-nous	-
11	1106141		Panel, Interior Door		Appelez-nous	-
12	1110127		Trim, Door Shelf (2)		Appelez-nous	-
13	1110126		Trim, Door Shelf (2)		Appelez-nous	-
17	943185		Tap Plate		Appelez-nous	-
18	944036		Bracket, Door Stop		Appelez-nous	-
19	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
19	488930		Screw (repair)		Appelez-nous	-
21	1110128		Trim, Door Shelf		Appelez-nous	-
