02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Breaker And Partition


06 - Shelf


07 - Icemaker


08 - Unit


09 - Liner, Lit/optional

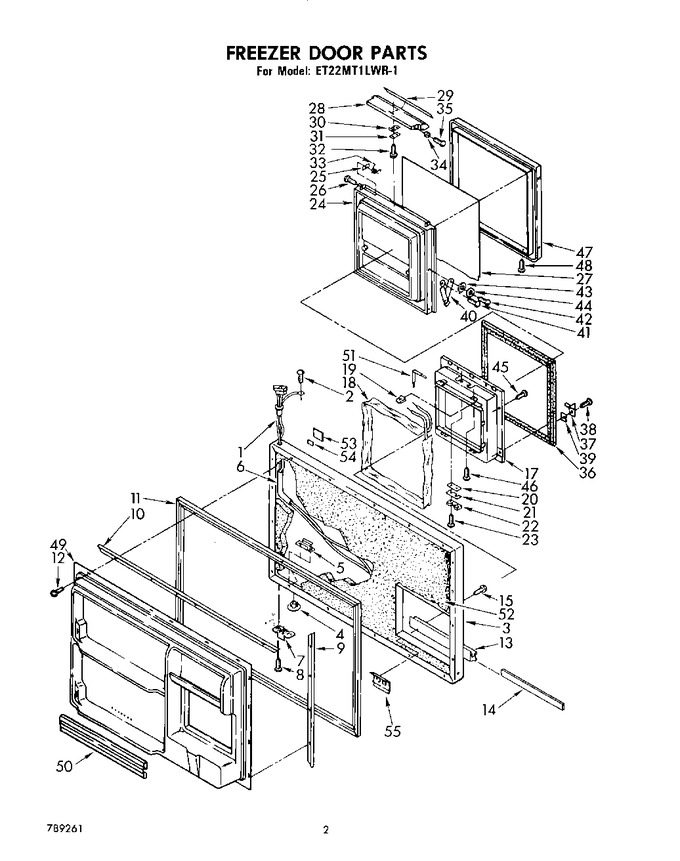

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	936187		Freezer, Crossover		Appelez-nous	-
2	WP488234		Screw, 8-32 X 5/32   (Replaces: 488889)				$ 6.37
3	1101346		Freezer, Door Panel (toast)		Appelez-nous	-
3	942978		Freezer, Door Panel (white)		Appelez-nous	-
3	942979		Freezer, Door Panel (coffee)		Appelez-nous	-
3	942980		Freezer, Door Panel (golden Harvest)		Appelez-nous	-
3	942982		Freezer, Door Panel (almond)		Appelez-nous	-
3	1101347		Freezer, Door Panel (platinum)		Appelez-nous	-
4	534927		Hole Plug		Appelez-nous	-
5	943185		Tap Plate		Appelez-nous	-
6	991372		Tube, Door Wiring		Appelez-nous	-
7	944035		Bracket, Door Stop		Appelez-nous	-
8	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
8	488930		Screw (repair)		Appelez-nous	-
9	981033		Retainer, Gasket Side (2)		Appelez-nous	-
10	836118		Retainer, Gasket Top & Bottom (2)		Appelez-nous	-
11	943057		Gasket, Magnetic Door		Appelez-nous	-
11	986705		Gasket, Magnetic Door (for Platinum Model Only)		Appelez-nous	-
12	WP489069		Screw, 7 X 1/2   (Replaces: 489089)			Immediately	$ 7.56
12	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.62
13	989199		Handle, Freezer Door		Appelez-nous	-
14	1101350		Insert, Handle (toast)		Appelez-nous	-
14	943295		Insert, Handle (white & Coffee)		Appelez-nous	-
14	1101351		Insert, Handle (platinum)		Appelez-nous	-
14	943069		Insert, Handle (almond)		Appelez-nous	-
14	989702		Insert, Handle (golden Harvest)		Appelez-nous	-
15	488932		Screw (repair)		Appelez-nous	-
15	718257		Screw, 8 X 1-3/8   (Replaces: 489100)		Appelez-nous	-
17	1101211		Housing, Door (for Platinum Model Only)		Appelez-nous	-
17	942237		Housing, Door		Appelez-nous	-
18	989473		Heater, Housing		Appelez-nous	-
19	488390		Speed Nut		Appelez-nous	-
20	988651		Retainer, Clip Strike		Appelez-nous	-
21	988666		Shim, Strike		Appelez-nous	-
22	988649		Strike, Latch		Appelez-nous	-
23	WP488787		Screw, 8 X 1/2   (Replaces: 487212)				$ 10.13
24	1101213		Door, Tilt Ice (for Platinum Model Only)		Appelez-nous	-
24	942994		Door, Tilt Ice		Appelez-nous	-
25	988650		Retainer Clip		Appelez-nous	-
26	487980		Screw (repair)		Appelez-nous	-
26	W11693756		Screw, 8-18 X 3/4   (Replaces: 487510)			Immediately	$ 13.28
27	943299		Overlay, Door		Appelez-nous	-
28	988629		Handle, Door Tilt Ice		Appelez-nous	-
29	988663		Insert, Handle		Appelez-nous	-
30	988647		Latch, Door		Appelez-nous	-
31	988725		Retainer, Latch		Appelez-nous	-
32	WP488627		Screw, 8 X 1/2   (Replaces: 489045)				$ 7.30
33	988727		Spring, Handle (left Side)		Appelez-nous	-
33	988726		Spring, Handle (right Side)		Appelez-nous	-
34	988730		Spacer, Handle		Appelez-nous	-
35	W11693756		Screw   (Replaces: 488967)			Immediately	$ 13.28
36	988654		Gasket, Door Tilt Ice (for Platinum Model Only)		Appelez-nous	-
36	942995		Gasket, Door Tilt Ice		Appelez-nous	-
37	936910		Hinge, Door		Appelez-nous	-
38	WP488163		Screw   (Replaces: 488540)				$ 7.13
39	988728		Shim, Hinge		Appelez-nous	-
40	988658		Door Stop		Appelez-nous	-
41	488953		Screw, 10-32 X 5/16		Appelez-nous	-
42	WP488729		Screw, 8-15 X 7/16   (Replaces: 487462)			Immediately	$ 7.45
43	488944		Washer, Plain		Appelez-nous	-
44	488945		Lockwasher		Appelez-nous	-
45	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 13.28
46	WP488729		Screw, 8 X 1/2   (Replaces: 487539)			Immediately	$ 7.45
47	935055		Front, Cover Housing (golden Harvest)		Appelez-nous	-
47	943070		Front, Cover Housing (almond)		Appelez-nous	-
47	1100396		Front, Cover Housing (platinum)		Appelez-nous	-
47	1100395		Front, Cover Housing (toast)		Appelez-nous	-
47	943293		Front, Cover Housing (white)		Appelez-nous	-
48	487820		Screw		Appelez-nous	-
49	1101358		Interior Door Panel (for Platinum Model Only)		Appelez-nous	-
49	942247		Interior Door Panel		Appelez-nous	-
50	942961		Trim, Door Shelf		Appelez-nous	-
51	482672		Seal		Appelez-nous	-
52	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
53	945116		Nameplate		Appelez-nous	-
54	991259		Tape Strip		Appelez-nous	-
55	941242		Screw Anchor (2)		Appelez-nous	-
