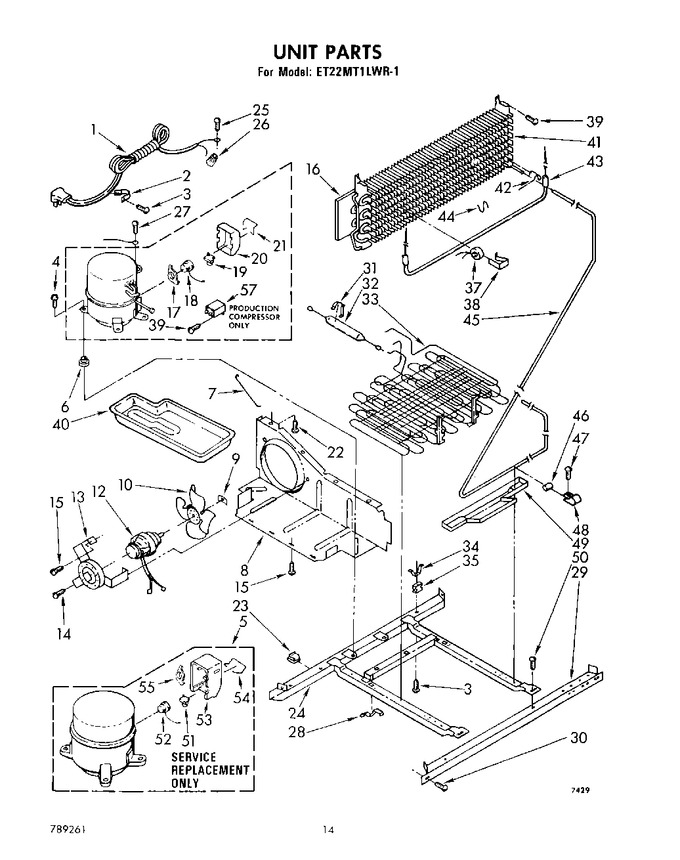

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	850626		Cord, Service		Appelez-nous	-
2	549193		Clamp				$ 12.65
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
4	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.01
5	482614		Compressor (include Items 51, 52, 53, 54 & 55) (also Order 876765 Tube Kit)		Appelez-nous	-
6	876811		Grommet (4)   (Replaces: 1100826)				$ 7.01
7	850156		Guard, Fan		Appelez-nous	-
8	850391		Baffle, Air		Appelez-nous	-
9	WP486692		Speednut, 1/4-20   (Replaces: 486692)				$ 7.59
10	989524		Fan		Appelez-nous	-
12	833697		Motor   (Replaces: 945583)			Immediately	$ 98.23
13	548695		Bracket		Appelez-nous	-
14	488868		Screw (3)		Appelez-nous	-
15	488624		Screw, 8 X 3/8		Appelez-nous	-
16	981736		Baffle, Air		Appelez-nous	-
17	943494		Overload Spring		Appelez-nous	-
18	945536		Overload		Appelez-nous	-
19	945535		Relay		Appelez-nous	-
20	943496		Case		Appelez-nous	-
21	943497		Spring		Appelez-nous	-
22	488978		Screw, 8-15 X 3/8		Appelez-nous	-
23	548745		Clip, Wire (2)		Appelez-nous	-
24	945463		Frame		Appelez-nous	-
25	488474		Screw, 8-32 X 3/8		Appelez-nous	-
26	227991		Connector Wire		Appelez-nous	-
27	303776		Screw, 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-
28	548744		Clip (2)		Appelez-nous	-
29	548662		Rail, Front		Appelez-nous	-
30	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
31	548508		Clamp		Appelez-nous	-
32	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 51.42
33	945525		Condenser & Precooler		Appelez-nous	-
34	548738		Clamp (4)		Appelez-nous	-
35	943447		Grommet (4)		Appelez-nous	-
37	WP4387489		Bimetal, Defrost   (Replaces: 989685)				$ 98.09
38	513584		Clamp		Appelez-nous	-
39	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 13.28
40	849331		Tray, Evaporator		Appelez-nous	-
41	1105112		Evaporator		Appelez-nous	-
42	850721		Clip, Heater (2)		Appelez-nous	-
43	992911		Heater, Defrost		Appelez-nous	-
44	851358		Support, Heater		Appelez-nous	-
45	945531		Exchanger, Heat		Appelez-nous	-
46	510769		Dampener (2)		Appelez-nous	-
47	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 20.00
48	510716		Clamp (2)		Appelez-nous	-
49	945572		Pan, Drip		Appelez-nous	-
50	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
51	989509		Relay		Appelez-nous	-
52	989518		Overload		Appelez-nous	-
53	549505		Cover		Appelez-nous	-
54	549342		Strap		Appelez-nous	-
55	549086		Overload Spring		Appelez-nous	-
57	876764		Valve, Access(3/16``)			Immediately	$ 86.33
57	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
57	978028		Valve, Access (1/2)		Appelez-nous	-
57	978029		Valve Access (5/8``)				$ 93.85
57	978030		Valve, Access (3/4``)				$ 123.53
57	1105106		Running Capacitor (use With Production Compressor Only)		Appelez-nous	-
57	97802		Valve, Access (1/4``)		Appelez-nous	-
57	978026		Valve, Access (5/16``)			Immediately	$ 121.04
