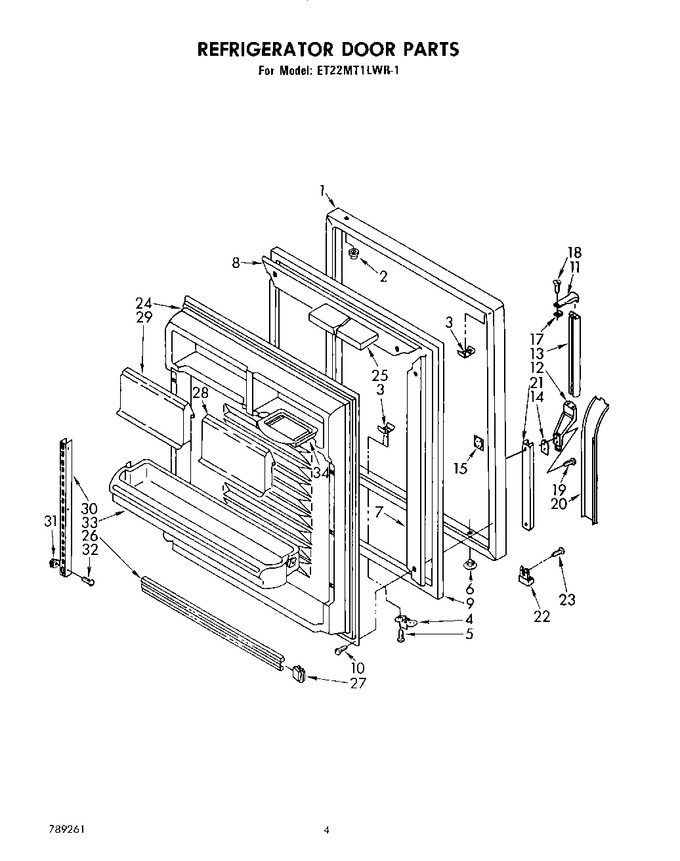

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944217		Refrigerator Door Panel (almond)		Appelez-nous	-
1	1101339		Refrigerator Door Panel (platinum)		Appelez-nous	-
1	1101338		Refrigerator Door Panel (toast)		Appelez-nous	-
1	944213		Refrigerator Door Panel (white)		Appelez-nous	-
1	944214		Refrigerator Door Panel (coffee)		Appelez-nous	-
1	944215		Refrigerator Door Panel (golden Harvest)		Appelez-nous	-
2	509929		Cap, Hinge Sleeve		Appelez-nous	-
3	943185		Tap Plate		Appelez-nous	-
4	944036		Bracket, Door Stop		Appelez-nous	-
5	488930		Screw (repair)		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
6	534927		Hole Plug		Appelez-nous	-
7	981032		Retainer, Gasket Side		Appelez-nous	-
8	836118		Retainer, Gasket Top & Bottom		Appelez-nous	-
9	986704		Door, Gasket Magnetic (for Platinum Model Only)		Appelez-nous	-
9	943055		Door, Gasket Magnetic		Appelez-nous	-
10	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.62
10	WP489069		Screw, 7 X 1/2   (Replaces: 489089)			Immediately	$ 7.56
11	944157		Handle, End Cap		Appelez-nous	-
12	935103		Handle, Center Cap		Appelez-nous	-
13	1100192		Center, Handle (toast)		Appelez-nous	-
13	1100193		Center, Handle (platinum)		Appelez-nous	-
13	944158		Handle, Center (white & Coffee)		Appelez-nous	-
13	935084		Handle, Center (golden Harvest)		Appelez-nous	-
13	943068		Handle Center (almond)		Appelez-nous	-
14	935075		Shim, Center Handle		Appelez-nous	-
15	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.09
17	943188		Spacer, Handle Door				$ 7.80
18	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.18
18	488923		Screw (repair)		Appelez-nous	-
19	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
20	942012		Insert, Handle		Appelez-nous	-
21	942011		Retainer, Insert		Appelez-nous	-
22	941259		End Cap		Appelez-nous	-
23	489075		Screw, 10-32 X 5/8		Appelez-nous	-
24	943136		Interior, Door Panel		Appelez-nous	-
24	1101330		Interior, Door Panel (for Platinum Model Only)		Appelez-nous	-
25	849802		Door Dike		Appelez-nous	-
26	935918		Trim, Door Shelf		Appelez-nous	-
27	943138		Retainer Door Trim		Appelez-nous	-
27	988709		Retainer, Door Trim (for Platinum Model Only)		Appelez-nous	-
28	935208		Door, Butter		Appelez-nous	-
29	935209		Door, Utility		Appelez-nous	-
30	839430		Shelf Ladder, Door		Appelez-nous	-
31	537095		Expansion Clip		Appelez-nous	-
32	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.45
33	943137		Cantilever, Door Shelf		Appelez-nous	-
33	1101331		Cantilever, Door Shelf (for Platinum Model Only)		Appelez-nous	-
34	520747		Tray, Butter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
