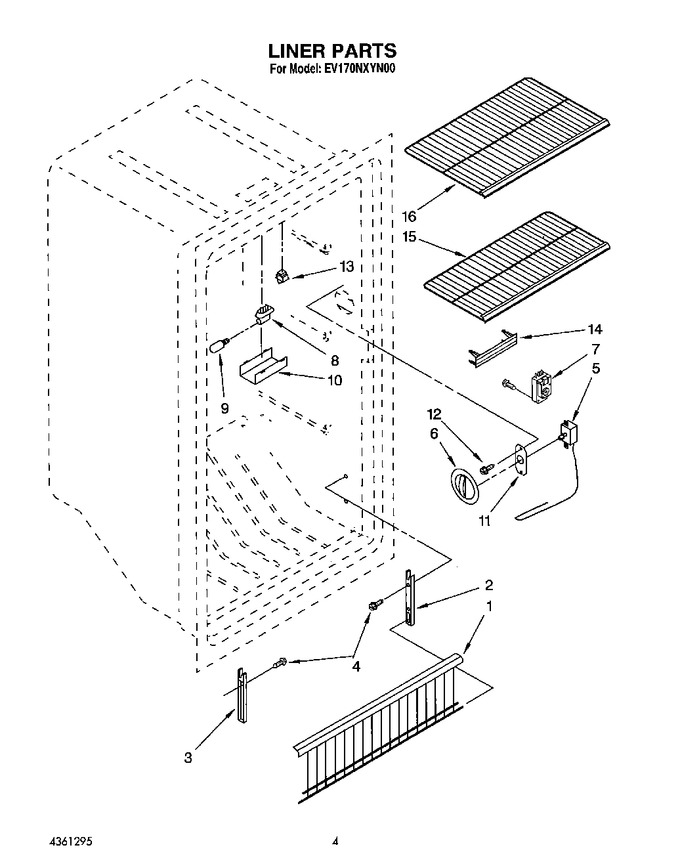

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4356888		Gate		Appelez-nous	-
2	4356889		Support, Fence, (r.h.)		Appelez-nous	-
3	4356890		Support, Fence, (l.h.)		Appelez-nous	-
4	4356891		Screw (4)		Appelez-nous	-
5	WP4-83053-003		Thermostat   (Replaces: 4356926)				$ 229.46
6	4356802		Thermostat Knob		Appelez-nous	-
7	W10822278		Timer, Defrost   (Replaces: 4356929)			Immediately	$ 31.00
8	4356874		Socket, Lamp		Appelez-nous	-
9	W10873798		Light Bulb   (Replaces: 4356875)			Immediately	$ 13.16
10	4356934		Light Shield		Appelez-nous	-
11	1-81154		Thermostat, Plate   (Replaces: 4356806)				$ 13.50
12	4356809		Screw		Appelez-nous	-
13	W11384469		Light Switch   (Replaces: 4356873)			Immediately	$ 35.18
14	WP3-80414-103		Vent Plug   (Replaces: 4356938)				$ 12.15
15	4356922		Shelf, Small		Appelez-nous	-
16	4356921		Shelf, Large		Appelez-nous	-
