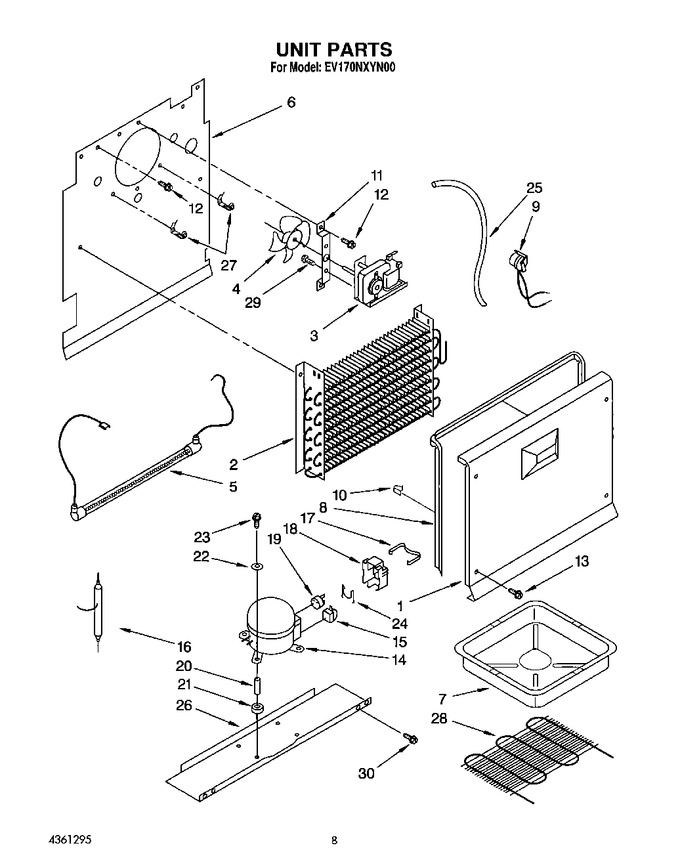

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4356917 | Cover, Evaporator |
|
- | |||||
| 2 | WP4-81546 | Evaporator (Replaces: 4356918) |
|
$ 404.47 | |||||
| 3 | 4356919 | Fan Motor |
|
- | |||||
| 4 | WPW10445742 | Fan Blade (Replaces: 4356920) |
|
Immediately | $ 9.50 | ||||
| 5 | W11175809 | Heater Defrost (Replaces: 4356923) |
|
Immediately | $ 165.70 | ||||
| 6 | 4356924 | Shield Heater |
|
- | |||||
| 7 | 4356925 | Drain Pan |
|
- | |||||
| 8 | 4356927 | Gasket, Cover Evaporator |
|
- | |||||
| 9 | 4356928 | Bi-metal Defrost |
|
- | |||||
| 10 | 4356941 | Clip |
|
- | |||||
| 11 | 2-80028-101 | Bracket, Motor (Replaces: 4356942) |
|
$ 88.81 | |||||
| 12 | 60001022 | Screw, Motor (Replaces: 4356943) |
|
$ 59.77 | |||||
| 13 | 4356944 | Screw (4) |
|
- | |||||
| 14 | 4356856 | Compressor |
|
- | |||||
| 15 | 4356857 | Relay |
|
- | |||||
| 16 | W10843121 | Drier (Replaces: 4356935) |
|
Immediately | $ 51.42 | ||||
| 17 | 4356951 | Clip, Cover |
|
- | |||||
| 18 | 4356946 | Cover |
|
- | |||||
| 19 | 4356858 | Overload |
|
- | |||||
| 20 | 4356846 | Sleeve |
|
$ 13.50 | |||||
| 21 | 4356855 | Compressor Grommet |
|
- | |||||
| 22 | 4356847 | Washer |
|
- | |||||
| 23 | 4356852 | Screw, Compressor |
|
$ 6.57 | |||||
| 24 | 4356945 | Overload Spring |
|
- | |||||
| 25 | WP4357245 | Heat, Exchanger (Replaces: 4356936) |
|
Immediately | $ 255.83 | ||||
| 26 | 4356939 | Compressor Pan |
|
- | |||||
| 27 | 4356952 | Thermostat, Clip |
|
- | |||||
| 28 | 4356950 | Precooler |
|
- | |||||
| 29 | WP3400094 | Screw (Replaces: 4356970) |
|
$ 8.33 | |||||
| 30 | WP3-24838-048 | Screw (Replaces: 4356820) |
|
$ 7.50 |
