SELECT A DIAGRAM

02 - Cabinet, Lit/optional


03 - Liner

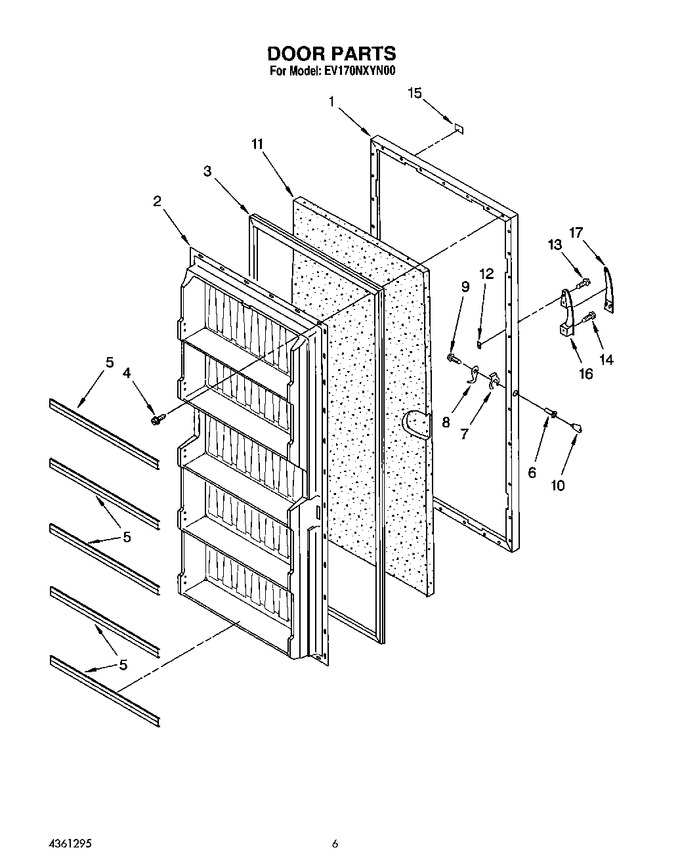

04 - Door


05 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4356933		Exterior Door Almond		Appelez-nous	-
2	4356930		Interior Panel		Appelez-nous	-
3	WP4357142		Gasket (brown)   (Replaces: 4356931)			Immediately	$ 275.62
4	WP489478		Screw   (Replaces: 4356810)				$ 7.36
5	4356932		Trim Shelf		Appelez-nous	-
6	4357145		Lock, Body   (Replaces: 4356839)				$ 25.01
7	4356842		Spring, Clip Mounting				$ 12.24
8	3-35284-001		Lock, Bolt   (Replaces: 4356841)				$ 25.64
9	WP489478		Screw, Lock Bolt   (Replaces: 4356843)				$ 7.36
10	WP4356840		Key   (Replaces: 4356840)				$ 10.15
11	876370		Fiberglass Insulation				$ 218.83
12	4356812		Anchor, Screw		Appelez-nous	-
13	302717		Screw		Appelez-nous	-
14	488839		Screw		Appelez-nous	-
15	4356940		Nameplate		Appelez-nous	-
16	4356895		Handle		Appelez-nous	-
17	4356896		Insert, Nameplate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
