SELECT A DIAGRAM

01 - Cabinet


02 - Liner, Lit/optional


03 - Door


04 - Unit

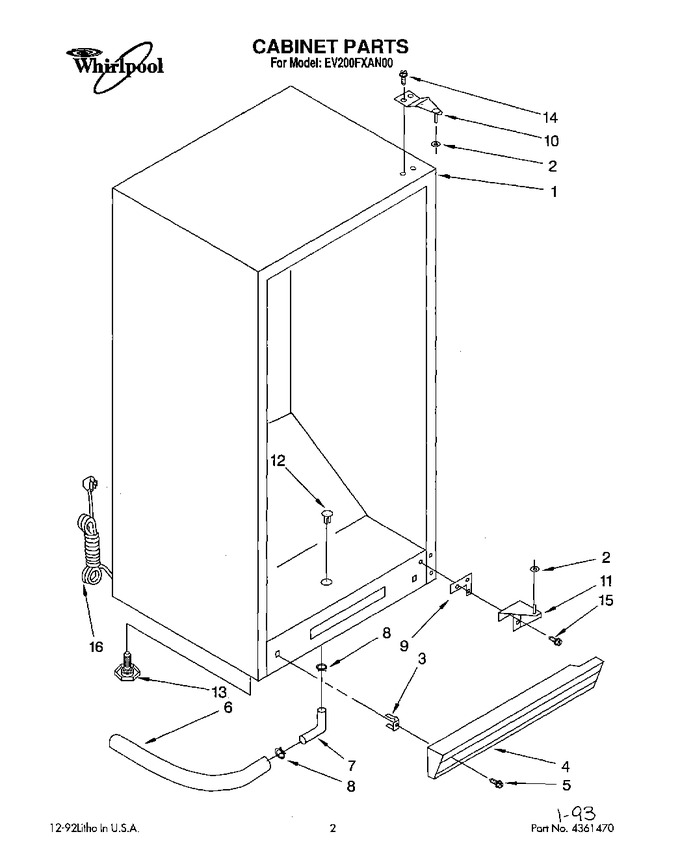

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W10851331		Washer, Door Spacer   (Replaces: 4356801)				$ 9.51
3	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 10.35
4	4356967		Grille (coffee)		Appelez-nous	-
5	WP489478		Screw   (Replaces: 4356805)				$ 7.36
6	4356824		Drain Hose		Appelez-nous	-
7	4356825		Tube, Drain		Appelez-nous	-
8	4356827		Hose Clamp		Appelez-nous	-
9	4356828		Shim, Bottom				$ 12.40
10	4356965		Top, Hinge		Appelez-nous	-
11	4356953		Bottom, Hinge		Appelez-nous	-
12	4356835		Drain Plug		Appelez-nous	-
13	W11117769		Leg, Leveler   (Replaces: 4356869)			Immediately	$ 17.43
14	WP8204624		Top, Hinge Screw   (Replaces: 4356830)				$ 15.73
15	4356822		Lower, Hinge Screw		Appelez-nous	-
16	4356976		Power Cord		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
