SELECT A DIAGRAM

01 - Cabinet


02 - Liner, Lit/optional


03 - Door


04 - Unit

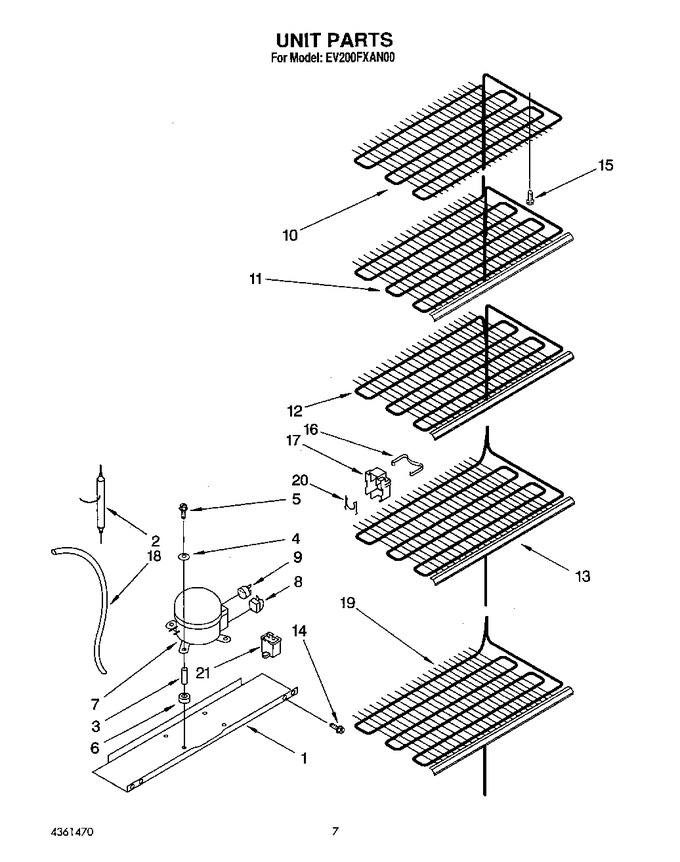

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4356972		Compressor Mounting Pan		Appelez-nous	-
2	W10843121		Drier Assembly   (Replaces: 4356935)			Immediately	$ 51.42
3	4356846		Compressor Grommet Sleeve				$ 13.50
4	4356847		Washer		Appelez-nous	-
5	4356852		Compressor Mounting Screw				$ 6.57
6	4356855		Compressor Grommet		Appelez-nous	-
7	4356973		Compressor		Appelez-nous	-
8	4356994		Relay		Appelez-nous	-
9	4356974		Overload		Appelez-nous	-
10	4356962		Evaporator Top		Appelez-nous	-
11	4356966		Evaporator Shelf (one)		Appelez-nous	-
12	4356957		Evaporator Shelf (two)		Appelez-nous	-
13	4356958		Evaporator Shelf (three)		Appelez-nous	-
14	WP3-24838-048		Compressor Pan Screw   (Replaces: 4356820)				$ 7.50
15	4356851		Evaporator, Mounting Screw		Appelez-nous	-
16	4356951		Clip, Cover		Appelez-nous	-
17	4356946		Cover		Appelez-nous	-
18	4356956		Heat Exchanger		Appelez-nous	-
19	4356960		Evaporator Shelf (four)		Appelez-nous	-
20	4356945		Overload Spring		Appelez-nous	-
21	WPW10662129		Capacitor   (Replaces: 4356995)			Immediately	$ 52.97
