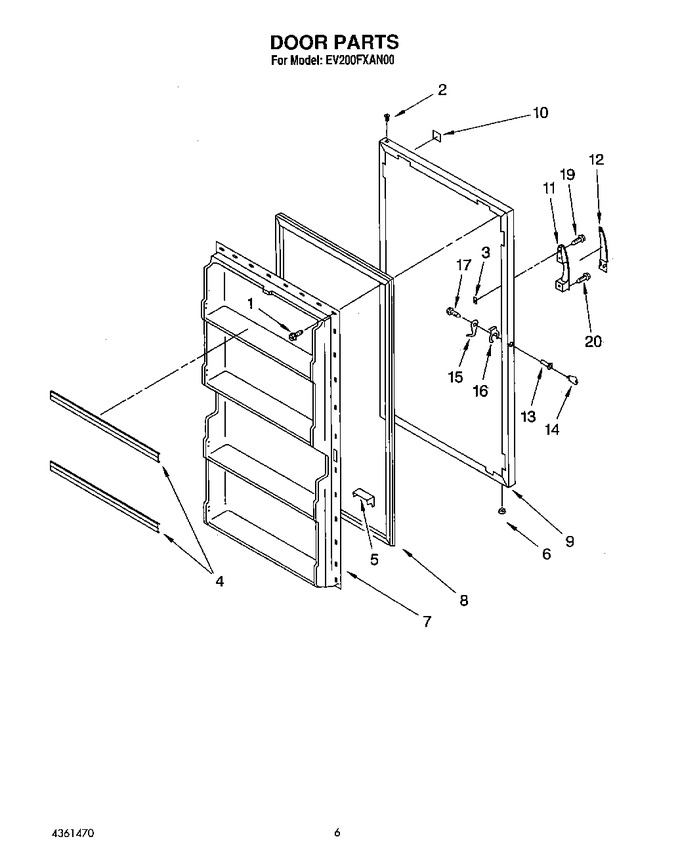

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489478		Screw   (Replaces: 4356810)				$ 7.36
2	4356811		Hinge, Bushing		Appelez-nous	-
3	4356812		Anchor, Screw		Appelez-nous	-
4	4356961		Door Shelf Trim (6)		Appelez-nous	-
5	4356893		Foam Block		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4356894)				$ 10.21
7	4356968		Interior Door		Appelez-nous	-
8	WP4-81049-001		Door Gasket   (Replaces: 4356971)				$ 344.30
9	4356975		Exterior Door (almond) (includes Insulation)		Appelez-nous	-
10	4356940		Nameplate		Appelez-nous	-
11	4356895		Handle, Chrome		Appelez-nous	-
12	4356896		Handle, Insert (almond)		Appelez-nous	-
13	4357145		Lock, Body   (Replaces: 4356839)				$ 25.01
14	WP4356840		Key   (Replaces: 4356840)				$ 10.15
15	3-35284-001		Lock, Bolt   (Replaces: 4356841)				$ 25.64
16	4356842		Spring, Clip Mounting				$ 12.24
17	WP489478		Screw, Lock Bolt   (Replaces: 4356843)				$ 7.36
19	302717		Screw, Handle		Appelez-nous	-
20	488839		Screw		Appelez-nous	-
