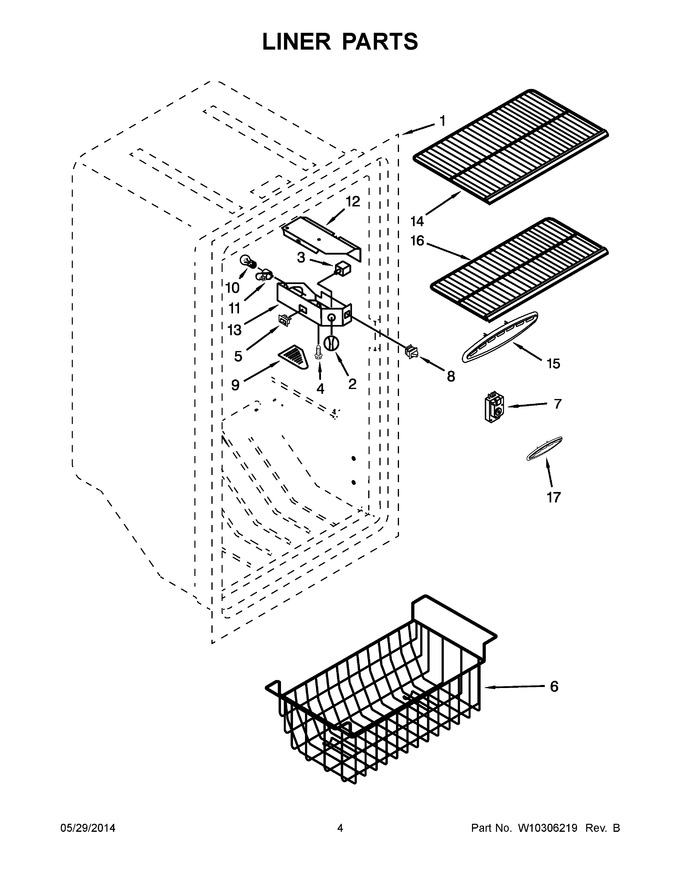

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 27.09
3	WP4-83053-002		Thermostat   (Replaces: 8210344)				$ 231.06
4	WPW10068250		Screw   (Replaces: 4357042)				$ 3.84
5	W10264530		Switch, Alarm		Appelez-nous	-
6	4390632		Basket, Wire		Appelez-nous	-
7	WP3-81329		Timer, Defrost   (Replaces: 4357124)			Immediately	$ 179.23
8	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 35.18
9	8210349		Lens, Light				$ 33.01
10	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 10.17
11	WP3-82393-001		Socket, Light   (Replaces: 8210350)				$ 101.46
12	8210351		Shield, Light				$ 42.03
13	8210377		Box, Control		Appelez-nous	-
14	WP4-82634-001		Shelf, Upper Wire   (Replaces: W10164533)				$ 140.00
15	W10258753		Air Diffuser, Upper		Appelez-nous	-
16	WP4-82977-001		Shelf, Lower Wire   (Replaces: W10258752)				$ 137.48
17	4-82573-002		Diffuser   (Replaces: W10258754)		Appelez-nous	-
