New Model Search:

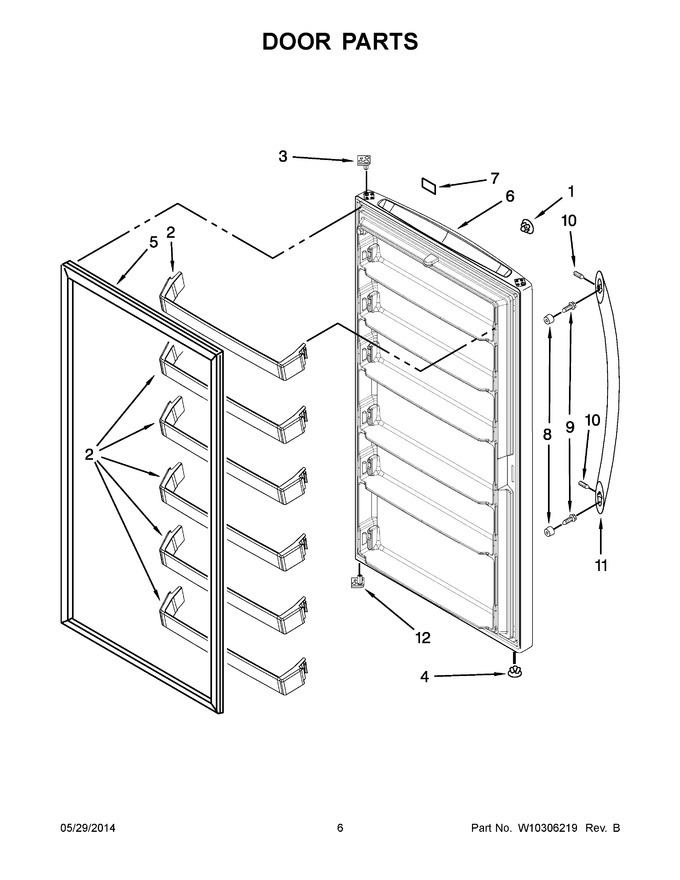

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2189000 | Plug, Button (Replaces: 4390596) |
|
Immediately | $ 7.77 | ||||
| 2 | WP4-65451-001 | Rail, Door (Replaces: 8210404) |
|
$ 99.84 | |||||
| 3 | 8210401 | Stop, Door (upper) |
|
- | |||||
| 4 | 3-24898-007 | Plug, Vent (Replaces: 4357067) |
|
$ 11.34 | |||||
| 5 | WP4-65151-004 | Gasket, Door (Replaces: 8210341) |
|
$ 382.94 | |||||
| 6 | W10296509 | Door Assembly |
|
$ 585.63 | |||||
| 7 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 8 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 9.66 | ||||
| 9 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 10 | 8533976 | Screw, Set |
|
$ 8.35 | |||||
| 11 | WP2254600W | Handle, Door (Replaces: 2254600W) |
|
$ 246.90 | |||||
| 12 | 8210400 | Stop, Door |
|
- |
