01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

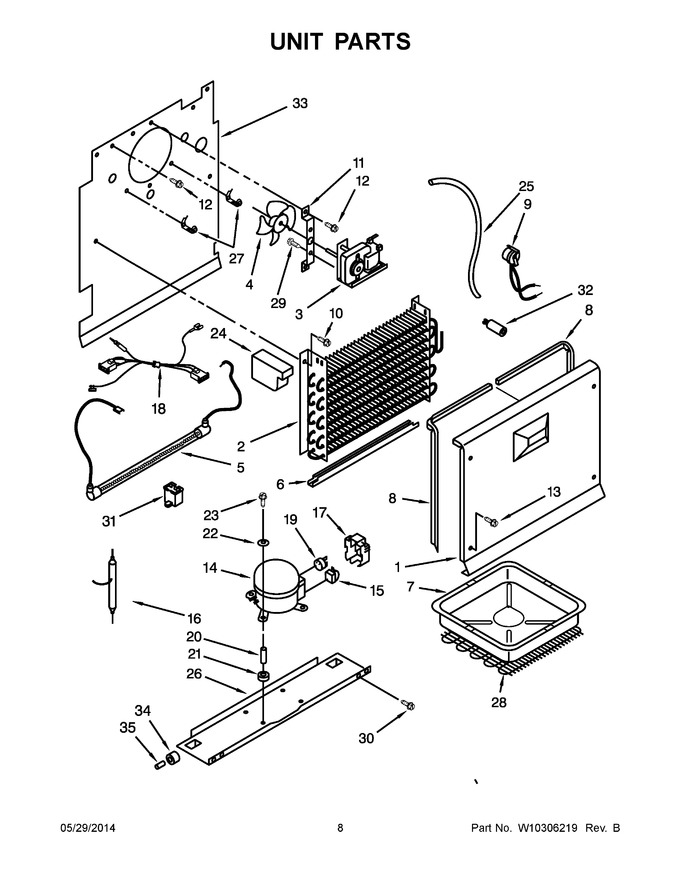

| 1 | 4390662 | Cover, Evaporator |
|
$ 147.35 | |||||
| 2 | WP4-81546 | Evaporator (Replaces: 4357244) |
|
$ 404.47 | |||||
| 3 | WP3-60336-001 | Motor, Fan (Replaces: 4390914) |
|
Immediately | $ 305.80 | ||||
| 4 | WPW10445742 | Fan Blade (Replaces: 4390912) |
|
Immediately | $ 9.50 | ||||
| 5 | WP3-80405-003 | Heater, Defrost (Replaces: W10164625) |
|
$ 189.26 | |||||
| 6 | W10164624 | Shield, Heater |
|
- | |||||
| 7 | W10164623 | Pan, Drain |
|
- | |||||
| 8 | 4390664 | Gasket, Cover Evaporator (left Hand) |
|
$ 84.21 | |||||
| 8 | 4390663 | Gasket, Cover Evaporator (right Hand) |
|
$ 225.86 | |||||
| 9 | WP1-81801-001 | Bi-metal, Defrost (Replaces: 8210253) |
|
Immediately | $ 116.88 | ||||
| 10 | WP3-24004-109 | Screw (Replaces: 4357110) |
|
$ 8.23 | |||||
| 11 | 2-80028-101 | Bracket, Motor (Replaces: 4357129) |
|
$ 88.81 | |||||
| 12 | 60001022 | Screw (Replaces: 4356943) |
|
$ 59.77 | |||||
| 13 | WP3-24004-109 | Screw (Replaces: 4357110) |
|
$ 8.23 | |||||
| 14 | W10309994 | Compressor (Replaces: W10296788) |
|
Immediately | $ 579.20 | ||||
| 15 | WPW10189190 | Relay (Replaces: 4357156) |
|
Immediately | $ 118.16 | ||||
| 16 | 4001 | Drier (Replaces: 4357299) |
|
Immediately | $ 9.64 | ||||
| 17 | W10393770 | Cover (Replaces: W10296787) |
|
$ 103.60 | |||||
| 18 | 4-81785-001 | Harness, Fan (Replaces: 8210426) |
|
- | |||||
| 20 | 4356846 | Sleeve |
|
$ 13.50 | |||||
| 21 | 4356335 | Grommet |
|
- | |||||
| 22 | 4356847 | Washer |
|
- | |||||
| 23 | 8210220 | Bolt |
|
- | |||||
| 24 | 1-80252-101 | Block, Foam (Replaces: 8210261) |
|
$ 6.16 | |||||
| 25 | 4357263 | Exchanger, Heat |
|
$ 123.66 | |||||
| 26 | W10261376 | Pan, Compressor |
|
- | |||||
| 27 | 4356952 | Clip, Thermostat |
|
- | |||||
| 28 | W10451951 | Condenser (Replaces: 8210248) |
|
$ 270.66 | |||||
| 29 | WP3400094 | Screw (Replaces: 4356970) |
|
$ 8.33 | |||||
| 30 | WP3-24838-048 | Screw (Replaces: 4357277) |
|
$ 7.50 | |||||
| 31 | 3-35956-013 | Capacitor (Replaces: 8210224) |
|
$ 109.01 | |||||
| 32 | 4356335 | Grommet |
|
- | |||||
| 33 | 4357123 | Shield |
|
- | |||||
| 34 | 3-60315-001 | Roller (Replaces: 4390754) |
|
$ 29.60 | |||||
| 35 | 4390755 | Axle, Roller |
|
$ 13.86 | |||||
| NI | N/P | Refrigerant Charge 6.2 Oz. (r-134a) |
|
- |
