SELECT A DIAGRAM

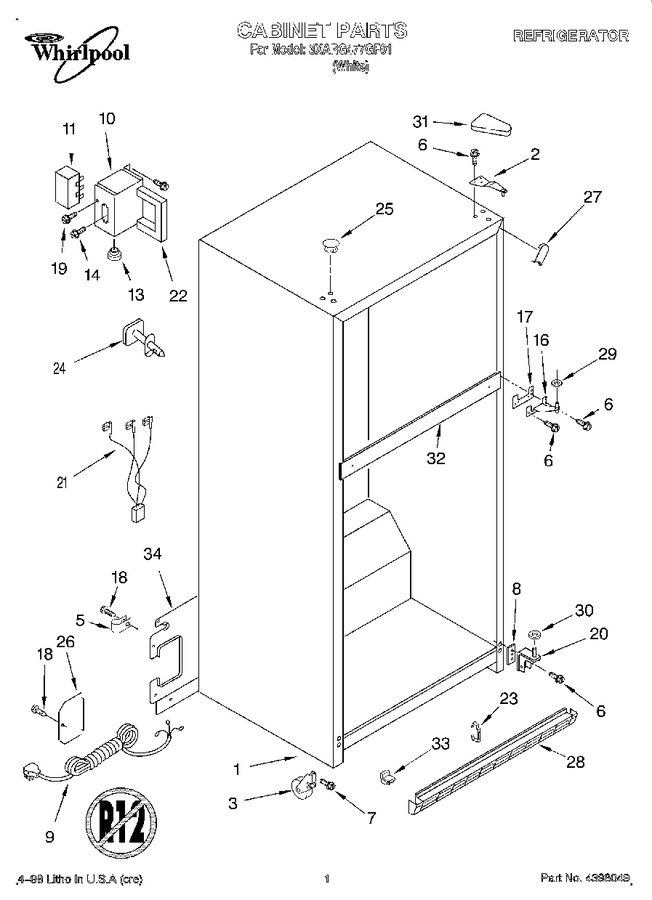

01 - Cabinet


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 119.42
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 34.76
5	WP488366		Clamp, Tube (water Supply Line)   (Replaces: 489385)				$ 11.92
6	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
7	2174650		Screw		Appelez-nous	-
8	2172743		Shim, Bottom Hinge				$ 33.55
9	1129332		Service Cord		Appelez-nous	-
10	2158579		Enclosure, Terminal Block		Appelez-nous	-
11	1129346		Terminal Block		Appelez-nous	-
13	1129449		Bushing		Appelez-nous	-
14	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 11.36
16	WP2254618		Hinge, Center   (Replaces: 2183972)			Immediately	$ 92.02
17	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 11.43
18	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
19	WP489399		Screw   (Replaces: 489399)				$ 7.30
20	WP2254473		Hinge Butt   (Replaces: 2189194)				$ 9.28
21	2199068		Wire Assembly		Appelez-nous	-
22	2167227		Gasket		Appelez-nous	-
23	2189356		Clip-grille (2)				$ 5.70
24	N/A		Fitting, Water Tube (not Serviced)		Appelez-nous	-
25	WP2151652		Hole Plug (6)   (Replaces: 2201012)				$ 22.87
26	2166251		Cover, Water Valve				$ 6.43
27	WPW10283959		Corner Filler (2)   (Replaces: 2201014)				$ 8.21
28	WP2254386		Grille   (Replaces: 2201009)				$ 99.26
29	WP489467		Washer-plain   (Replaces: 489341)			Immediately	$ 11.42
30	WP487576		Washer-nylon   (Replaces: 487576)			Immediately	$ 10.74
31	WP2213360		Cover-hinge   (Replaces: 2160403)				$ 20.19
32	N/A		Rail Center (not Serviced)		Appelez-nous	-
33	2166156		Corner Filler, Grille		Appelez-nous	-
34	2254582		Cover, Unit   (Replaces: 2188171)				$ 134.73

    View Diagram in Separate Window       Print Part List
