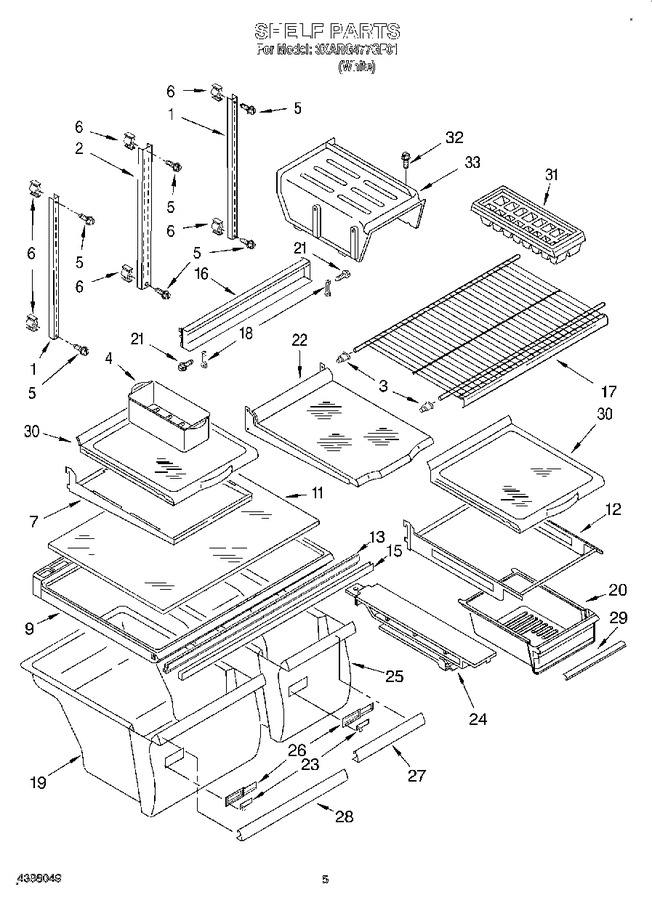

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2163756 | Shelf, Ladder (2) |
|
- | |||||
| 2 | 2163826 | Shelf, Ladder Center |
|
- | |||||
| 3 | WPW10130299 | Cup, Shelf Mounting (Replaces: 2163762) |
|
Immediately | $ 14.70 | ||||
| 4 | W10136387A | Egg Bin (Replaces: 2182730) |
|
$ 19.54 | |||||
| 5 | W11544659 | Screw (Replaces: 489415) |
|
$ 14.35 | |||||
| 6 | 520965 | Screw, Support |
|
$ 31.35 | |||||
| 7 | 2174446 | Frame Assembly, Shelf |
|
$ 106.01 | |||||
| 9 | WP2314548 | Cover, Crisper (Replaces: 2195342) |
|
$ 259.83 | |||||
| 11 | WP2169921 | Glass, Crisper Cover (Replaces: 2169921) |
|
$ 258.93 | |||||
| 12 | 2179716 | Frame Assembly, Meat Shelf |
|
- | |||||
| 13 | 2172683 | Gasket, Crisper Cover |
|
- | |||||
| 15 | WP2172748 | Crisper Support (Replaces: 2172541) |
|
$ 102.08 | |||||
| 16 | 2176240 | Track Assembly, Shelf |
|
- | |||||
| 17 | WP2176275 | Shelf, Freezer (Replaces: 2176275) |
|
$ 123.40 | |||||
| 18 | 2169608 | Hook, Shelf |
|
- | |||||
| 19 | W10854037 | Pan, Crisper Wide (Replaces: 2201027) |
|
Immediately | $ 179.19 | ||||
| 20 | WP2218127K | Pan, Meat (Replaces: 2201031) |
|
$ 146.80 | |||||
| 21 | 489419 | Screw |
|
- | |||||
| 22 | 2195349 | Shelf Assembly, Spillguard L/a |
|
- | |||||
| 23 | WP2176222 | Slide, Crisper (Replaces: 2176222) |
|
$ 27.35 | |||||
| 24 | WP2163835 | Crisper Track, Center (Replaces: 2163835) |
|
Immediately | $ 36.48 | ||||
| 25 | W10856580 | Pan, Crisper (Replaces: 2201026) |
|
Immediately | $ 177.03 | ||||
| 26 | W11819839 | Body, Humidity Control (Replaces: 2176223) |
|
$ 15.81 | |||||
| 27 | 2195340 | Trim, Crisper Pan |
|
$ 7.07 | |||||
| 28 | WP2195341 | Trim, Crisper Pan (Replaces: 2195341) |
|
$ 86.67 | |||||
| 29 | 2176356 | Trim, Meat Pan |
|
- | |||||
| 30 | 2195500 | Shelf Assembly, Spillguard (2) |
|
- | |||||
| 31 | WP841180A | Ice Cube Tray (Replaces: 841180) |
|
Immediately | $ 47.84 | ||||
| 32 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 33 | 2183995 | Shelf, Ice Tray |
|
- | |||||
| 100 | 2199043 | Featurepak (includes 4,7,12, 16,18,20,21,22,44,45) Also See Ref.& Frz. Door Pages. |
|
- |
