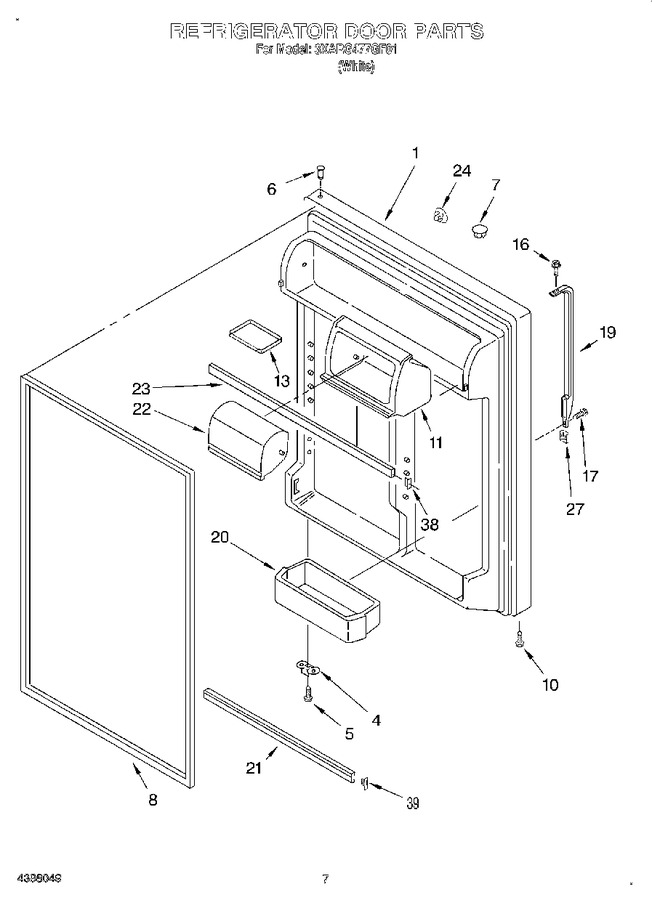

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183864 | Refrigerator Door (includes No.6 & No.8) |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 7 | WP2212648 | Hole Plug (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 8 | 2159057 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 187.51 | ||||
| 10 | WP8281206 | Screw (Replaces: 489028) |
|
$ 8.37 | |||||
| 11 | 2156062 | Housing Compartment |
|
- | |||||
| 13 | 2195388 | Tray, Door |
|
- | |||||
| 16 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 17 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 19 | 4388947 | Handle (Replaces: 2193351W) |
|
$ 204.47 | |||||
| 20 | 2179605 | Bin, Door Shelf (4) |
|
- | |||||
| 21 | WPW10421484 | Trim, Door Shelf (Replaces: 2195949) |
|
$ 136.25 | |||||
| 22 | 2182400 | Door, Compartment |
|
- | |||||
| 23 | 2159312 | Trim-door Shelf |
|
$ 47.75 | |||||
| 24 | WP2189000 | Hole Plug, Handle (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 27 | WP2193353W | Handle, Trim (Replaces: 2193353W) |
|
$ 8.52 | |||||
| 38 | 2177340 | Endcap, Door Trim |
|
$ 5.84 | |||||
| 39 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.79 | ||||
| 100 | 2199043 | Featurepak (includes 11, 13, 20, 21, 22, 23, 38, 39) Also See Frz.dr. & Shelf Parts Pgs. |
|
- |
