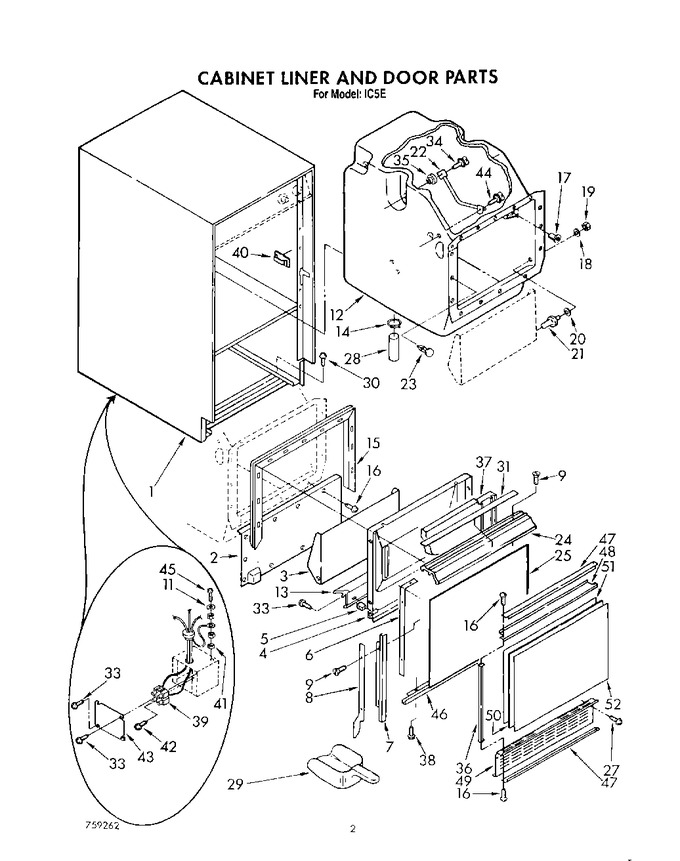

02 - Cabinet Liner And Door


03 - Evaporator, And Ice Cutter Grid


04 - Drain Pump


05 - Control Panel


06 - Unit


07 - Optional Parts Not Included


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	758848		Shell		Appelez-nous	-
2	758652		Front, Shell		Appelez-nous	-
3	756330		Door, Inner Bin		Appelez-nous	-
4	758222		Liner, Door		Appelez-nous	-
5	593192		Plug, Hinge		Appelez-nous	-
6	593104		Strip, Tapping (2)		Appelez-nous	-
7	755675		Trim, Door (r.s.)		Appelez-nous	-
7	755676		Trim, Door (l.s.)		Appelez-nous	-
8	593184		Rail, R.s.		Appelez-nous	-
8	593185		Rail, L.s.		Appelez-nous	-
9	681459		Screw, 8-32 X 5/8 (6)		Appelez-nous	-
11	668347		Lockwasher		Appelez-nous	-
12	756350		Liner (includes Illus. 17, 18, 19, 20 & 21)		Appelez-nous	-
13	758169		Gasket, Bottom		Appelez-nous	-
14	596023		Clamp (2)		Appelez-nous	-
15	758921		Gasket		Appelez-nous	-
16	WP488729		Screw, 8-32 X 3/8   (Replaces: 489196)			Immediately	$ 7.45
17	681542		Nut		Appelez-nous	-
18	758492		Washer		Appelez-nous	-
19	680637		Nut, 1/4 Hex		Appelez-nous	-
20	681613		Washer (2)		Appelez-nous	-
21	758220		Stud (2)		Appelez-nous	-
22	593183		Well, Bin Thermostat		Appelez-nous	-
23	596807		Screw, Grommet		Appelez-nous	-
24	756662		Pull, Door		Appelez-nous	-
25	758888		Panel, Exterior		Appelez-nous	-
27	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 681308)				$ 20.00
28	593577		Connector, Hose		Appelez-nous	-
29	W11420408		Scoop   (Replaces: 585158)				$ 25.75
30	680811		Screw, 10-32 X 3/8		Appelez-nous	-
31	759246		Insert, Handle		Appelez-nous	-
33	486214		Screw		Appelez-nous	-
34	681419		Thumbscrew, 10-1/2		Appelez-nous	-
35	596715		Well Nut (3)		Appelez-nous	-
36	758713		Trim, Sides (2)		Appelez-nous	-
37	758754		Insulation, Door		Appelez-nous	-
38	681196		Screw		Appelez-nous	-
39	938329		Block, Terminal		Appelez-nous	-
40	758844		Retainer		Appelez-nous	-
41	680637		Nut, 1/4 Hex		Appelez-nous	-
42	WP681249		Screw, 8-32 X 3/4   (Replaces: 681249)			Immediately	$ 7.43
43	573468		Cover, Box		Appelez-nous	-
44	680930		Thumbscrew		Appelez-nous	-
45	681333		Screw, 1/4-20 X 1-1/4		Appelez-nous	-
46	755677		Trim, Door (lower)		Appelez-nous	-
47	758716		Trim, Top And Bottom (2)		Appelez-nous	-
48	758718		Support, Front		Appelez-nous	-
49	758769		Grill, Front		Appelez-nous	-
50	758770		Panel, Filler		Appelez-nous	-
51	758771		Panel, Inner		Appelez-nous	-
52	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
52	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
52	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
52	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
52	978028		Valve, Access (1/2)		Appelez-nous	-
52	978029		Valve Access (5/8``)				$ 93.85
52	978030		Valve, Access (3/4``)				$ 123.53
52	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
52	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
52	758889		Panel, Exterior		Appelez-nous	-
52	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
52	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 104.81
52	350942		Xprimer, White (12 Oz. Spray Can)   (Replaces: 206922)				$ 84.73
52	206925		Leveler, Enamel (12 Oz. Spray Can)		Appelez-nous	-
52	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
52	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 86.78
52	756891		Kit, Insulation (5 Pcs. 3`` X 24`` X 48``)		Appelez-nous	-
52	978026		Valve, Access (5/16``)			Immediately	$ 121.04
	LIT759262		List, Parts		Appelez-nous	-
	LIT759263		Instructions, Owner`s		Appelez-nous	-
	LIT756638		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
