02 - Cabinet Liner And Door

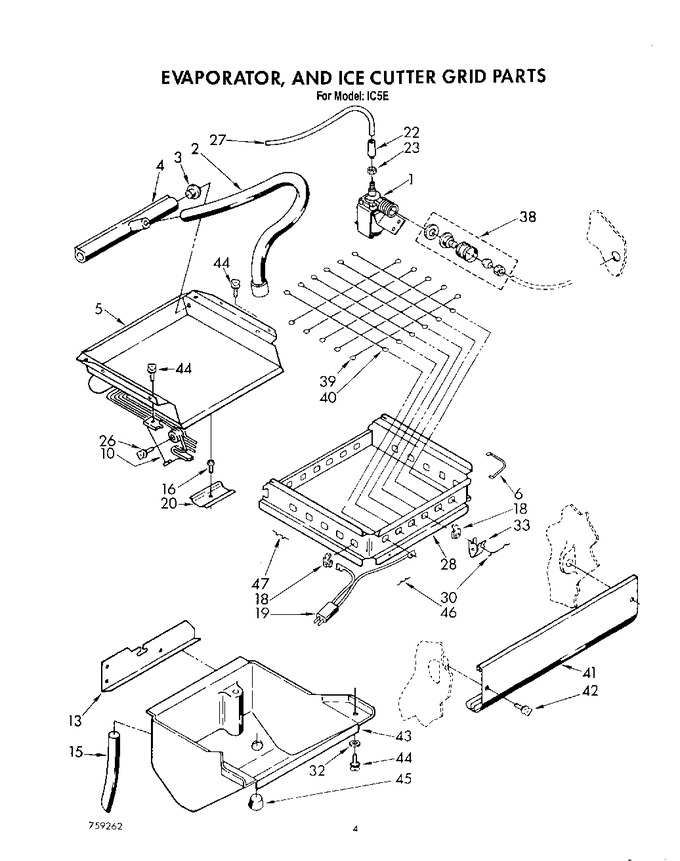

03 - Evaporator, And Ice Cutter Grid


04 - Drain Pump


05 - Control Panel


06 - Unit


07 - Optional Parts Not Included


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	758387		Valve, Water (complete)		Appelez-nous	-
2	585856		Tube, Plastic		Appelez-nous	-
3	758597		Plug (2)		Appelez-nous	-
4	585813		Dispenser, Water		Appelez-nous	-
5	758028		Evaporator		Appelez-nous	-
6	587106		Lead, Grid		Appelez-nous	-
10	756564		Bracket, Grid Mounting (2)		Appelez-nous	-
13	585853		Shelf, Water Pan		Appelez-nous	-
15	759109		Hose, Overflow		Appelez-nous	-
16	596037		Screw, 10-32 X 1/2		Appelez-nous	-
18	598277		Insulator (22)		Appelez-nous	-
19	587638		Cord, Grid		Appelez-nous	-
20	587662		Clamp		Appelez-nous	-
22	4387491		Insert,   (Replaces: 841707)				$ 7.41
23	WP627018		Nut & Sleeve Assembly   (Replaces: 627018)				$ 10.36
26	681611		Thumbscrew		Appelez-nous	-
27	759213		Tube, Plastic		Appelez-nous	-
28	759201		Frame, Grid		Appelez-nous	-
30	587112		Pin (4)		Appelez-nous	-
32	681245		Washer,		Appelez-nous	-
33	564069		Sheild, Grid		Appelez-nous	-
33	759197		Clip (11)		Appelez-nous	-
38	533238		Adapter (supplied In Literature Package)		Appelez-nous	-
39	588048		Kit (includes 9 Pieces Of 587503 Grid Cutter Wires)		Appelez-nous	-
40	588109		Kit (includes 10 Pieces Of 587504 Grid Cutter Wires)		Appelez-nous	-
41	593171		Panel, Grid		Appelez-nous	-
42	680930		Thumbscrew 10-32 X 5/8		Appelez-nous	-
43	756659		Pan		Appelez-nous	-
44	681419		Thumbscrew, 10 X 1/2		Appelez-nous	-
45	759043		Stopper, Water Pan		Appelez-nous	-
46	587424		Pin (4) 3ech50-1 Only		Appelez-nous	-
47	587425		Pin (5) 3ehc50-1 Only		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
