Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 758309 Transformer Appelez-nous -
3 756664 Escutcheon, Panel Appelez-nous -
4 593139 Switch, Service Appelez-nous -
5 756341 Bracket, Control Appelez-nous -
6 WP965173 Screw, 8-15 X 3/8   (Replaces: 595431) In-Stock Immediately $ 10.68

7 WP486579 Screw, 8-32 X 1/4   (Replaces: 595005) Special Order $ 7.10

8 681036 Screw, Appelez-nous -
9 758978 Escutcheon Appelez-nous -
11 598235 Thermostat, Evaporator Special Order $ 123.70

12 759141 Thermostat, Bin Control Appelez-nous -
13 759241 Decal, Escutcheon Appelez-nous -
14 681245 Washer, Appelez-nous -
15 WP250830 Screw   (Replaces: 489048) Special Order $ 7.90

19 757464 Harness, Grid Appelez-nous -
20 758976 Knob Appelez-nous -
21 759007 Latch Appelez-nous -
22 487246 Screw, Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

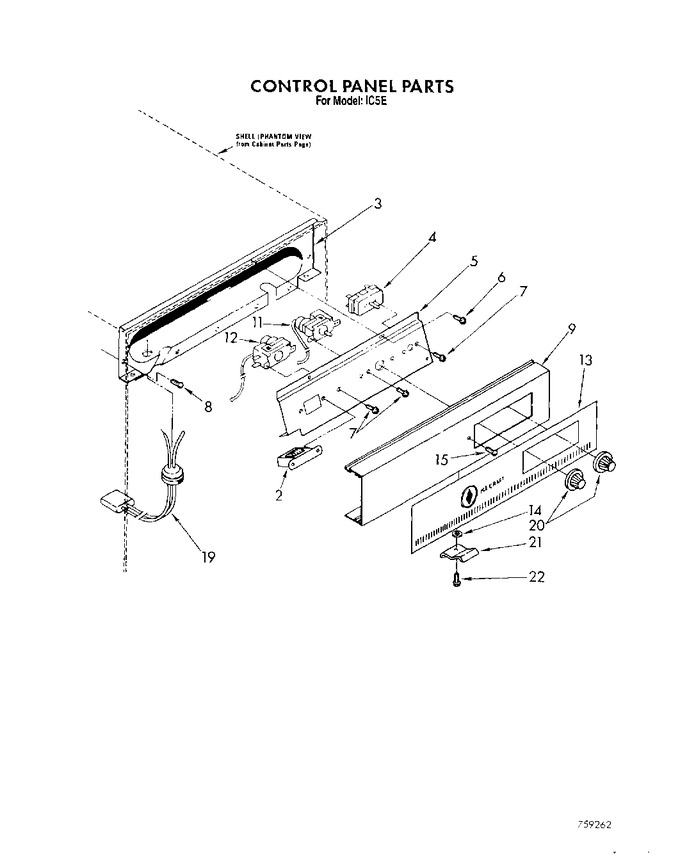

Diagram for IC5E
