SELECT A DIAGRAM

01 - Cabinet


02 - Liner

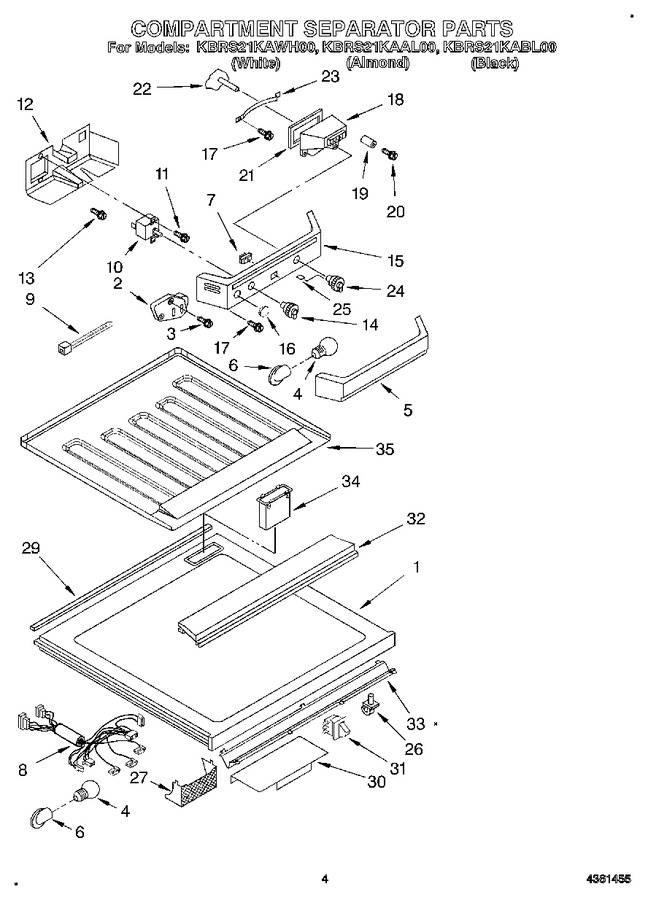

03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2152764		Compartment (white Separator Assembly (includes Center Rail And Heater Assembly))		Appelez-nous	-
2	WP2183400		Defrost Timer   (Replaces: 2162052)			Immediately	$ 79.98
3	489386		Screw				$ 598.06
4	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 10.17
5	983910		Light Lens		Appelez-nous	-
6	4387478		Light Socket   (Replaces: 851067)			Immediately	$ 104.10
7	938213		Switch, Light				$ 27.96
8	2152849		Wiring Assembly, Control Box		Appelez-nous	-
9	1102000		Cable Tie		Appelez-nous	-
10	WP4317800		Thermostat Barrier Assembly   (Replaces: 2160427)			Immediately	$ 250.81
11	488974		Screw, 8-15 X 3/8 (2)		Appelez-nous	-
12	2152896		Bracket, Thermostat		Appelez-nous	-
13	488974		Screw, 8-32 X 3/8		Appelez-nous	-
14	1126092		Control Knob		Appelez-nous	-
15	1125965		Control Panel		Appelez-nous	-
16	940014		Hole Plug				$ 18.33
17	WP489478		Screw   (Replaces: 489242)				$ 7.36
18	2160470		Air Diffuser Assembly		Appelez-nous	-
19	836667		Spacer (2)		Appelez-nous	-
20	488357		Screw, 8 X 1-1/4 (2)		Appelez-nous	-
21	2160428		Gasket		Appelez-nous	-
22	984658		Damper, Air				$ 8.39
23	836493		Retainer, Air Damper		Appelez-nous	-
24	1125967		Knob, Air Diffuser (includes Item 25)		Appelez-nous	-
25	837444		Knob, Retainer		Appelez-nous	-
26	2155555		Stud		Appelez-nous	-
27	983359		Light Lens		Appelez-nous	-
29	1116698		Gasket, Comp. Sep.		Appelez-nous	-
30	2149068		Lens-light		Appelez-nous	-
31	W11457217		Switch   (Replaces: 1115373)				$ 36.08
32	1121213		Seperator Top-front		Appelez-nous	-
33	2160402		Air Deflector		Appelez-nous	-
34	987019		Insert, Air Return		Appelez-nous	-
35	2152789		Separator, Top-rear		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
