SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator

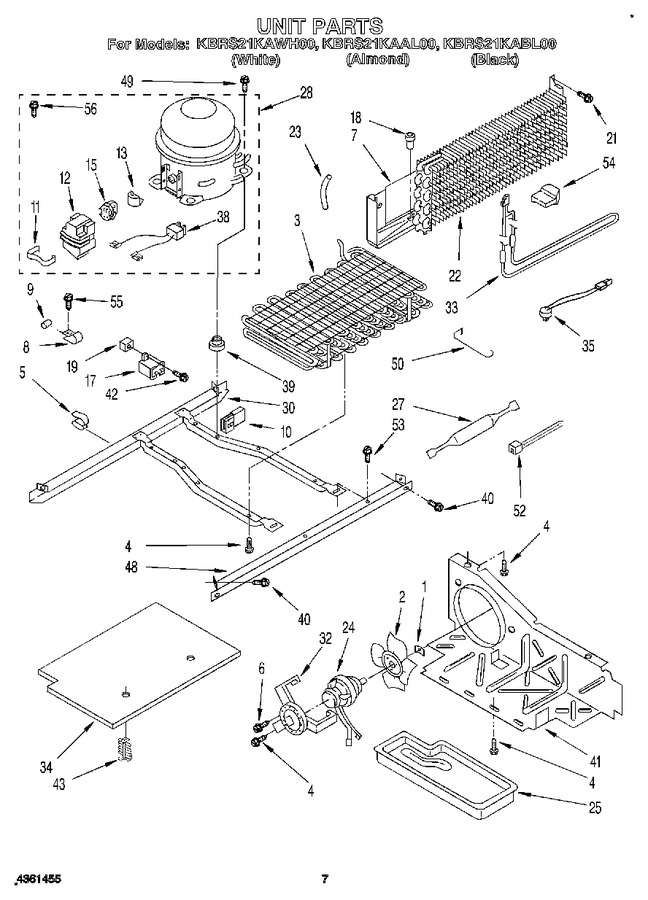

04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.59
2	851732		Fan, Blade		Appelez-nous	-
3	2154010		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.54
5	548745		Clip, Wire (2)		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 12.34
7	2152771		Heat Shield & Drain Pan		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.64
10	934326		Housing Plug		Appelez-nous	-
11	943322		Spring, Relay Case (production)		Appelez-nous	-
11	938384		Spring, Relay Case (service)		Appelez-nous	-
12	1108115		Case, Relay (service)		Appelez-nous	-
12	1105055		Case, Relay (production)		Appelez-nous	-
13	WP2149959		Overload (production (includes Relay))   (Replaces: 2149959)				$ 126.05
13	1108114		Overload) (service (includes Relay)		Appelez-nous	-
15	N/A		Relay (see Overload)		Appelez-nous	-
17	WPW10662129		Running Capacitor (service)   (Replaces: 1118581)			Immediately	$ 52.97
17	WPW10662129		Running, Capacitor (production)   (Replaces: 1114291)			Immediately	$ 52.97
18	2155556		Drain Ferrule		Appelez-nous	-
19	509812		Screw Grommet		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 7.36
22	2152776		Evaporator		Appelez-nous	-
23	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 19.19
24	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 98.23
25	2154114		Tray, Evaporator		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 51.42
28	W10439652		Compressor (includes 11 12, 13, 15, 17 38, 39, 56) (also Order)   (Replaces: 2154560)				$ 397.98
28	876765		Tube Kit			Immediately	$ 81.59
30	2304903		Unit Mounting Frame   (Replaces: 2160500)				$ 220.21
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162083		Heater, Defrost		Appelez-nous	-
34	2160505		Unit Cover, Bottom		Appelez-nous	-
35	WP4387503		Defrost Bimetal   (Replaces: 2149641)			Immediately	$ 43.10
38	WP2172890		Wire Asm. For Service Capacitor   (Replaces: 1127675)				$ 7.66
39	876811		Grommet (service)   (Replaces: 1100826)				$ 7.01
39	2162067		Grommet (production)		Appelez-nous	-
40	489340		Screw		Appelez-nous	-
41	2155566		Air Baffle		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 13.28
43	489396		Clip (2)				$ 10.13
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	489387		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 38.35
52	WPW10339879		Strap, Mtg.   (Replaces: 2155774)				$ 7.47
53	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.06
54	1115128		Support (2)		Appelez-nous	-
55	W11693756		Screw, 8-32 X 1/2   (Replaces: 488687)			Immediately	$ 13.28
56	876764		Valve, Access(3/16``)			Immediately	$ 86.33
56	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
56	978028		Valve, Access (1/2)		Appelez-nous	-
56	978029		Valve Access (5/8``)				$ 93.85
56	978030		Valve, Access (3/4``)				$ 123.53
56	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
56	W11693756		Screw, For Mtg. Service Capacitor   (Replaces: 487240)			Immediately	$ 13.28
56	978026		Valve, Access (5/16``)			Immediately	$ 121.04

    View Diagram in Separate Window       Print Part List
