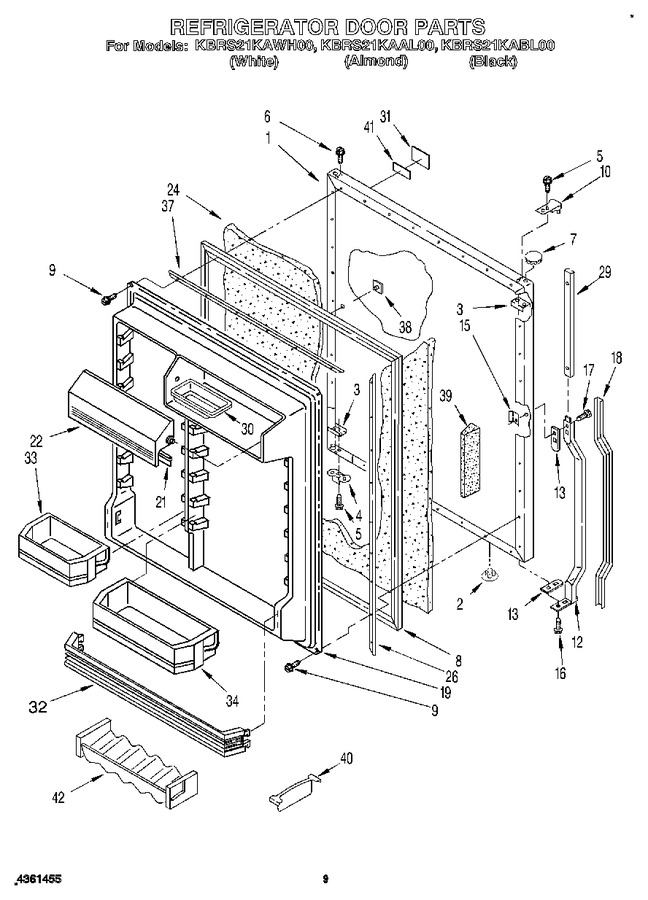

06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2152806		Panel, Refrigerator Door (also Order Item 24) (white)		Appelez-nous	-
1	2160486		Panel, Refrigerator Door (also Order Item 24) (black)		Appelez-nous	-
1	2160485		Panel, Refrigerator Door (also Order Item 24) (almond)		Appelez-nous	-
2	1110485		Hole Plug (2) (black)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	1123568		Plate, Tap (4)		Appelez-nous	-
4	2157748		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.53
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212651		Hole Plug (black)   (Replaces: 2160808)				$ 21.79
8	2160437		Door Gasket, Magnetic		Appelez-nous	-
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.56
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.62
10	1107236		Handle End		Appelez-nous	-
12	1126494		Handle, Door & Bottom End Cap Assembly		Appelez-nous	-
13	2161521		Spacer, Handle		Appelez-nous	-
14	2151813		Shim, Handle Door		Appelez-nous	-
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.09
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.18
17	WP488163		Screw, 8 X 1/2   (Replaces: 488540)				$ 7.13
18	2161524		Insert, Handle (almond)		Appelez-nous	-
18	2161796		Insert, Handle (black Model)		Appelez-nous	-
18	2161523		Insert, Handle (white)		Appelez-nous	-
19	2160429		Interior Door Panel		Appelez-nous	-
21	1125695		Gasket, Utility Door		Appelez-nous	-
22	1125733		Compartment Door,		Appelez-nous	-
24	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
26	986008		Gasket Retainer, Side (2)		Appelez-nous	-
29	2161522		Retainer Insert		Appelez-nous	-
30	1125936		Butter, Tray		Appelez-nous	-
31	1125819		Nameplate (almond)		Appelez-nous	-
31	1125818		Nameplate (white Model)		Appelez-nous	-
31	2161715		Nameplate (black)		Appelez-nous	-
32	1125557		Shelf Bin, Fixed		Appelez-nous	-
33	1125556		Bin, Door Shelf Narrow		Appelez-nous	-
34	1125555		Bin, Door Shelf Deep. Wide		Appelez-nous	-
37	1122552		Gasket Retainer, Top & Bottom		Appelez-nous	-
38	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 6.99
38	WP2189009		Hole Plug, Handle (black)   (Replaces: 2160809)				$ 6.85
38	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
39	1126161		Reinforcement		Appelez-nous	-
40	1117999		Load Lock		Appelez-nous	-
41	991259		Tape Strip		Appelez-nous	-
42	1125981		Holder, Beverage		Appelez-nous	-
