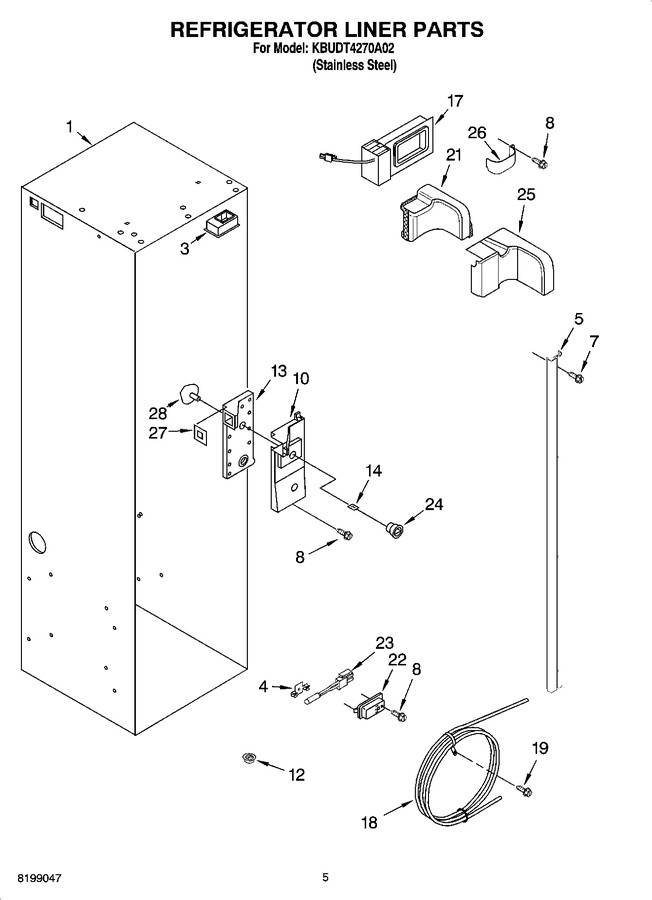

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
3	2208970		Air Duct				$ 136.26
4	2209204		Clip, Thermistor		Appelez-nous	-
5	2256225		Ladder, Shelf (right Side)		Appelez-nous	-
5	2222480		Ladder, Shelf (left Side)		Appelez-nous	-
7	W10678207		Screw   (Replaces: 2001377)				$ 14.79
8	WP488729		Screw   (Replaces: 487539)			Immediately	$ 7.45
10	2222617		Meat Pan, Air Duct Cover		Appelez-nous	-
12	2171846		Release Valve				$ 18.99
13	2000337		Meat Pan, Air Duct		Appelez-nous	-
14	2003841		Retainer, Knob		Appelez-nous	-
17	WP2221296		Air Baffle Assembly   (Replaces: 2221296)			Immediately	$ 371.32
18	WP2256126		Reservoir   (Replaces: 2209687)				$ 159.56
19	488280		Screw		Appelez-nous	-
21	2208997		Diffuser Assembly		Appelez-nous	-
22	1116793		Cover, Thermistor				$ 14.63
23	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 27.77
24	2003811		Knob, Control Meat Pan		Appelez-nous	-
25	2309087		Cover, Diffuser   (Replaces: 2215728)		Appelez-nous	-
26	2003577		Cover, Air Return		Appelez-nous	-
27	2221175		Seal, Air Duct		Appelez-nous	-
28	1112218		Damper Control, Meat Pan				$ 8.51
