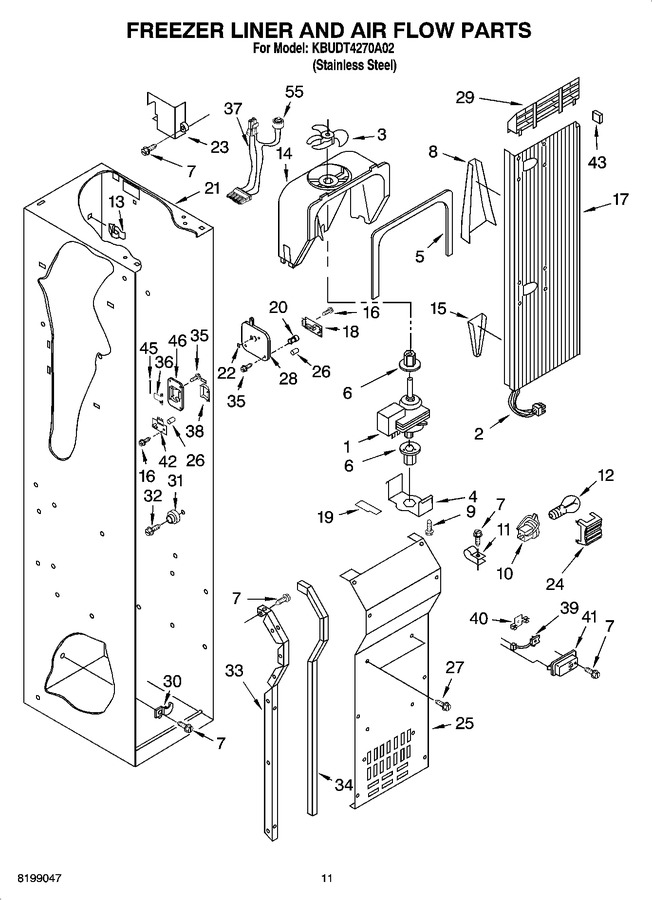

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2315548 | Fan Motor (Replaces: 2220149) |
|
$ 203.12 | |||||
| 2 | 2187532 | Harness, Wire |
|
- | |||||
| 3 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 41.01 | ||||
| 4 | 2155590 | Retainer Fan Motor |
|
$ 5.83 | |||||
| 5 | WP2302817 | Gasket, Cover (Replaces: 2302817) |
|
$ 90.94 | |||||
| 6 | WP2176759 | Grommet (Replaces: 2176759) |
|
$ 7.34 | |||||
| 7 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 8 | 2003925 | Deflector, Air Duct |
|
- | |||||
| 9 | WP489128 | Screw, Ground (Replaces: 488500) |
|
$ 10.26 | |||||
| 10 | 4387478 | Socket, Light (2) (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 11 | 488937 | Clamp, Nylon |
|
- | |||||
| 12 | W10887190 | Light Bulb (Replaces: 2257556) |
|
Immediately | $ 17.31 | ||||
| 13 | 2215823 | Clip-air, Duct |
|
$ 9.85 | |||||
| 14 | WP2182120 | Scroll, Fan (Replaces: 2182120) |
|
Immediately | $ 105.81 | ||||
| 15 | 2003928 | Deflector, Air Duct |
|
- | |||||
| 16 | 2006254 | Screw (Replaces: 489214) |
|
$ 12.41 | |||||
| 17 | 2252378 | Air Duct |
|
- | |||||
| 18 | W11629974 | P.c. Board, Receiver (Replaces: 2255114) |
|
Immediately | $ 379.01 | ||||
| 19 | 2209066 | Block, Fan Scroll (left) |
|
- | |||||
| 19 | 2209480 | Block, Fan Scroll (right) |
|
- | |||||
| 20 | WP2198643 | Lens (Replaces: 2198643) |
|
$ 7.73 | |||||
| 21 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 22 | 2259499 | Slide, Icemaker Shut Off |
|
- | |||||
| 23 | 2215718 | Cover, Air Outlet |
|
- | |||||
| 24 | 2302848 | Light Shield |
|
- | |||||
| 25 | 2221105 | Cover, Evaporator |
|
- | |||||
| 26 | 2198665 | Tube, P.c. Board |
|
$ 21.52 | |||||
| 27 | WP488729 | Screw (Replaces: 487539) |
|
Immediately | $ 7.45 | ||||
| 28 | 2259496 | Cover, Receiver |
|
- | |||||
| 29 | 1112852 | Deflector, Air Duct |
|
$ 8.57 | |||||
| 30 | 1112260 | Support,evaporator |
|
- | |||||
| 31 | WP2196483 | Shelf, Stud (20) (Replaces: 2196483) |
|
$ 9.78 | |||||
| 32 | WP3400806 | Screw (Replaces: 8281158) |
|
$ 7.29 | |||||
| 33 | 2221107 | Evaporator, Cover Rail (left Side) |
|
- | |||||
| 33 | 2259355 | Evaporator, Cover Rail (right Side) |
|
$ 113.89 | |||||
| 34 | 2220904 | Gasket (2) Evaporator Cover |
|
$ 21.20 | |||||
| 35 | WPW10142283 | Screw (Replaces: 8281185) |
|
$ 9.30 | |||||
| 36 | WP2198635 | Spring (Replaces: 2198635) |
|
$ 82.29 | |||||
| 37 | 2187674 | Harness, Evap Fan (includes Item 55) |
|
- | |||||
| 38 | WP2198633 | Flipper (Replaces: 2198633) |
|
Immediately | $ 45.61 | ||||
| 39 | WP2188820 | Thermistor (Replaces: 2213442) |
|
Immediately | $ 27.77 | ||||
| 40 | 2209204 | Clip, Thermistor |
|
- | |||||
| 41 | 1116793 | Cover, Thermistor |
|
$ 14.63 | |||||
| 42 | W11629974 | P.c. Board Emitter (Replaces: 2220398) |
|
Immediately | $ 379.01 | ||||
| 43 | 1112869 | Gasket, Air Duct |
|
- | |||||
| 45 | WP2198634 | Pin (Replaces: 2198634) |
|
$ 16.79 | |||||
| 46 | 2259487 | Cover, Emitter |
|
$ 68.37 | |||||
| 55 | WP2306462 | Defrost, Bi-metal (Replaces: 2306462) |
|
$ 112.34 |
