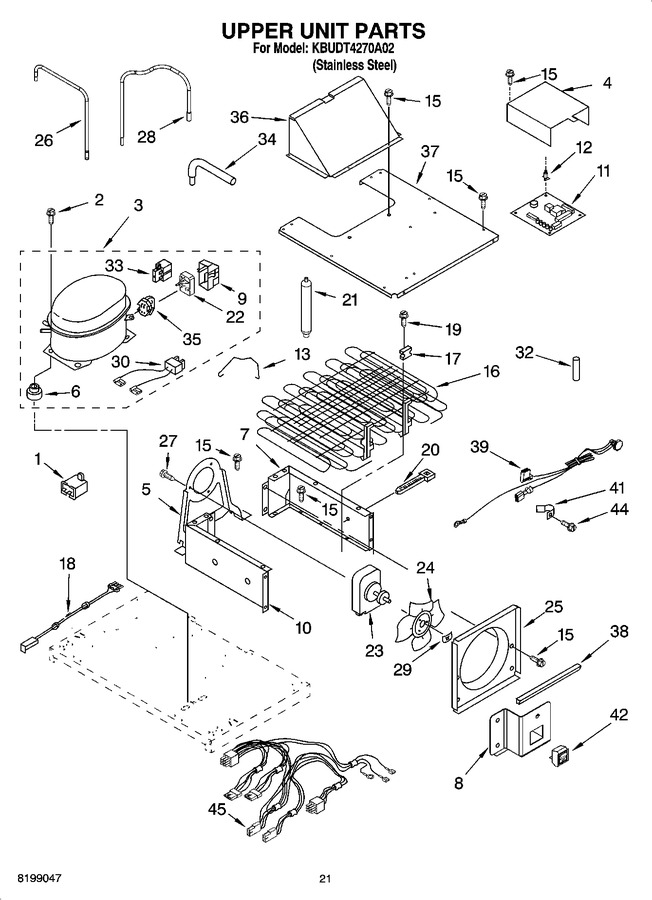

13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 52.97
1	WPW10662129		Capacitor (production)   (Replaces: 2169373)			Immediately	$ 52.97
2	876811		Screw, Compressor Mounting (4)   (Replaces: 489373)				$ 7.01
3	W10309994		Compressor (includes Items 1, 6,9,30,33 & 35) (also Order 876765 Kit And Item 21)   (Replaces: 2255197)			Immediately	$ 579.20
4	2257354		Housing, Control Board		Appelez-nous	-
5	2215641		Bracket, Fan Motor		Appelez-nous	-
6	WP4387558		Grommet, Mounting (service)   (Replaces: 4387558)				$ 6.57
6	876811		Grommet (production)   (Replaces: 1100826)				$ 7.01
7	2266803		Shroud, Condenser (right)		Appelez-nous	-
8	2302969		Bracket, Switch		Appelez-nous	-
9	WP2162358		Terminal Cover (service)   (Replaces: 4387731)				$ 85.76
10	2302973		Shroud, Condenser (left)		Appelez-nous	-
11	2252070		Control Board				$ 184.02
12	WP2203075		Spacer (5)   (Replaces: 2203075)			Immediately	$ 16.93
13	2255199		Clip, Retaining		Appelez-nous	-
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
16	2259307		Condenser				$ 165.43
17	943447		Grommet (4)		Appelez-nous	-
18	WP2187629		Wire, Jumper   (Replaces: 2187629)				$ 119.32
19	487522		Screw		Appelez-nous	-
20	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 7.47
21	WPW10143759		Drier   (Replaces: 2252363)			Immediately	$ 27.70
22	WP2319792		Start Device, Combination (start Relay And Overload) For Production Compressor   (Replaces: 2255198)				$ 161.26
23	W10181323		Motor, Fan   (Replaces: 2206036)			Immediately	$ 296.51
24	2190685		Blade, Fan				$ 52.00
25	2003169		Orifice, Fan		Appelez-nous	-
26	2259302		Tube, Drier Transition		Appelez-nous	-
27	8281160		Screw		Appelez-nous	-
28	2259340		Tube, Heat Loop Transition				$ 27.41
29	WP486692		Speed Nut   (Replaces: 486692)				$ 7.59
30	WP2172890		Wire, Capacitor   (Replaces: 4387765)				$ 7.66
32	2000645		Sleeve, Condenser		Appelez-nous	-
33	2183454		Relay, (service Compressor)		Appelez-nous	-
34	W10528578		Process, Tube   (Replaces: 2194319)				$ 35.84
35	WP2154697		Overload, (for Service Compressor Only)   (Replaces: 2154697)				$ 123.54
36	2209495		Cover, Fan		Appelez-nous	-
37	2259092		Cover, Condenser		Appelez-nous	-
38	2307907		Grommet, Edge		Appelez-nous	-
39	2259197		Service Cord		Appelez-nous	-
41	549193		Clamp-cord				$ 12.65
42	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 98.17
44	W11624204		Screw   (Replaces: 486194)				$ 13.25
45	N/A		And Optional Parts Not Included		Appelez-nous	-
45	978028		Valve, Access (1/2)		Appelez-nous	-
45	978029		Valve Access (5/8``)				$ 93.85
45	978030		Valve, Access (3/4``)				$ 123.53
45	876764		Valve, Access(3/16``)			Immediately	$ 86.33
45	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
45	2187517		Wiring Harness, Unit Compartment		Appelez-nous	-
45	978026		Valve, Access (5/16``)			Immediately	$ 121.04
45	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
