Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3178475 Thermostat Disc Appelez-nous -
2 3178261 Selector Disc Appelez-nous -
3 4168838 Nut, Tinnerman (2) Appelez-nous -
3 4159470 Screw (2) Appelez-nous -
3 4173071 Clock Appelez-nous -
3 4164360 Nut (4) Appelez-nous -
4 4164218 Control Mounting Plate Appelez-nous -
5 4164360 Nut, Washer Type (4) Appelez-nous -
7 4168597 Indicator Light, Appelez-nous -
8 4163869 Light, Lock/clean Appelez-nous -
9 4167332 Switch, Oven Light Appelez-nous -
10 4164362 Thermostat Appelez-nous -
10 155023 Screw (2) In-Stock Immediately $ 7.91

11 155023 Screw (2) In-Stock Immediately $ 7.91

11 3177173 Switch, Selector Appelez-nous -
12 3177136 Wire Harness, Hi-temp Appelez-nous -
13 3177137 Wire Harness, Lo-temp Appelez-nous -
LIT3177139 Installation Instructions Appelez-nous -
LIT4174079 Repair Parts List Appelez-nous -
LIT3147005 Cookbook Appelez-nous -
LIT3177067 Use & Care Guide Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

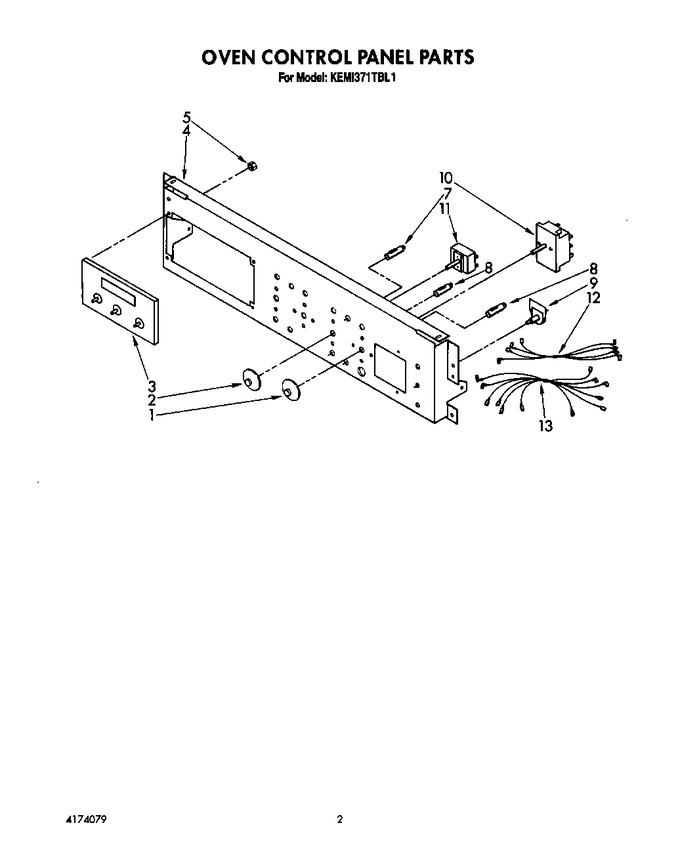

Diagram for KEMI371TBL1
