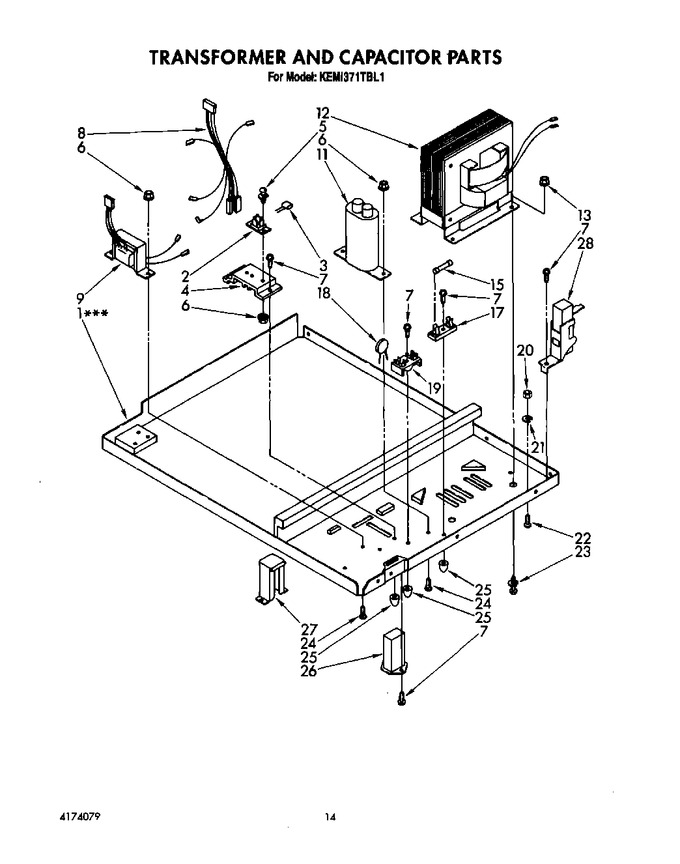

11 - Transformer And Capacitor


12 - Microwave Control Panel


13 - Microwave Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4175511		Bottom Platexxx		Appelez-nous	-
2	4166991		Triac		Appelez-nous	-
3	4164082		Polyester Film Capacitor		Appelez-nous	-
4	4164083		Heat Sink		Appelez-nous	-
5	4175509		Screw, Pan Hd. Machine W/spring Washer 4x12mm		Appelez-nous	-
6	4175554		Nut, Hex Hd. With Washer, 4mm		Appelez-nous	-
7	4175555		Screw, Bind Hd. Tapping, 4x12mm		Appelez-nous	-
8	4164084		Connector, Triac		Appelez-nous	-
9	4164085		Step-down Transformer, Control Circuit		Appelez-nous	-
11	4164086		High Voltage Capacitor With Resistor And Rectifier		Appelez-nous	-
12	4164087		High Voltage Transformer		Appelez-nous	-
13	4175516		Nut, Hex Hd. With Washer, 6mm		Appelez-nous	-
15	4164088		Fuse, 15a		Appelez-nous	-
17	4164089		Fuse Holder		Appelez-nous	-
18	4164090		Varistor		Appelez-nous	-
19	4164091		Terminal Board		Appelez-nous	-
20	4164030		Nut, Hed Hd. 4mm Brass		Appelez-nous	-
21	4164037		Spring Washer, 4mm, Phosphated		Appelez-nous	-
22	4164019		Screw, Pan Hd. Machine, 4x10mm		Appelez-nous	-
23	4175561		Bolt, Hex Hd. Machine With Spring Washer And Bolt Washer 6x16mm		Appelez-nous	-
24	4164021		Screw, Pan Hd. Diacut 4x10mm		Appelez-nous	-
25	4164092		Cap, Black Vinyl, Screw		Appelez-nous	-
26	4164093		Back-up Battery		Appelez-nous	-
27	4164094		Battery Holder		Appelez-nous	-
28	4175519		Surge Absorber		Appelez-nous	-
