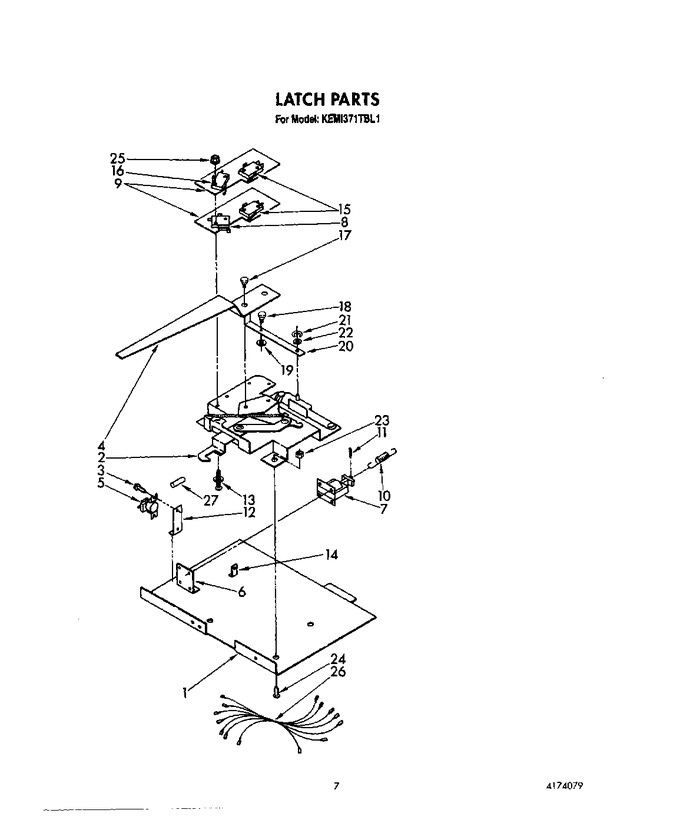

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4168063		Latch Mounting Plate		Appelez-nous	-
2	4168538		Mechanism, Latch		Appelez-nous	-
3	4159186		Screw, No.10-24 X 3/8`` Hex Tcs		Appelez-nous	-
4	3177965		Latch Lever		Appelez-nous	-
5	4173007		Safety Switch		Appelez-nous	-
6	4168292		Bracket, Solenoid		Appelez-nous	-
7	4159470		Screw (2)		Appelez-nous	-
7	4173081		Solenoid (inc`s		Appelez-nous	-
8	4168514		Latch Switch With Roller		Appelez-nous	-
9	4168522		Insulator (2)		Appelez-nous	-
10	4168560		Solenoid Spring		Appelez-nous	-
11	4159129		Cotter Pin		Appelez-nous	-
12	4159445		Screw, (2)		Appelez-nous	-
12	4173521		Bracket, Mounting Safety Switch		Appelez-nous	-
13	4173053		Screw (4)		Appelez-nous	-
14	4173168		Bracket, Harness		Appelez-nous	-
15	4168517		Latch Switch (2)		Appelez-nous	-
16	4164366		Latch Switch		Appelez-nous	-
17	4168579		Shoulder Screw, Latch Lever (2)		Appelez-nous	-
18	4168554		Shoulder Screw, Actuator Arm		Appelez-nous	-
19	4168553		Spacer, Actuator Arm		Appelez-nous	-
20	4168058		Actuator Arm		Appelez-nous	-
21	4159160		Retaining Ring		Appelez-nous	-
22	4159603		Washer, Flat		Appelez-nous	-
23	4159109		Nut, Hex (3)		Appelez-nous	-
24	4159287		Screw (3)		Appelez-nous	-
25	4159117		Locknut (4)		Appelez-nous	-
26	3177138		Wiring Harness		Appelez-nous	-
26	4159465		Screw, (2)		Appelez-nous	-
27	3178555		Insulator Sleeve		Appelez-nous	-
