01 - Grill Parts


02 - Base Parts


03 - Drawer Parts


04 - Internal Warming Drawer Parts


05 - Burners, Grates, And Lights Parts


06 - Side Burner Parts


07 - Optional Parts

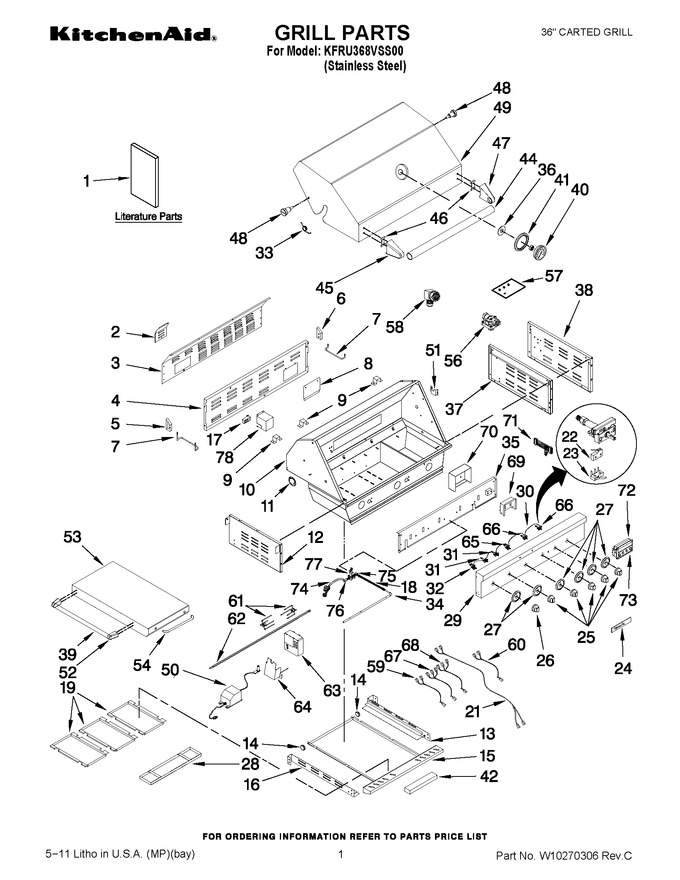

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175731		Use & Care Guide		Appelez-nous	-
2	W10244182		Cover, Rear		Appelez-nous	-
3	W10247016		Panel, Rear		Appelez-nous	-
4	W10247019		Panel, Access		Appelez-nous	-
5	W10247108		Bracket, Panel (left)		Appelez-nous	-
6	W10247107		Bracket, Panel (right)		Appelez-nous	-
7	W10247109		Bracket, Warming Rack		Appelez-nous	-
8	W10128637		Cover, Access Panel		Appelez-nous	-
9	W10244338		Clip, Wire		Appelez-nous	-
10	N/P		Not Serviced		Appelez-nous	-
11	W10247110		Hole, Plug		Appelez-nous	-
12	W10244959		Panel, Side Left		Appelez-nous	-
13	W10244962		Bracket, Grease Tray (right)		Appelez-nous	-
14	W10128655		Roller, Drip Tray				$ 63.78
15	W10247033		Drip Tray Assy (includes Rollers)		Appelez-nous	-
16	W10244965		Bracket, Grease Tray (left)		Appelez-nous	-
17	N/P		Not Serviced Eparately - (w10291259 Load Cell Kit & Processor)		Appelez-nous	-
18	W10244195		Flex Tube, Manifold		Appelez-nous	-
19	W10244963		Tray, Grease		Appelez-nous	-
21	W10138685		Harness, Wire Light		Appelez-nous	-
22	W10246888		Switch, Ignitor		Appelez-nous	-
23	W10303682		Switch, Valve Sensor		Appelez-nous	-
24	W10285657		Nameplate		Appelez-nous	-
25	W10285660		Knob, Main Burner		Appelez-nous	-
26	W10134822		Knob, Rear Burner		Appelez-nous	-
27	W10128756		Bezel, Knob		Appelez-nous	-
28	W10244964		Tray, Grease		Appelez-nous	-
29	W10247026		Panel, Control		Appelez-nous	-
30	W10137903		Harness, Wire Control		Appelez-nous	-
31	WPW10244954		Valve, Main Brnr   (Replaces: W10244954)				$ 311.24
32	WPW10244951		Valve, Rear Brnr   (Replaces: W10244951)				$ 299.91
33	W10246962		Spring, Hood		Appelez-nous	-
34	W10247031		Manifold		Appelez-nous	-
35	W10247032		Baffle, Front		Appelez-nous	-
36	W10140257		Washer, Flat		Appelez-nous	-
37	W10244341		Side Panel, Right		Appelez-nous	-
38	W10244340		Panel, Outer (rt)		Appelez-nous	-
39	W10128660		Handle, Shelf		Appelez-nous	-
40	W10128777		Thermometer				$ 62.56
41	W10128779		Bezel, Thermometer		Appelez-nous	-
42	W10247023		Panel, Grease Tray		Appelez-nous	-
44	W10133877		Handle, Hood		Appelez-nous	-
45	W10128785		Endcap, Handle (left)		Appelez-nous	-
46	W10128786		Spacer, Handle		Appelez-nous	-
47	W10128787		Endcap, Handle (right)		Appelez-nous	-
48	W10128788		Hinge, Lid				$ 12.14
49	W10246964		Hood		Appelez-nous	-
50	WPW10247115		Transformer, Rotisserie Motor   (Replaces: W10247115)				$ 188.98
51	W10247106		Bracket, Spit		Appelez-nous	-
52	W10128659		Bracket, Handle		Appelez-nous	-
53	W10136946		Shelf, Side (lf)		Appelez-nous	-
54	W10136956		Bar, Tool		Appelez-nous	-
56	WPW10132702		Regulator, Ng   (Replaces: W10246989)				$ 322.11
57	W10247038		Kit, Orifice Ng		Appelez-nous	-
58	W10246809		Connector (brass)		Appelez-nous	-
59	W10304337		Harness, Power		Appelez-nous	-
60	W10304338		Harness, Power		Appelez-nous	-
61	W10247150		Fork, Spit		Appelez-nous	-
62	W10247180		Rod, Spit		Appelez-nous	-
63	W10167017		Motor, Rotisserie		Appelez-nous	-
64	W10247113		Bracket, Rot. Mtr.		Appelez-nous	-
65	W10244953		Valve, Sear Burner		Appelez-nous	-
66	W10244949		Valve, Side Burner		Appelez-nous	-
67	W10304339		Harness, Display		Appelez-nous	-
68	W10304340		Harness, Display		Appelez-nous	-
69	W10244955		Box, Display		Appelez-nous	-
70	W10244956		Box, Ui Inner		Appelez-nous	-
71	W10247028		Wire, Display		Appelez-nous	-
72	WPW10244945		Display, Ui   (Replaces: W10244945)				$ 346.19
73	W10244946		Button, Display		Appelez-nous	-
74	W10247196		Regulator, Lp		Appelez-nous	-
75	W10244337		Valve, Flange		Appelez-nous	-
76	W10244333		Connector, Brass		Appelez-nous	-
77	WPW10247149		Valve, Safety   (Replaces: W10247149)				$ 226.49
78	W10244336		Box, Insulator		Appelez-nous	-
