SELECT A DIAGRAM

01 - Grill Parts

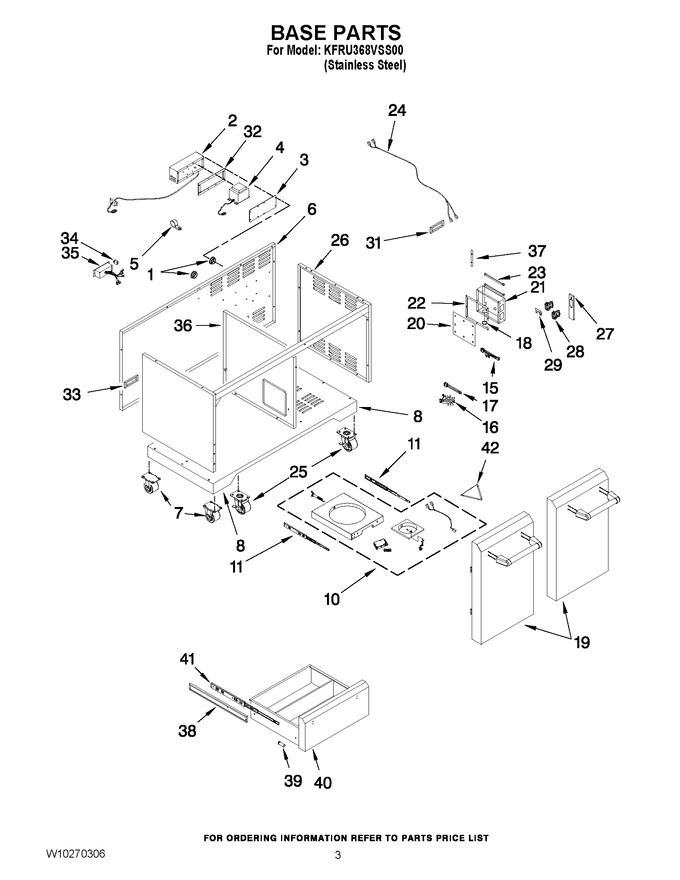

02 - Base Parts


03 - Drawer Parts


04 - Internal Warming Drawer Parts


05 - Burners, Grates, And Lights Parts


06 - Side Burner Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10128666		Ring, Rubber		Appelez-nous	-
2	W10246630		Box,transformer		Appelez-nous	-
3	W10246632		Cover,transformr Box		Appelez-nous	-
4	W10303827		Transformer		Appelez-nous	-
5	7111P002-60		Clamp, Wire   (Replaces: W10128670)		Appelez-nous	-
6	W10137896		Panel, Rear		Appelez-nous	-
7	W10128672		Caster		Appelez-nous	-
8	W10247035		Panel, Bottom		Appelez-nous	-
10	W10291259		Load Cell Kit And Processor		Appelez-nous	-
11	W10357500		Slide, Tank Tray		Appelez-nous	-
15	W10247039		Wire, Safety		Appelez-nous	-
16	W10304350		Wire, Dc Power		Appelez-nous	-
17	W10246874		Wire, Load Cell		Appelez-nous	-
18	W10246877		Ring, Rubber		Appelez-nous	-
19	W10247037		Drawer, Tank		Appelez-nous	-
20	W10246878		Cover, Box		Appelez-nous	-
21	W10303964		Insulator, Box		Appelez-nous	-
22	W10246885		Washer,waterproof		Appelez-nous	-
23	W10246886		Bracket, Box		Appelez-nous	-
24	W10247040		Wire, Ac Power		Appelez-nous	-
25	W10128705		Caster, W/brake		Appelez-nous	-
26	W10137686		Panel, Side Assy		Appelez-nous	-
27	W10246879		Cover, Battery Box		Appelez-nous	-
28	W10246880		Box, Battery		Appelez-nous	-
29	W10246882		Stop, Box		Appelez-nous	-
31	W10304351		Washer,waterproof		Appelez-nous	-
32	W10303814		Washer,waterproof		Appelez-nous	-
33	W10246627		Washer, Outlet		Appelez-nous	-
34	W10246628		Breaker, Circuit		Appelez-nous	-
35	W10246629		Outlet, Male		Appelez-nous	-
36	W10247034		Partition, Cart		Appelez-nous	-
37	W10244192		Washer, Shelf		Appelez-nous	-
38	W10137885		Bracket (left)		Appelez-nous	-
38	W10137889		Bracket (right)		Appelez-nous	-
39	W10137886		Plug, Door		Appelez-nous	-
40	W10246803		Drawer, Top		Appelez-nous	-
41	W10357501		Slide, Drawer		Appelez-nous	-
42	W10137892		Guard, Tank Tray (left)		Appelez-nous	-
42	W10247036		Guard, Tank Tray (right)		Appelez-nous	-
