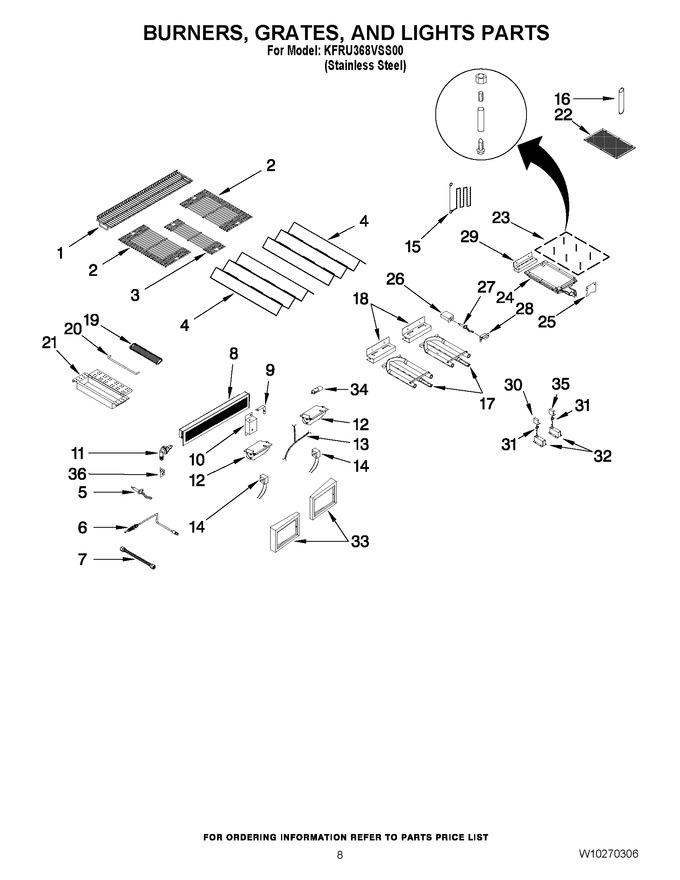

05 - Burners, Grates, And Lights Parts
06 - Side Burner Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10133859 | Rack, Warming |
|
- | |||||
| 2 | WPW10244714 | Rack, Large (Replaces: W10244714) |
|
$ 109.77 | |||||
| 3 | W10244176 | Rack, Small |
|
- | |||||
| 4 | W10244180 | Plate, Sear |
|
- | |||||
| 5 | W10298673 | Ignitor,hot Rear Burner |
|
- | |||||
| 6 | W10128622 | Thermocouple, Rear Burner |
|
- | |||||
| 7 | W10128623 | Flex Tube, Rear Burner |
|
- | |||||
| 8 | W10133864 | Burner, Rear |
|
$ 249.71 | |||||
| 9 | W10244186 | Bracket, Rear Thermocouple |
|
- | |||||
| 10 | W10244184 | Cover, Rear Thermocouple |
|
- | |||||
| 11 | W10246966 | Orifice, Rear Burner |
|
- | |||||
| 12 | W10140242 | Light, Grill |
|
- | |||||
| 13 | W10137085 | Light, Grill(set) |
|
- | |||||
| 14 | W10128631 | Socket, Light |
|
- | |||||
| 15 | W10285882 | Rod, Lighting |
|
- | |||||
| 16 | W10285881 | Bag, Lighting Rod |
|
- | |||||
| 17 | W10128775 | Burner, Main |
|
$ 288.82 | |||||
| 18 | W10244202 | Bracket,main Brnr |
|
$ 27.50 | |||||
| 19 | W10134790 | Grate, Smoke Box |
|
- | |||||
| 20 | W10134791 | Handle, Smoke Box |
|
- | |||||
| 21 | W10244190 | Box, Smoke |
|
- | |||||
| 22 | W10294369 | Screen, Sear Brnr |
|
$ 81.59 | |||||
| 23 | W10303326 | Rod, Kit |
|
$ 86.70 | |||||
| 24 | WPW10134795 | Burner, Sear (Replaces: W10134795) |
|
$ 299.63 | |||||
| 25 | W10247018 | Panel, Sear Brnr |
|
- | |||||
| 26 | W10244200 | Igniter, Gas Coll. |
|
- | |||||
| 27 | W10136434 | Igniter, Sear Brnr |
|
$ 35.71 | |||||
| 28 | W10244199 | Bracket, Sear Ign. |
|
- | |||||
| 29 | W10244201 | Bracket, Sear Brnr |
|
- | |||||
| 30 | W10244196 | Collector,gas Left |
|
- | |||||
| 31 | W10247024 | Ignitor,hot Surfce |
|
- | |||||
| 32 | W10244197 | Bracket, Ignitor Main Burner |
|
- | |||||
| 33 | W10134808 | Light Set |
|
- | |||||
| 34 | 8204670 | Bulb, Light |
|
Immediately | $ 27.23 | ||||
| 35 | W10244198 | Collectr,gas Right |
|
- | |||||
| 36 | W10244185 | Bracket, Ignitor Rear Burner |
|
- |
