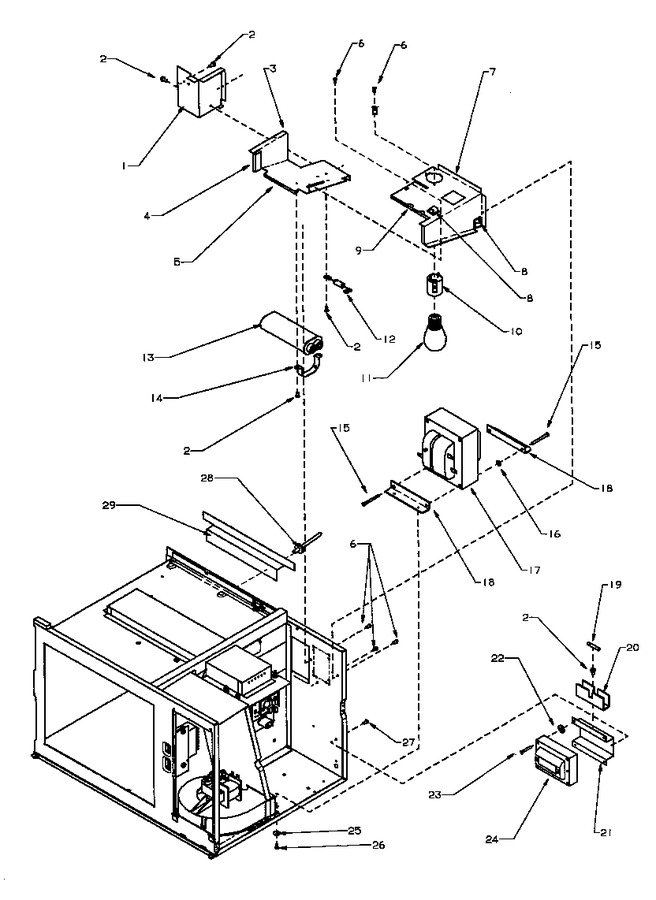

01 - Chassis Assy & Elec Components (con`t)


02 - Chassis Assy & Electrical Components


03 - Control Panel


04 - Door Assy


05 - Miscellaeous Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7772101		Shield, Light		Appelez-nous	-
2	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
3	D7773902		Air Duct, Bottom		Appelez-nous	-
4	B8343707		Gasket		Appelez-nous	-
5	A3030311		Gasket-per Inch		Appelez-nous	-
6	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 7.30
7	D7774002		Air Duct, Top		Appelez-nous	-
8	M0104102		Clip, Cord				$ 8.10
9	A3030301		Gasket (inch)		Appelez-nous	-
10	B8371401		Receptacle, Lamp		Appelez-nous	-
11	A0282805		Lamp 41w		Appelez-nous	-
12	11QBP0527		Rectifier   (Replaces: B8383101)				$ 18.64
13	D8547916		Capacitor		Appelez-nous	-
14	A4055405		Strap, Capacitor		Appelez-nous	-
15	M0254452		Screw		Appelez-nous	-
16	M0272805		Lock Washer		Appelez-nous	-
17	D7498504		Transformer		Appelez-nous	-
18	C8961501		Retainer, Tranformer		Appelez-nous	-
19	14QBP25BAN		Fuse, 25 Amp   (Replaces: M0805201)		Appelez-nous	-
20	10091101		Fuse Holder		Appelez-nous	-
21	C8961702		Bracket		Appelez-nous	-
22	M0272803		Lock Washer		Appelez-nous	-
23	M0218136		Screw		Appelez-nous	-
24	C8798801		Trans Filament		Appelez-nous	-
25	M0270519		Washer		Appelez-nous	-
26	WP3390631		Screw   (Replaces: M0216729)				$ 8.25
27	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
28	A4539625		Pop Rivet		Appelez-nous	-
29	C8962101		Retainer, Cord		Appelez-nous	-
NI	D7726599		Wire Hv Jumper		Appelez-nous	-
NI	D7365129		Jumper Wire		Appelez-nous	-
NI	D7726534		Wire, H.v.		Appelez-nous	-
NI	D7726532		Jumper Wire		Appelez-nous	-
NI	D7726531		Jumper Wire		Appelez-nous	-
NI	10336301		Harness, Oven		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
