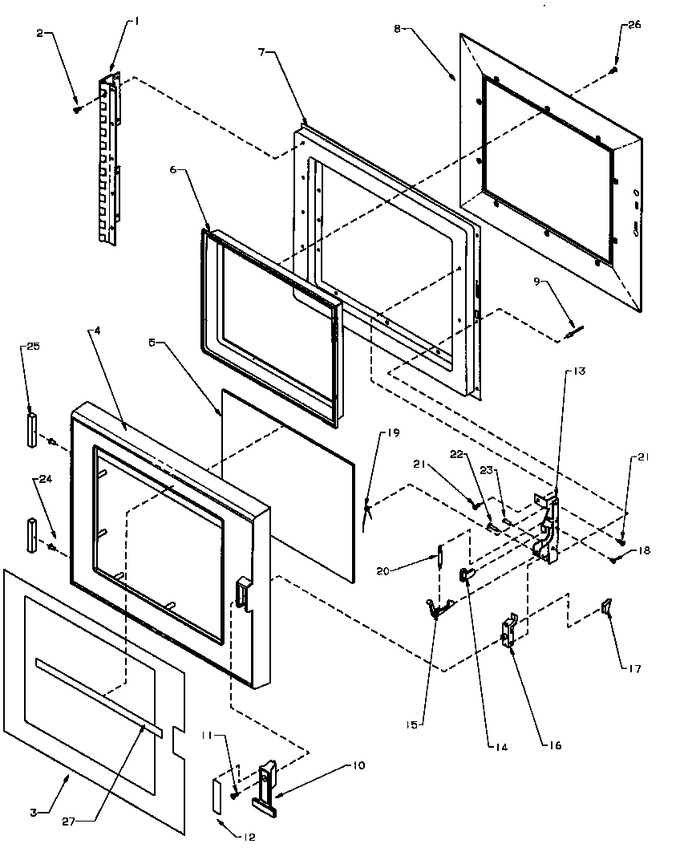

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8961805		Hinge-door		Appelez-nous	-
2	M0234403		Screw		Appelez-nous	-
3	D7738601		Insert Dr		Appelez-nous	-
4	D7730001		Door,outer		Appelez-nous	-
5	C8960401		Window, Outer		Appelez-nous	-
6	D7731103		Retainer, Lens		Appelez-nous	-
7	D7683713		Kit, Weldment-inner Door		Appelez-nous	-
8	D7784901		Inner Door/glass Assy		Appelez-nous	-
9	A4539601		Pop Rivet		Appelez-nous	-
10	D7751101		Handle Front Tee		Appelez-nous	-
11	W11227370		Screw   (Replaces: M0234030)			Immediately	$ 13.42
12	B8381101		Insert, Handle		Appelez-nous	-
13	C8960102		Latch Assy		Appelez-nous	-
14	B8370401		Guide, Door K		Appelez-nous	-
15	C8959901		Latch, Door		Appelez-nous	-
16	D7741701		Latch Assy		Appelez-nous	-
17	C8991301		Pad-latch Assy		Appelez-nous	-
18	M0010214		Rivet A K		Appelez-nous	-
19	B8379601		Spring, Handle		Appelez-nous	-
20	C8893502		Spring, Door Latch		Appelez-nous	-
21	WP59002061		Screwxxx   (Replaces: M0216616)				$ 7.36
22	YM1205111		Latch Assy		Appelez-nous	-
23	B8379201		Pin, Latch		Appelez-nous	-
24	M0231704		Screw, Tf		Appelez-nous	-
25	A3263904		Gasket		Appelez-nous	-
26	489392		Screw-``y``drive Headxxx   (Replaces: M0237618)				$ 12.62
27	C8962451		Thinplate, Door		Appelez-nous	-
